N2LOK Agrigento Entrance Set - Flat Knob

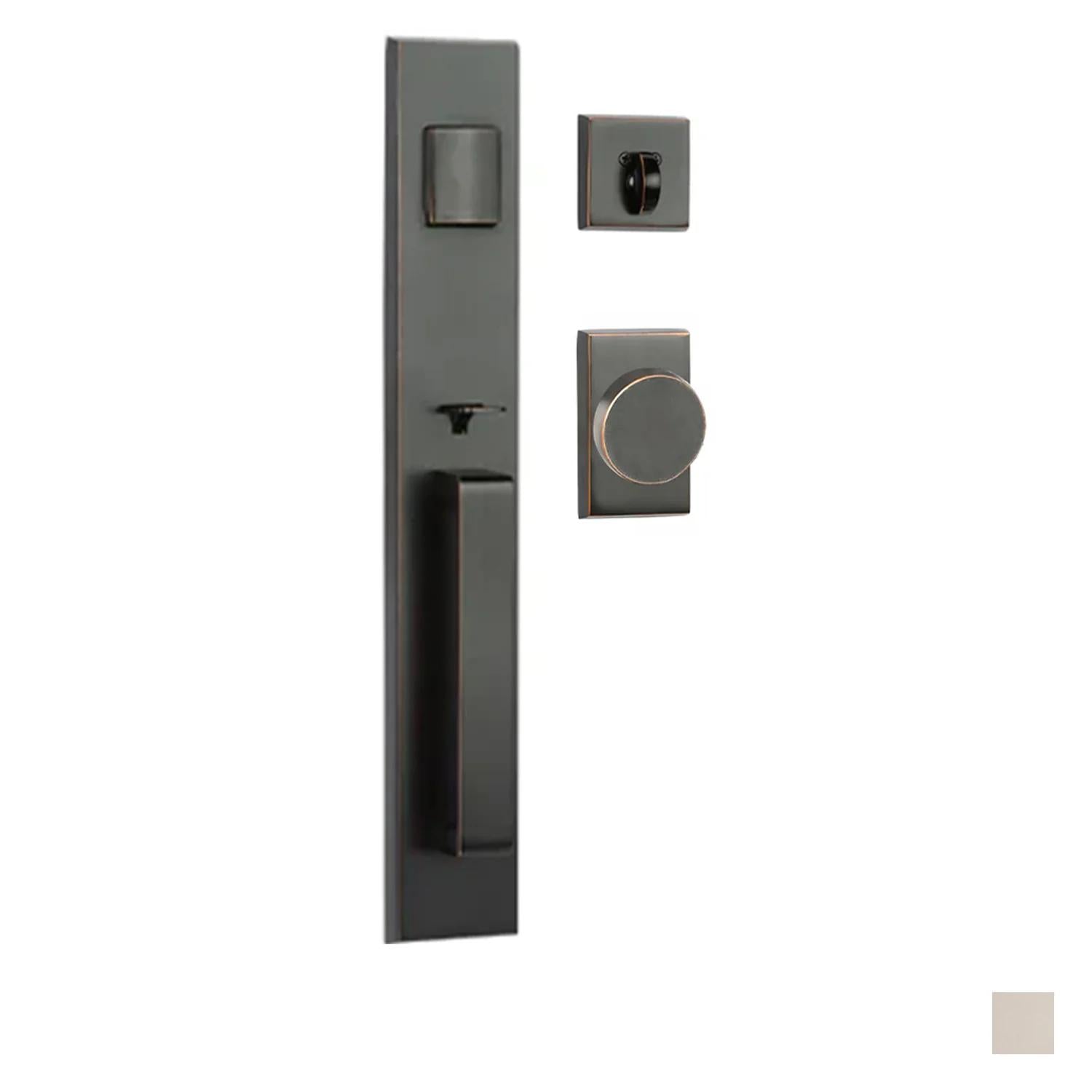

Agrigento Entry S/C w/Flat Knob VB BP in Venetian Bronze

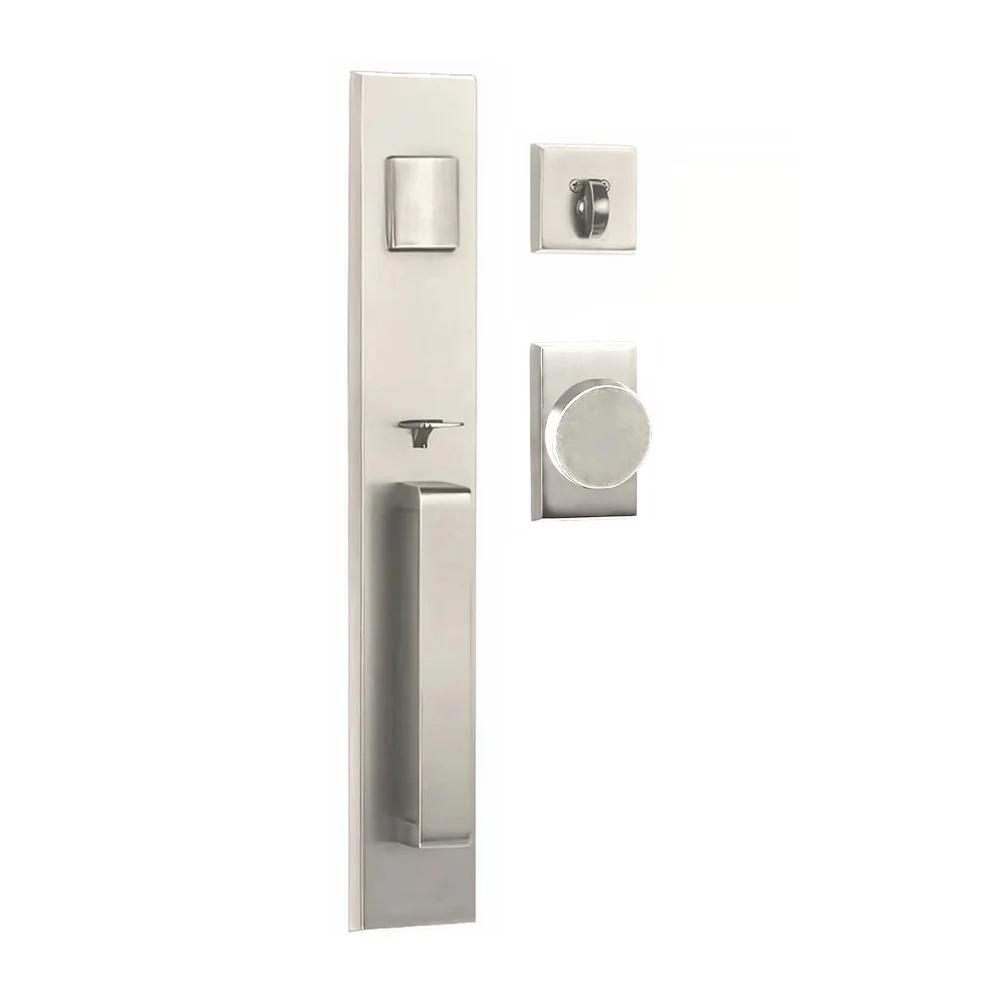

Agrigento Handleset S/C Flat Mushroom Knob DSN BP in Satin Nickel

N2LOK Agrigento Entrance Set - Flat Knob

Finish: Venetian Bronze
$792.99 $891.00
Stock availability: Available
Dispatch: Approximately 1 week.
By N2LOK Hardware
SKU: EHN28712.AO.FKVBBP
Description

Features:

  • 3 identically cut keys supplied with each entry handle suite
  • Standard 60mm spring latch
  • Made of solid forged brass substrate for enduring style & strength
  • Supplied with “straight” internal lever or a egg knob/flat knob in place of the lever
  • 6-pin solid brass cylinder with the popular C4 keyway for more security
  • Note levers needed to be Handed
  • Suitable for door thickness 35-45mm
  • 50mm & 70mm Extension kit available upon request

    • Specifications:

  • BackPlate Height: 480mm
  • Backplate Width: 75mm
  • Plate Projection: 14mm
  • Handle Projection: 40mm
  • Knob Plate Height: 105mm
  • Knob Projection: 65mm
  • Thumb Turn Projection: 33.5mm
  • Door Thickness: 45mm - 55mm
    •
    Technical Information

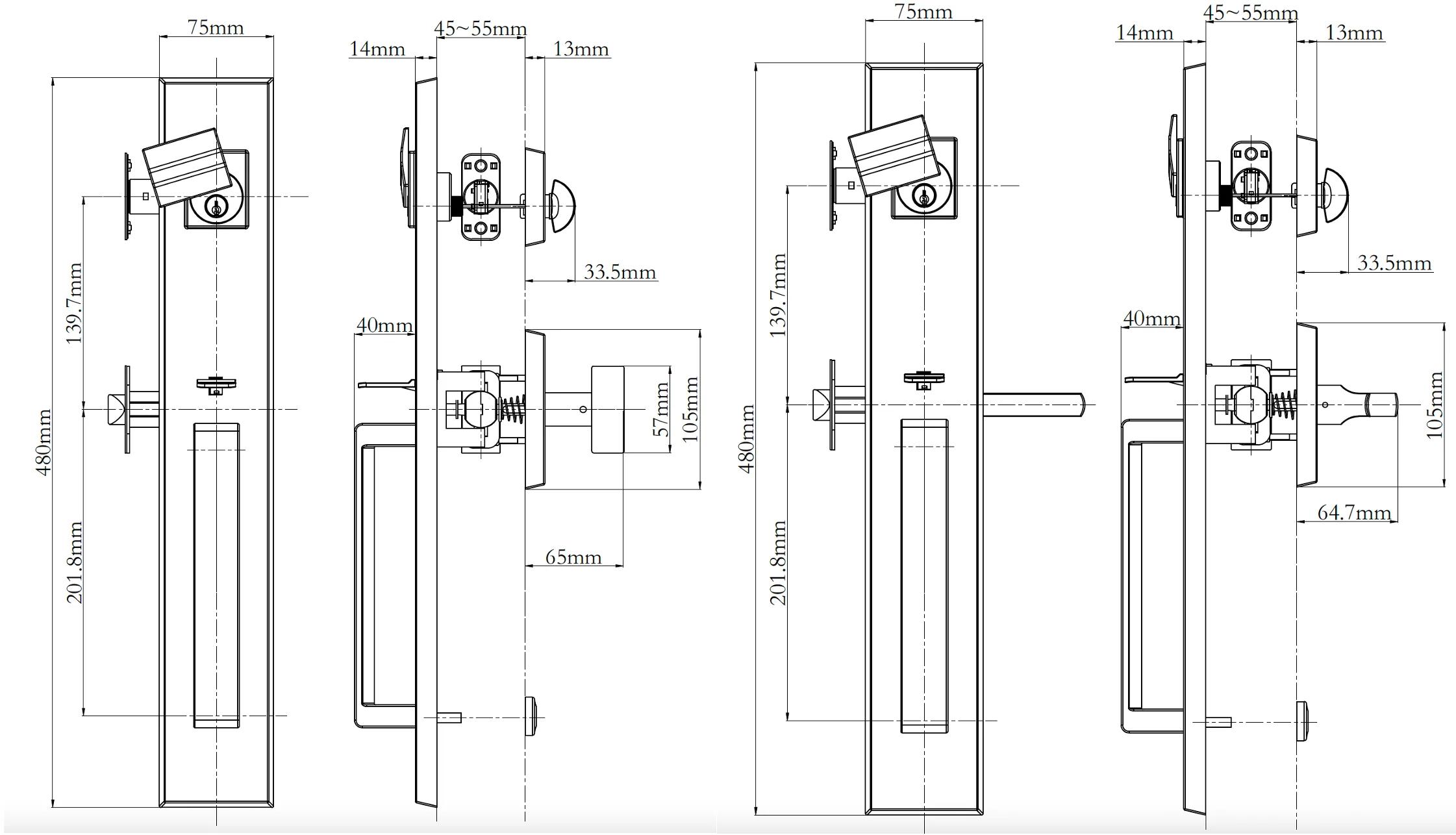

    Techinical Drawing
    View details
