N2LOK Etna Entrance Set - Egg Knob

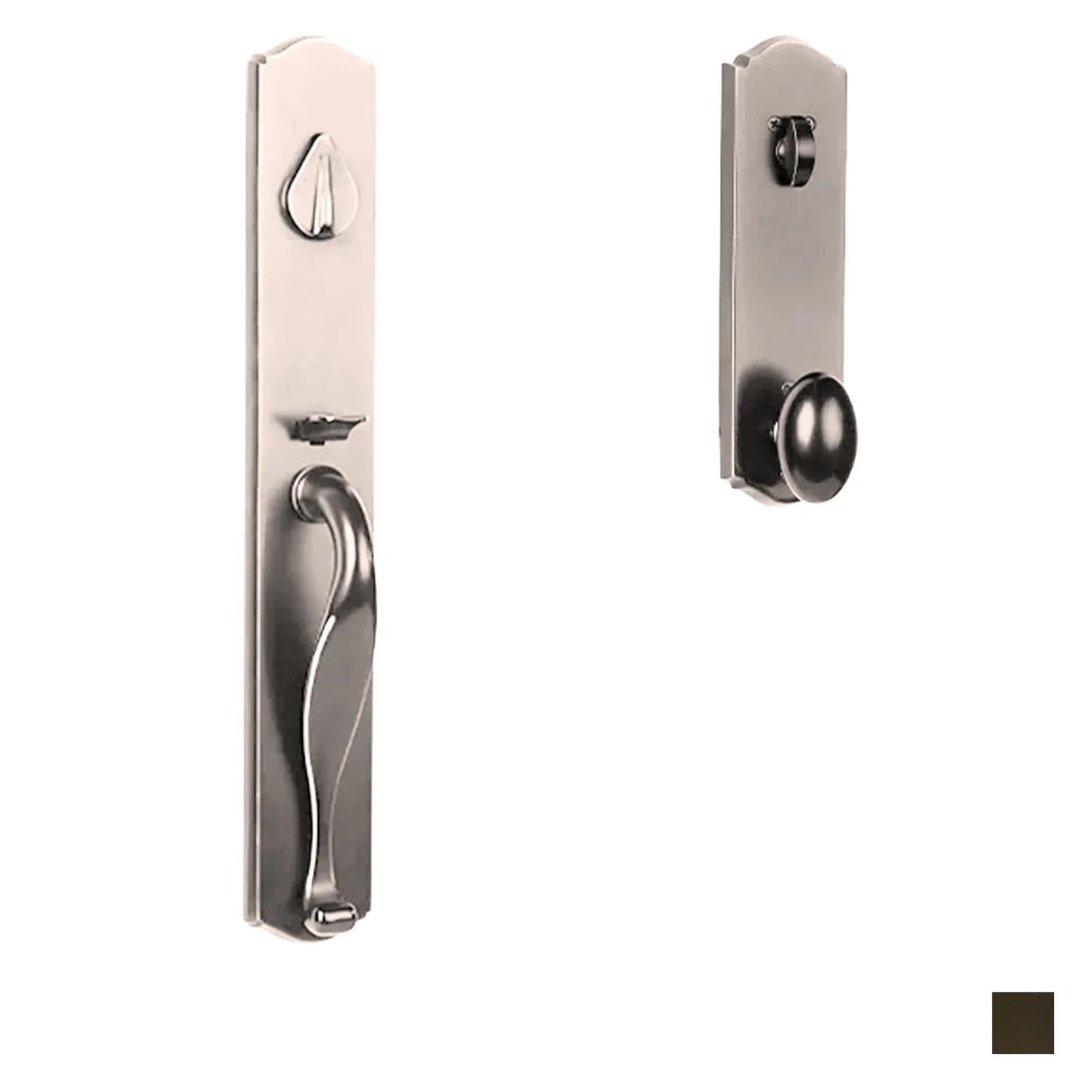

Etna Handleset S/C Egg Knob DSN BP in Satin Nickel
Etna Entry S/C w/Egg Knob VB BP in Venetian Bronze

N2LOK Etna Entrance Set - Egg Knob

Finish: Satin Nickel
$792.99 $891.00
Stock availability: Available
Dispatch: Approximately 1 week.
By N2LOK Hardware
SKU: EHN28711.EN.EKDSNBP
Description

Feautres

  • Made of solid forged brass substrate for enduring style & strength
  • Supplied with “wave” internal lever or an egg knob in place of the lever
  • 6 pin solid brass cylinder with the popular C4 keyway for more security
  • 3 identically cut keys supplied with each entry handle suite
  • Adjustable 60mm to 70mm backset on the spring latch & deadbolt latch
  • Fixed 60mm and 70mm backset spring latches (two latches supplied)
  • Note levers needed to be Handed
  • Suitable for door thickness 35-45mm

    • Specifications:

  • Cylinder Projection: 14mm
  • Thumb Turn Projection: 33.5mm
  • Knob Projection: 72.8mm
  • Handle Projection: 78mm
  • Overall Height: 490mm
  • Overall Width: 73mm
  • Door Thickness: 45 to 55mm
  • Backset: 60mm - 70mm Adjustable
    •
    Technical Information

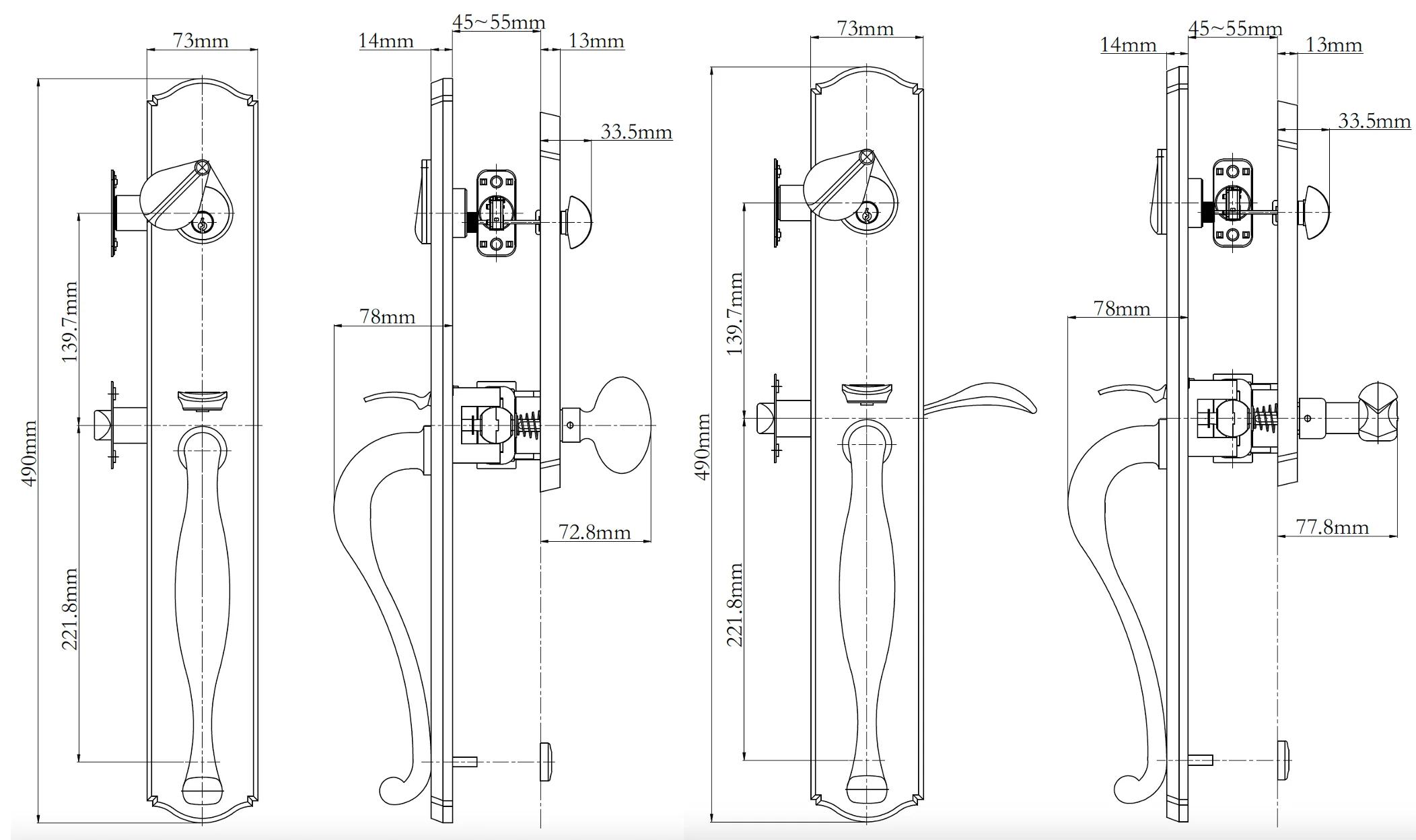

    Techinical Drawing
    View details
