N2LOK Somme Interconnect Entrance Set - Flutto Lever

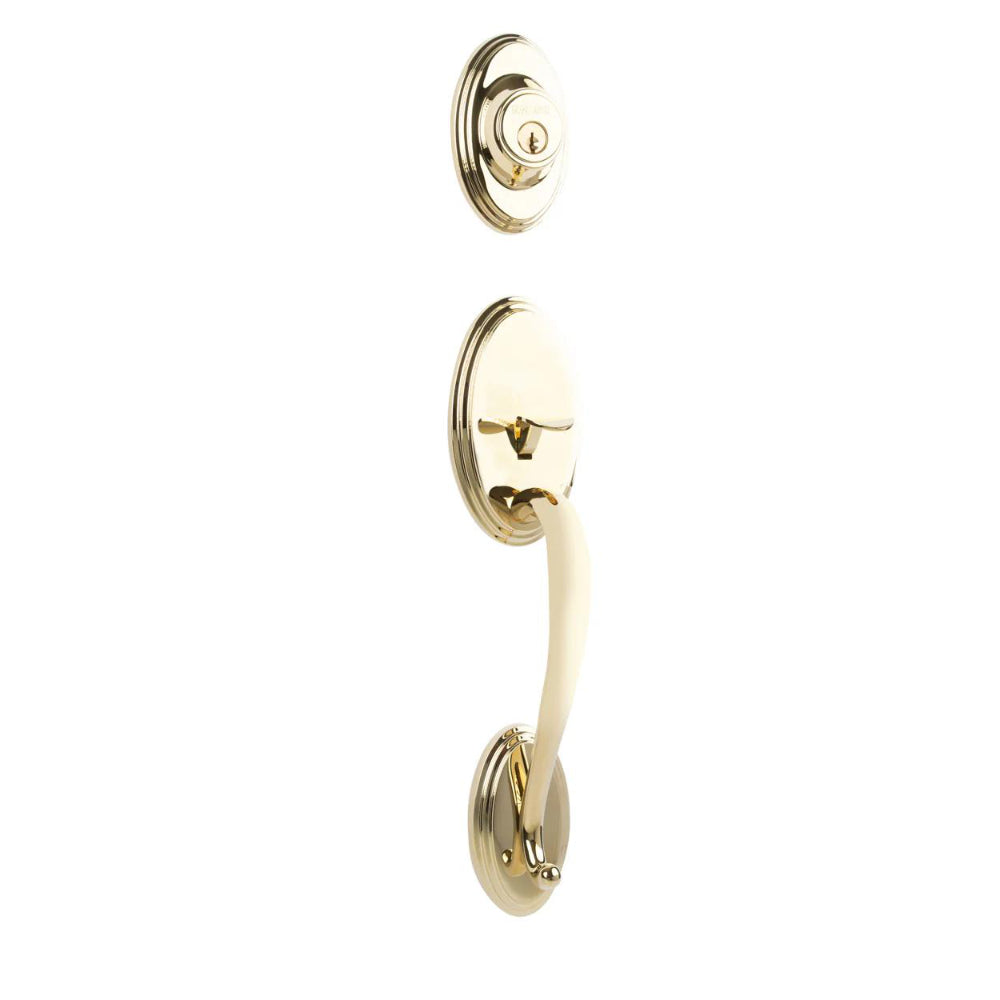

Somme Entry I/C w/Flutto Lever L03 BP in Polished Brass

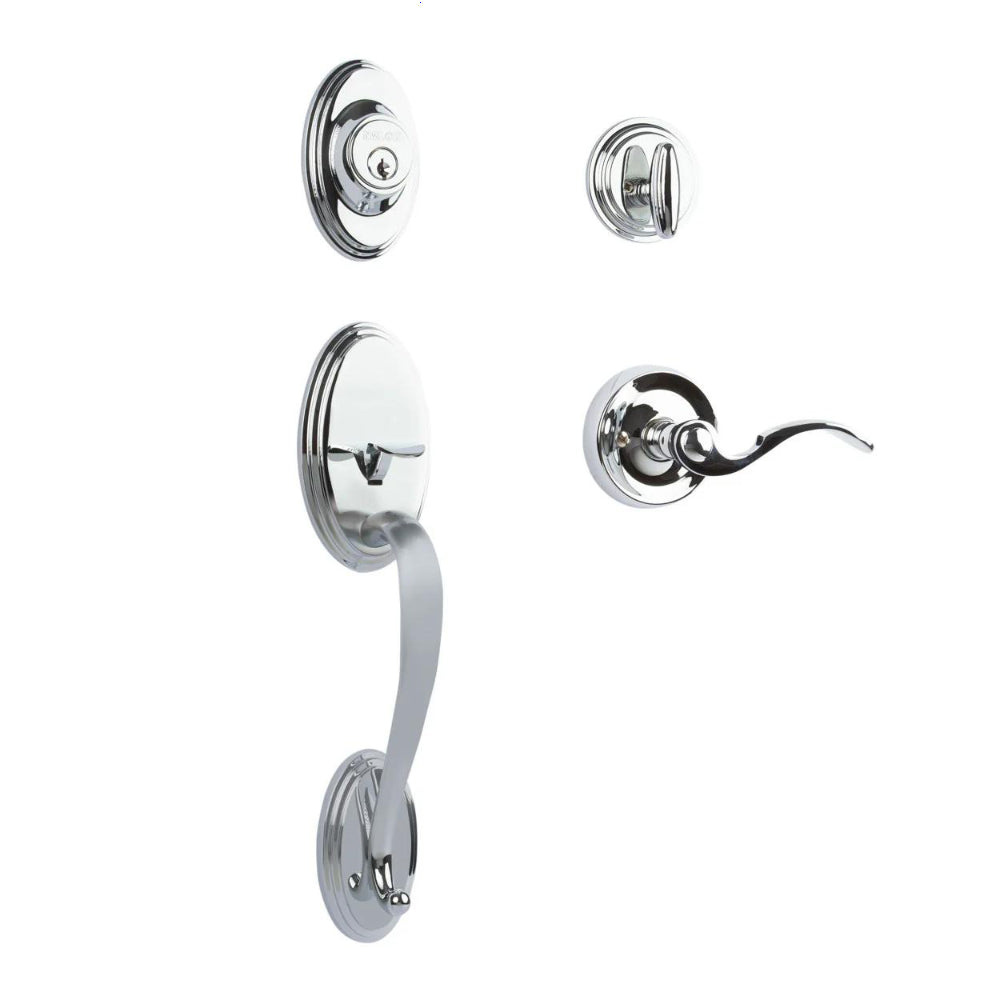

Somme Entry I/C w/Flutto Lever PC BP in Polished Chrome

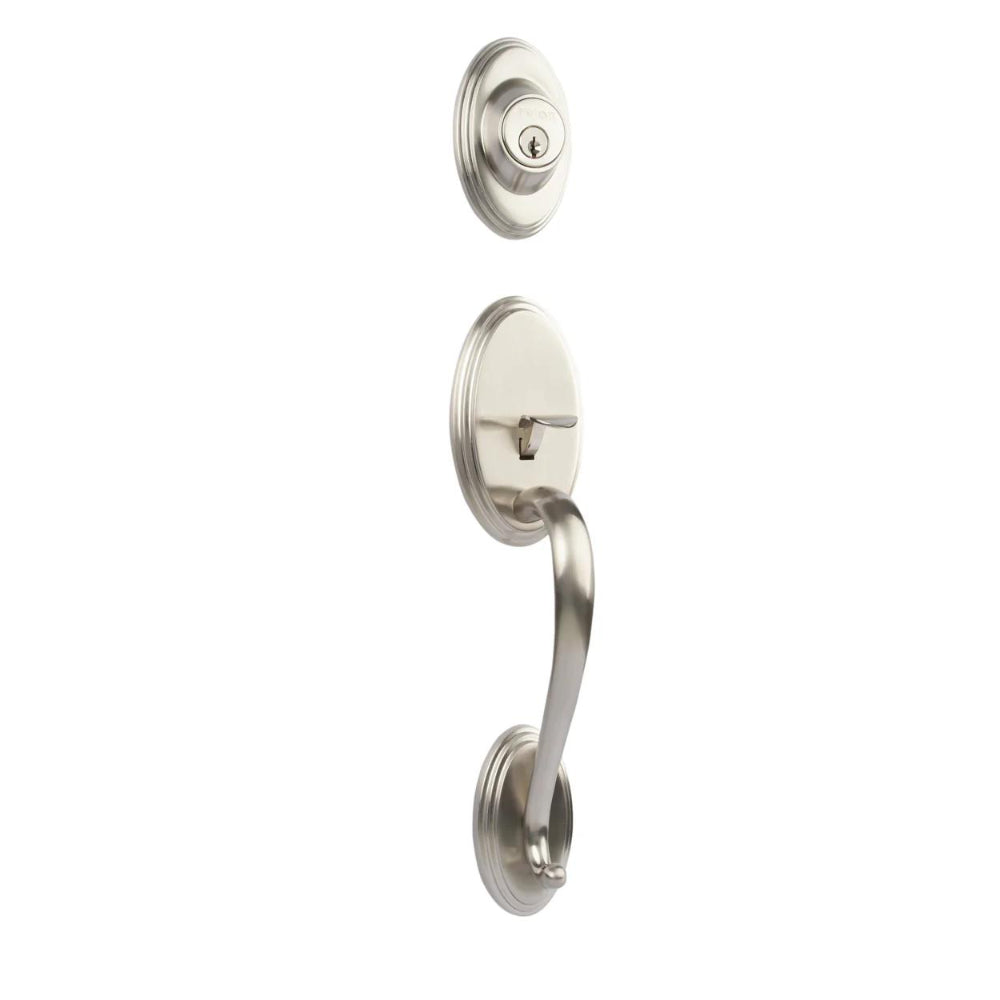

Somme Entry I/C w/Flutto Lever SN BP in Satin Nickel

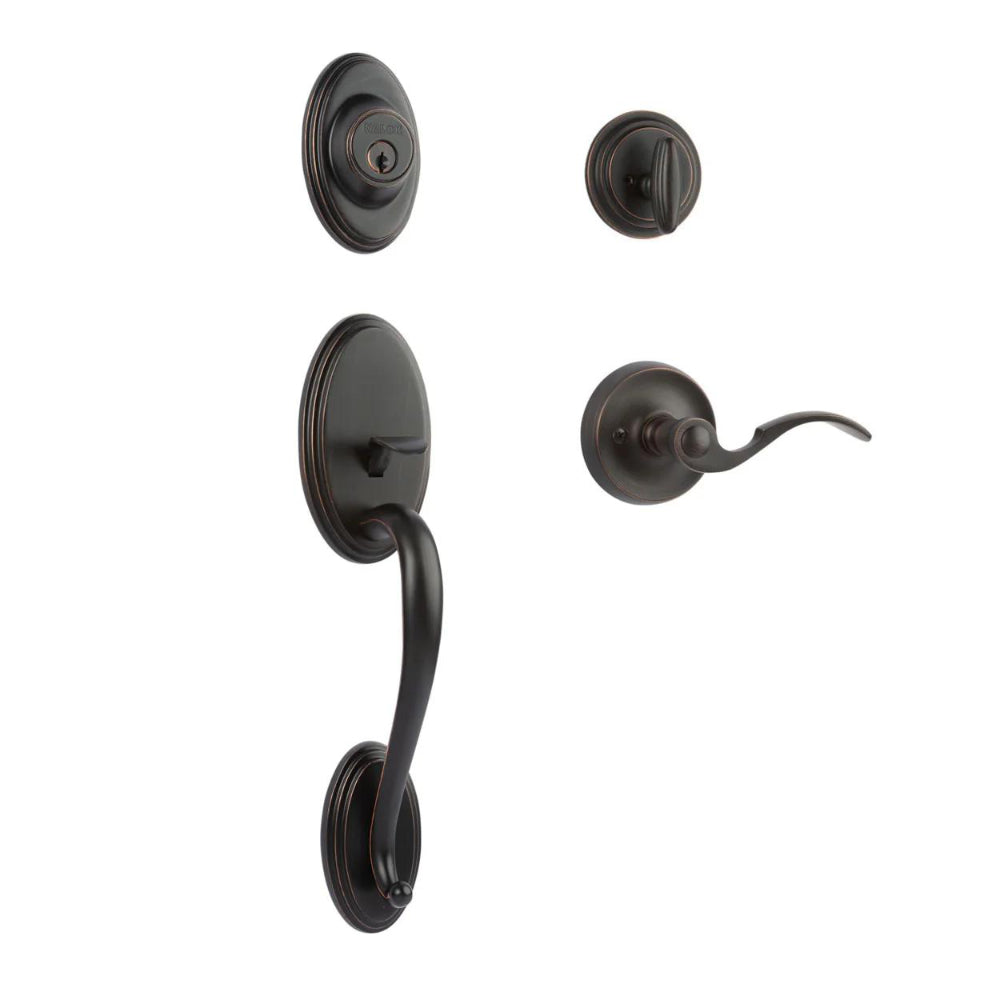

Somme Entry I/C w/Flutto Lever VB BP in Venetian Bronze

N2LOK Somme Interconnect Entrance Set - Flutto Lever

Product Finish: Polished Brass
$435.60 $495.00
By N2LOK Hardware
SKU: EHN2765SOICFLL03BP

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

Explore the very popular N2LOK Somme Entry Set - Interconnecting

Interconnecting Set - Similar to single cylinder function ie. Deadbolt operated by key outside and thumb turn inside. However, interconnect has an added function that makes it different to a standard single cylinder deadbolt. It's added function is a deadbolt and spring latch that retracts simultaneously when the internal lever/knob is turned to open your door. Also features matching long internal plate to match external plate.

Features:

  • Made of solid forged brass substrate for enduring style & strength
  • Supplied standard with the "wave" internal lever
  • The "wave" lever is pictured in both the Venetian Bronze & Polished Chrome images
  • 6 pin solid brass cylinder with the popular C4 keyway for more security
  • 3 identically cut keys supplied with each entry handle suite
  • 60mm backset on the spring latch & deadbolt latch
  • Smart non-handed lever design
  • Suitable for door thickness 35-45mm (Extension kit available upon request)

    • Specifications:

  • Cylinder Height: 104mm
  • Cylinder Width: 66mm
  • Overall Height: 445mm
  • Cylinder Projection: 26mm
  • Handle Width: 73mm
  • Door Thickness: 35 to 45mm
  • Backset: 60mm to 70mm
    • All N2Lok products come with a 7 year mechanical warranty and a 5 year finish warranty (The living finishes: Matte black & Venetian bronze are only a 12 month finish warranty while Satin Brass in not covered by warranty)
    Dispatch Time
    Approximately 1 week.
