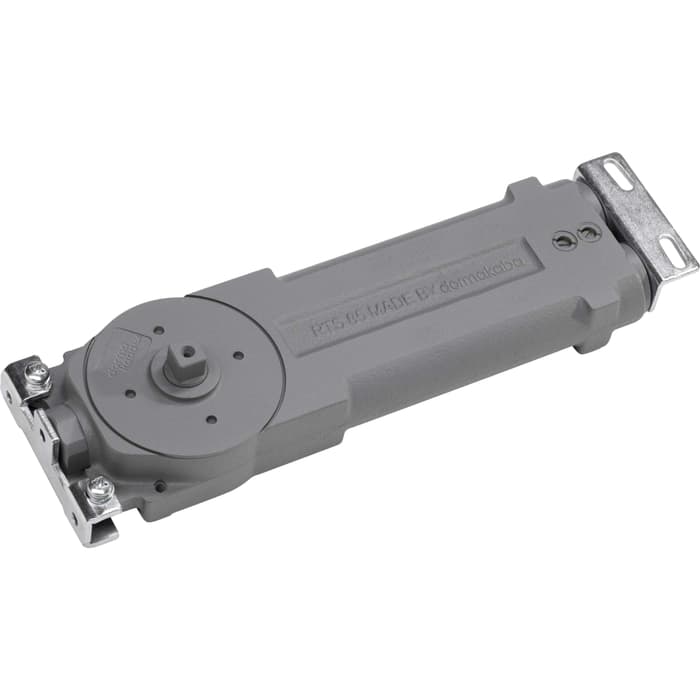

DormaKaba RTS85 EN4 Transom Fixed Power Concealed Door Closer, 90°Hold Open - Extended Spindle

DormaKaba RTS85 EN4 fixed power concealed door closer with 90° hold open, extended spindle, installed on a transom door.

DormaKaba RTS85 EN4 Transom Fixed Power Concealed Door Closer, 90°Hold Open - Extended Spindle

Product Finish: Grey
$681.67
By Dormakaba
SKU: DCDKRTS85EN4-S10mm

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

DormaKaba RTS85 Transom Concealed Door Closer - Extended Spindle

Ideal for shopfitting. For both double and single action doors. Elegant, versatile, practical and quality assured.

The RTS 85 offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. The majority of preparation can be accomplished by the fabricator prior to installation, leaving minimal on-site work.

Closing Force: EN4

Internal and External Doors Up to 1100mm

Max Door Weight 110kgs

Features:

For the trade
  • Just one body for all types of fixing.
  • Low inventory costs and minimal stocking requirement thanks to unit packs for closer body and accessories.
    • For the fabricator
  • Can be used for double action doors, or left and right hand single action doors.
  • Installation and setting adjustment possible before fixing the doorset on site.
  • No floor preparation necessary.
  • Positive “zero” position for double action doors – easy to adjust.
  • Comprehensive range of accessories
    • . For the architect/specifier
  • Aesthetically impressive solution – especially with toughened glass doors.
  • Ideal for shop fitting applications.
    • For the user
  • No cluttering of door or floor appearance.
  • Backcheck to prevent door contact with the frame.
  • Smooth closing with adjustable closing speed

    • Specifications:

    Length: 323mm Width: 90mm Height: 38mm Weight: 4.8kg
    Dispatch Time
    Approximately 1 week.
    Technical Information

    Technical Brochure
    View details
