JNF Flush Hinge For Single Or Double Action Wooden Doors

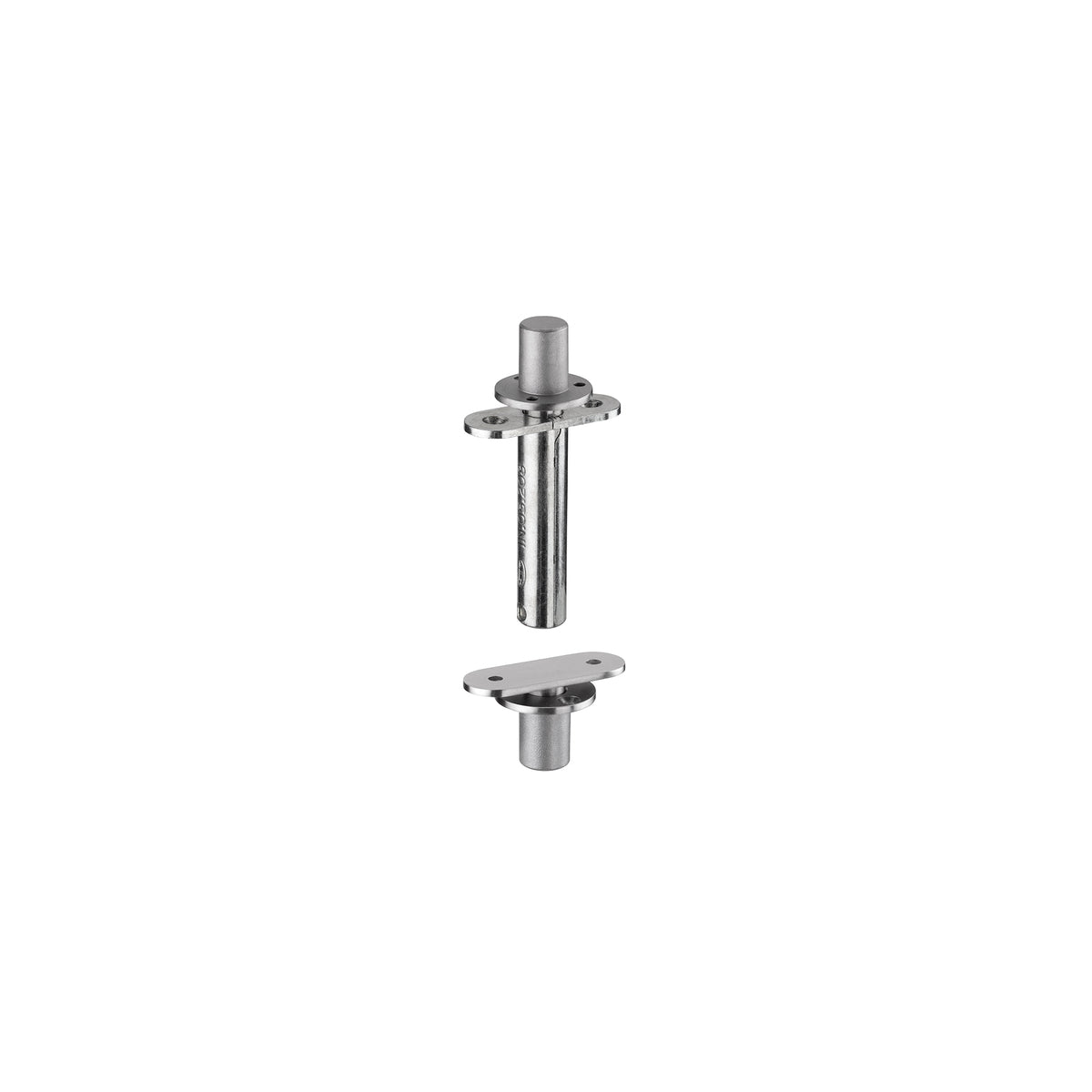

JNF flush hinge for single or double action wooden doors, showing metal hinge with mounting plates and pivot mechanism.

JNF Flush Hinge For Single Or Double Action Wooden Doors

$127.51 $141.68
By JNF
SKU: DCJNF.IN05.208

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

Complete pivot set for single or double action doors. Bottom pivot with ball & Top pivot with lever axle.

Features:

  • Flush hinges do not require mortising (cutting out).
  • It provides a pivot point for the door or lid to swing open and closed.
  • Ideal for small spaces or thin materials where recessing a hinge is impractical
  • Neat Appearance
  • Supplied With Fixings

    • Specifications:

  • Maximum Door Weight: 65kg
  • Door Thickness: 35mm-50mm
  • Material: Stainless Steel
  • Finish: Satin Stainless
  • Bottom pivot with ball
  • Top pivot with lever axle
  • Shaft width 14mm diameter
    •
    Dispatch Time
    Approximately 1 week.
