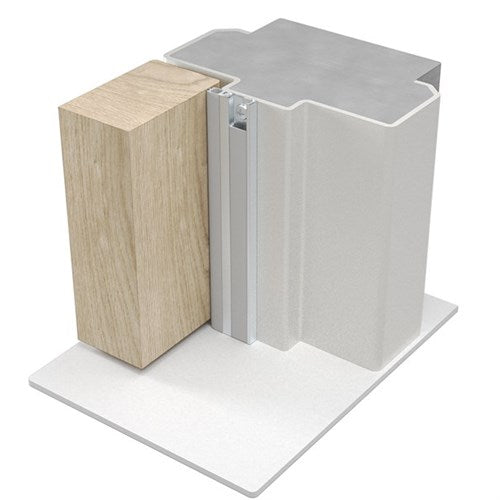

A slim-line, stop mounted compression seal incorporating an anodised aluminium carrier fitted with a fire rated silicone rubber gasket and non-shrink, click-fit cover strip. The seal is fitted to the head and jambs of the door frame to create an effective seal between the frame and the door face.

• A slim-line and unobtrusive acoustic seal that can easily be retrofitted to existing door assemblies.
• Fitted with high performance fire rated silicone rubber gasket.
• Supplied with slotted fixing holes for accurate positioning and easy adjustment.
• Non-shrink, click-fit cover strip conceals the fixing points.
• Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
• Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 39Rw on appropriate rated assemblies.
• Durability: Long term mechanical test, completing 1,000,000 cycles without failure.
