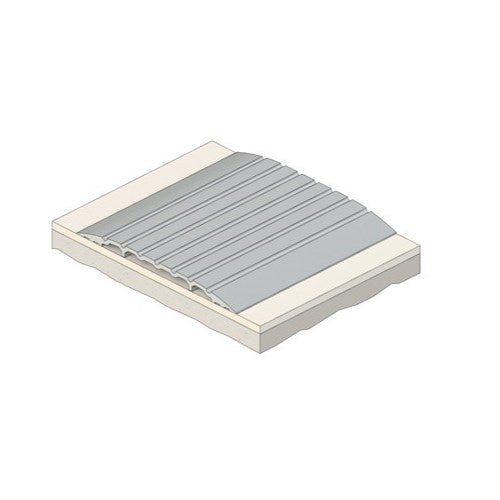

Low profile threshold plates that can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.

• Location:Door sill.
• Finish:Satin clear (silver) or bronze anodised aluminium (25µm).
• Fixing: Screw fix or builders adhesive for concealed fixing (user determined). Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
• Sizes: Available in stock lengths.
• Cert. GVYI.R37913
• Access & Mobility AUS/NZ:NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2. UK/EU: Approved Document M.
• Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
• UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
• FRL & FRR-/240/30 and FD180.
• when used with a BAL rated door bottom seal in accordance with AS 3959.
