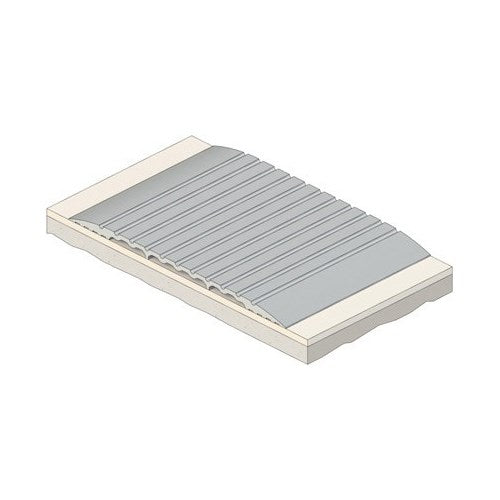

A low profile, extra wide heavy duty threshold plate that can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Ideal for larger style commercial door frames.

• Location: Door sill.
• Finish:Satin clear (silver) anodised aluminium (25µm).
• Fixing:Screw fix or builders adhesive for concealed fixing (user determined). Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
• Sizes:3000mm, 2000mm, 1750mm, 1000mm.
• Cert. GVYI.R37913
• Access & Mobility AUS/NZ:: NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2. UK/EU: Approved Document M.
• Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
• UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
• FRL & FRR-/240/30 and FD180.
• when used with a BAL rated door bottom seal in accordance with AS 3959.
