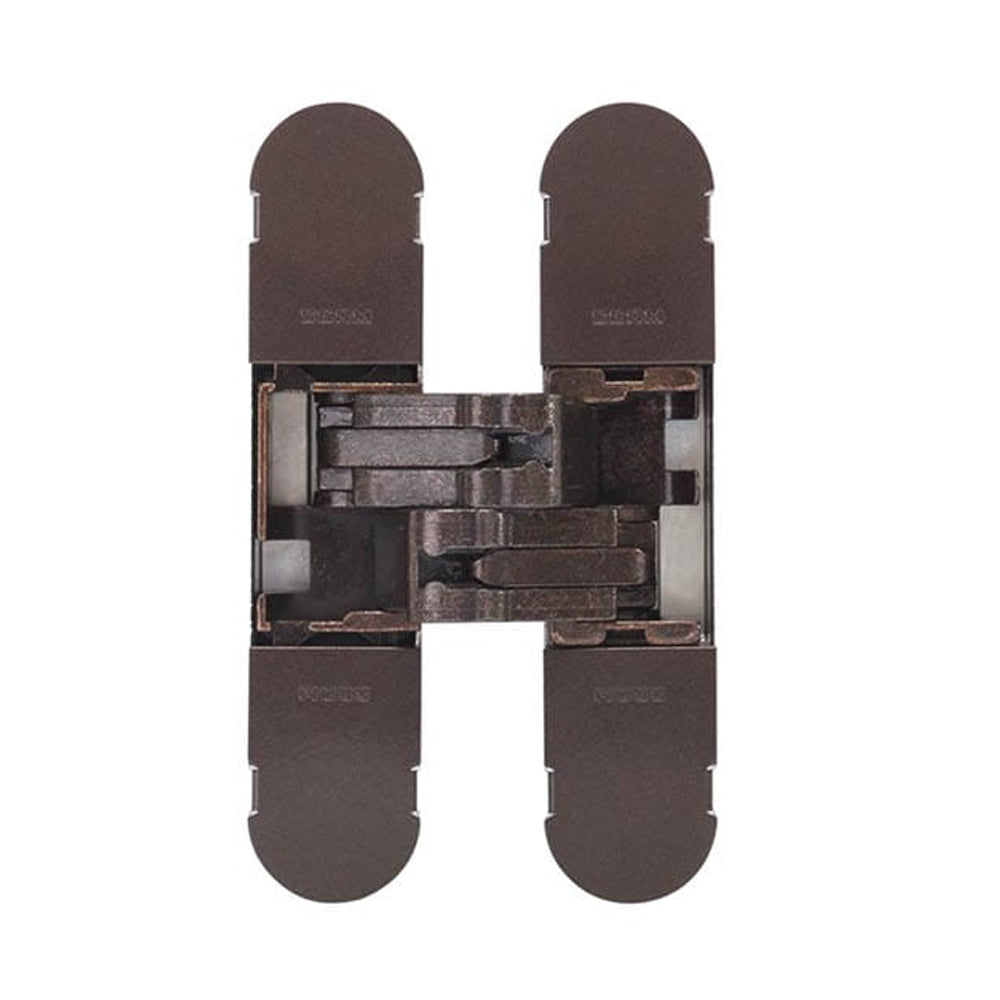

Bellevue CEAM Invisible Fully Concealed 3D Hinge - 44kg

48kg Fully Concealed 3D Hinge: PB in Polished Brass
48kg Fully Concealed 3D Hinge: BLK in Black
48kg Fully Concealed 3D Hinge: BZ in Bronze
48kg Fully Concealed 3D Hinge: NI in Nickel
48kg Fully Concealed 3D Hinge: SI in Silver
48kg Fully Concealed 3D Hinge: WHT in White

Bellevue CEAM Invisible Fully Concealed 3D Hinge - 44kg

Finish: Polished Brass
$59.35 $65.95
By Bellevue Architectural
SKU: BAC1129PB

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

3D Adjustable Concealed Door Hinge - Weight 48kgs

Sold as Single

Features & Specs:

  • Load capacity up to 44 kg @ 900mm wide door
  • Suitable for doors of 28 mm min.thickness
  • Total overall length 100 mm
  • Depth: 18mm )
  • Router template available for easy installation and slot symmetry
  • Available in multiple finishes
  • 100% made in Italy for over 50 years
  • 3D adjusting system S.T.A.R.S.
  • Suitable for internal & external (under cover) locations

    • Load Capacity:

    Load capacity 2 hinges: 25 kg Load capacity 3 hinges: 30 kg Load capacity 3 hinges asymmetrical: 40 kg Load capacity 4 hinges: 44 kg
    Dispatch Time
    Approximately 1 week.
    Technical Information

    BAC1129 Specs

    Bellevue CEAM BAC1129 Weight Guide
    View details
