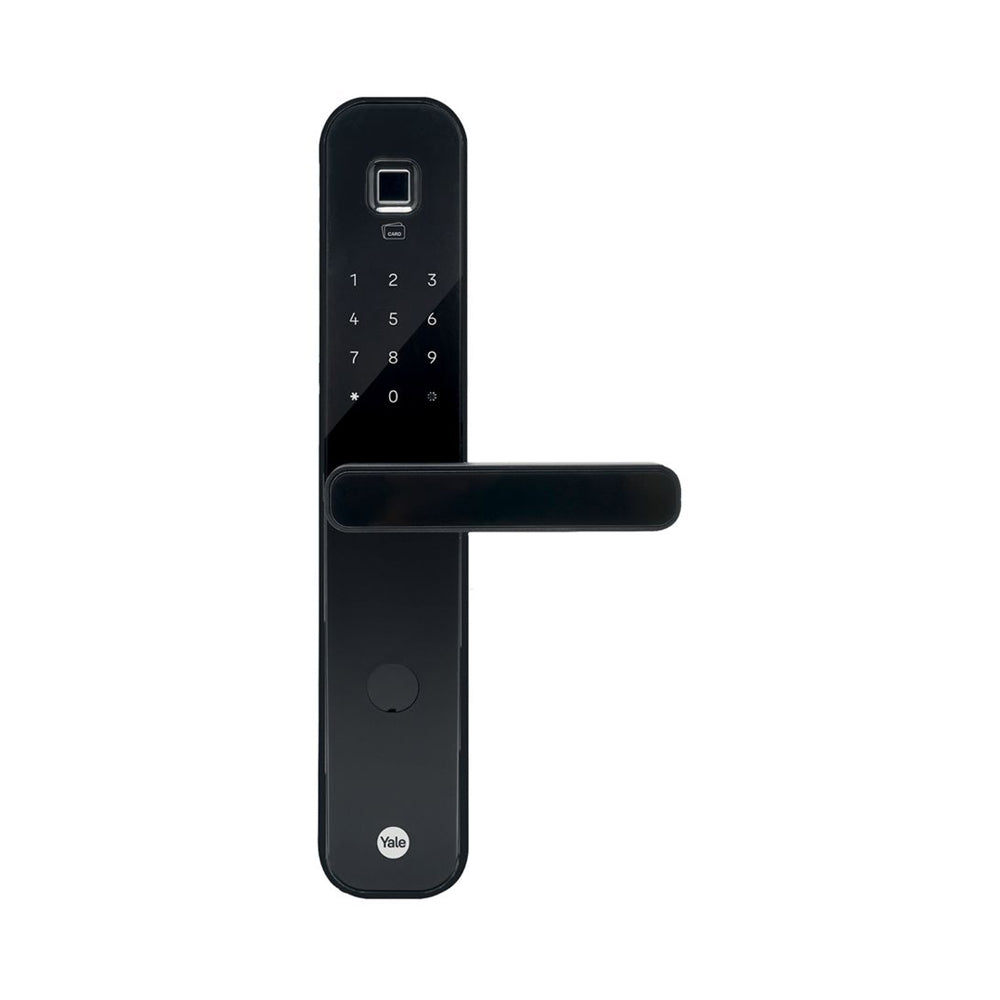

YALE SMART DIGITAL MORTICE LOCK WITH HOME MODULE - 60MM BACKSET

$856.18 $1,007.27

By Yale

SKU: ELYA.YDM7220.60.HK.MBK

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate

Description

With a full size lever handle and large 10 digit keypad the YDM7220 enables to control access in a wide variety of applications.

Create up to 100 Unique PIN codes

Create up to 100 fingerprints

Control through one APP with the YDM series Yale Home module (included)

Suitable for timber doors 40mm to 95mm thick

Mechanical key override

60mm backset mortice lock

BioSecure coating on the lever handle which is formulated using silver ions to inhibit bacteria growth and reduce the risk of secondary infections

4 x AA Alkaline Batteries

9V battery backup

Home automation integration capabilities with Yale Connect Plus Bridge

Lock Type: Mortice lock

Door Thickness: 40-95mm Timber door

Backset: 60mm

RFID: 4 x Contactless Key Tags Included

Fingerprint: Yes, up to 100 registrations

Power: 4 x AA Alkaline batteries

Battery Life on Lock: Approximately 12 months

Low Battery Warning: Yes

Volume Settings: Yes

Operating Temperature: -25 - 70 Degree Celsius

Humidity: 0 - 95%

IP Rating: IPX4

Use: Entry doors. Not for use on doors where the internal escutcheon is exposed to outside elements. Eg: Outdoor gate

Break In/ Tamper Alarm: Yes

Dispatch Time

Approximately 1 week.

Technical Information

YALE SMART DIGITAL MORTICE LOCK WITH HOME MODULE - 60MM BACKSET

Matt Black / Matt Black – Change
