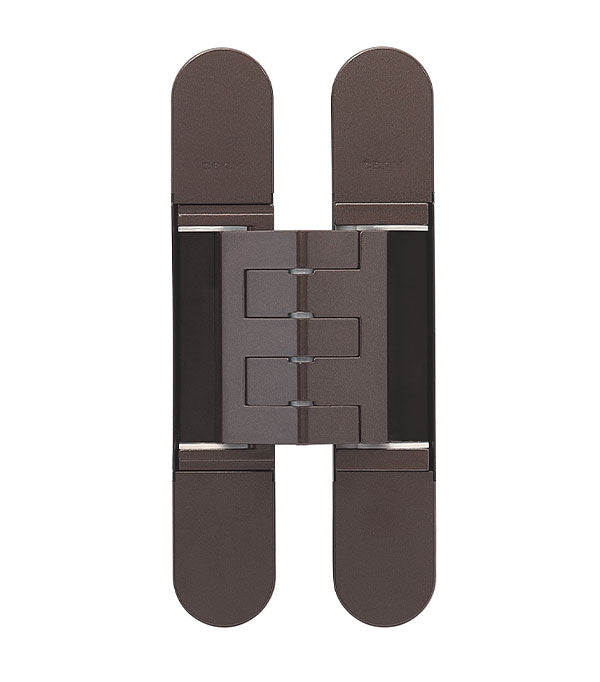

175Kg Fully Concealed 3D Hinge – Bronze in Bronze

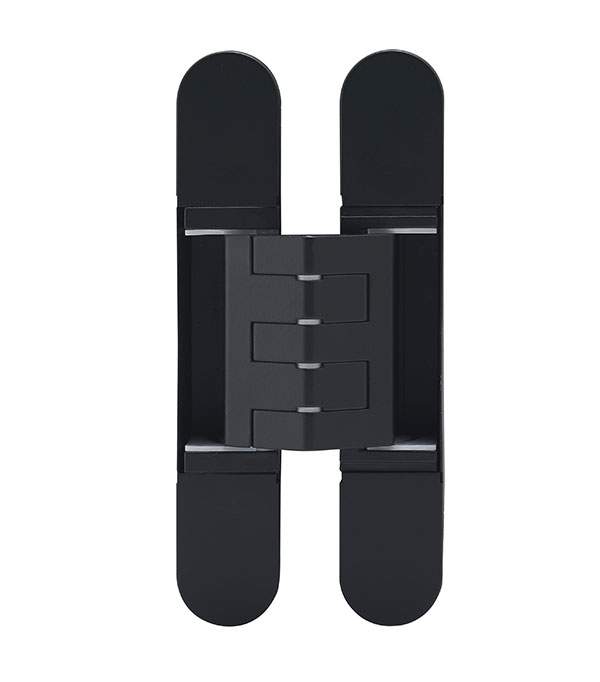

175Kg Fully Concealed 3D Hinge – Black in Black

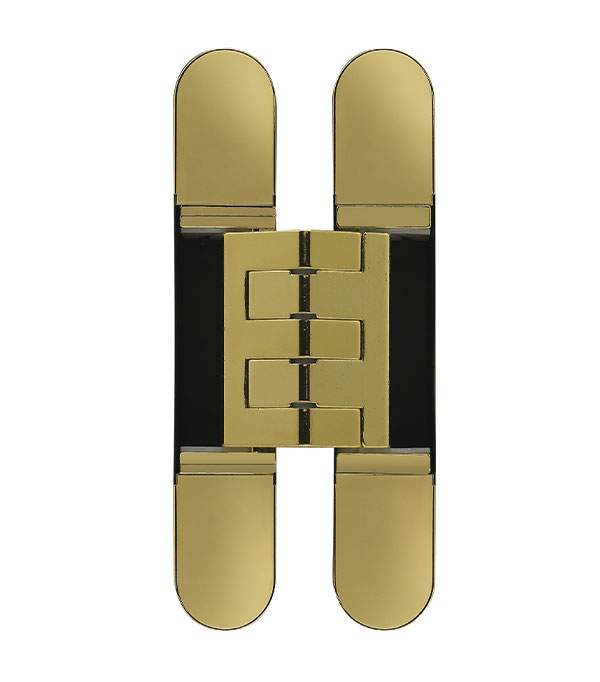

175Kg Fully Concealed 3D Hinge – Polished Brass in Polished Brass

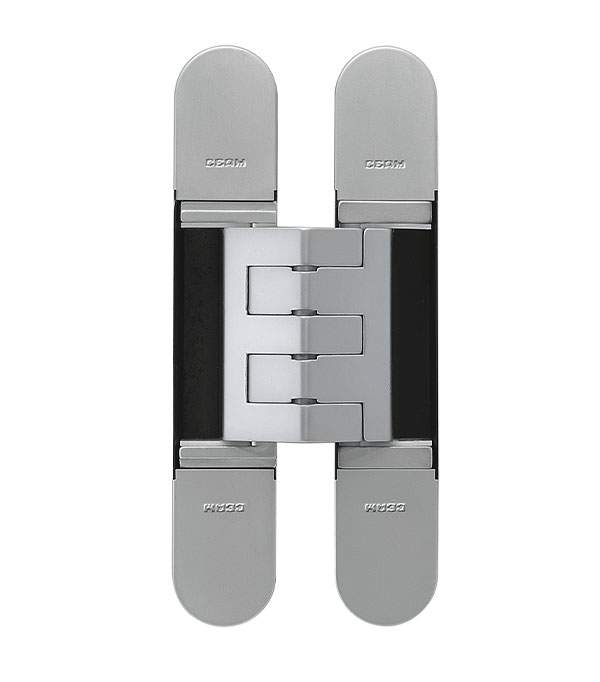

175Kg Fully Concealed 3D Hinge – Polished Chrome in Polished Chrome

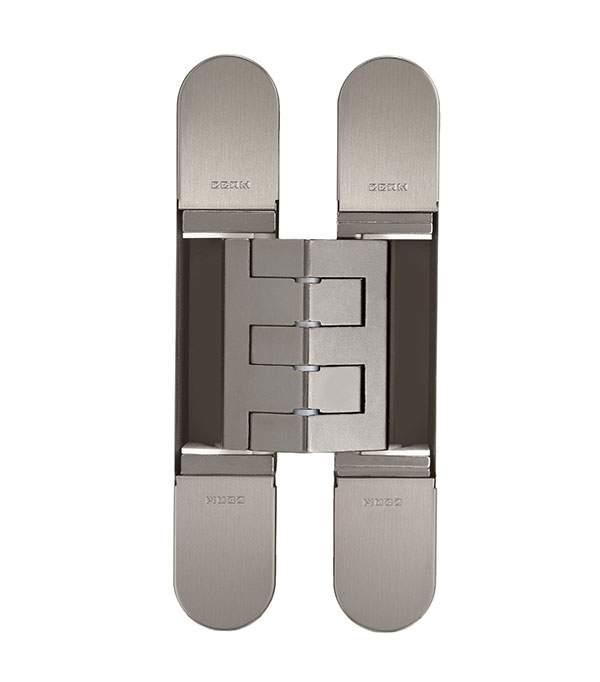

175Kg Fully Concealed 3D Hinge – Satin Nickel in Satin Nickel

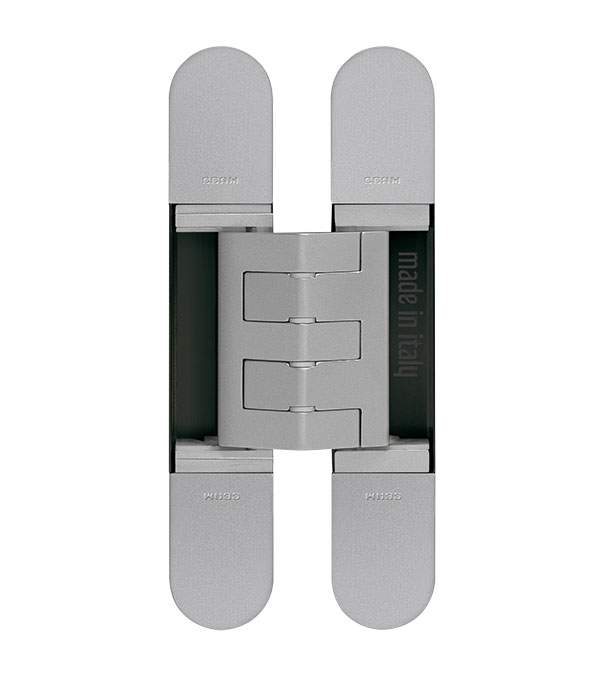

175Kg Fully Concealed 3D Hinge – Silver in Silver

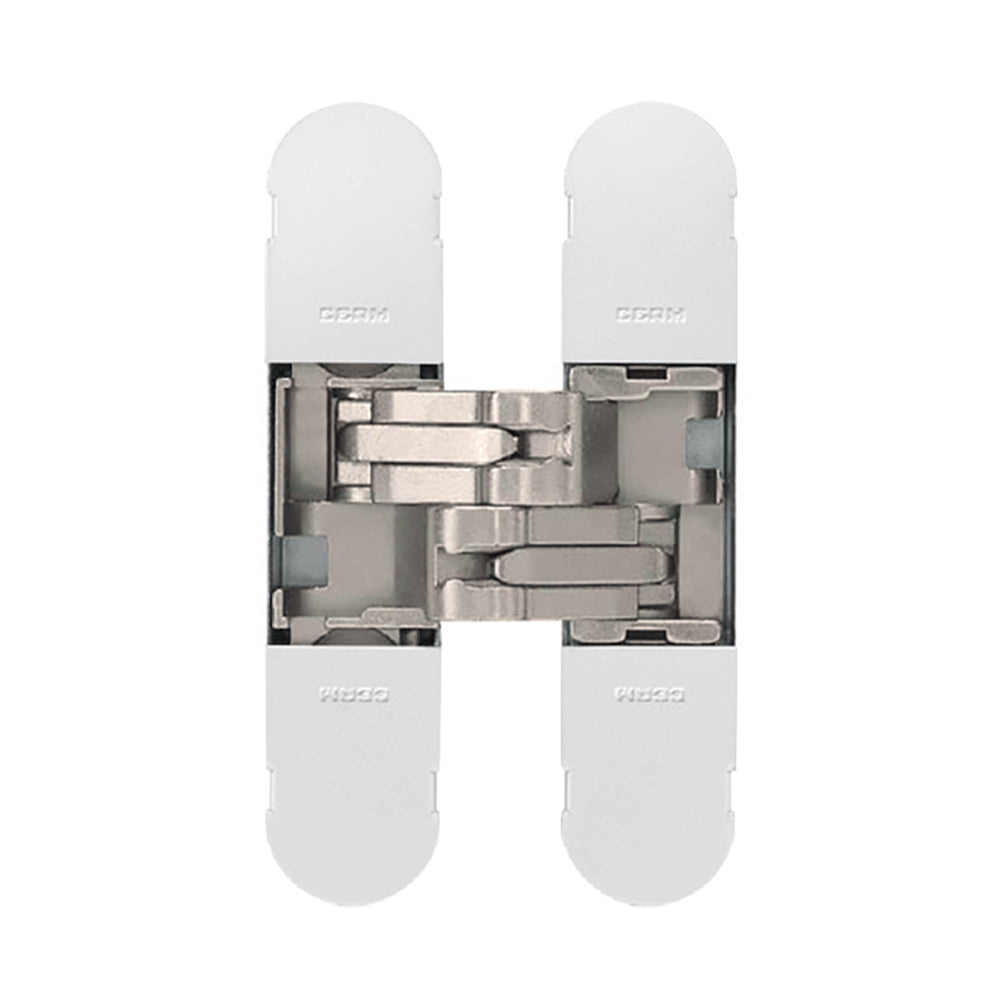

175Kg Fully Concealed 3D Hinge – White in White

Bellevue CEAM Invisible Fully Concealed 3D Hinge - 165kg

Product Finish: Bronze
$197.95
By Bellevue Architectural
SKU: BAC1431BZ

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

3D Adjustable Concealed Door Hinge - Weight 165kg

Sold as Single

Features & Specs:

  • Wide throw designed for cladded doors
  • Load capacity up to 170 kg @ 800mm wide door (subject to door specs, see weight chart)
  • Suitable for doors of 38 mm min.thickness
  • Total overall length 180 mm
  • Narrow timber rebate 29mm
  • Gap when closed 2mm
  • Only 21mm deep
  • 180º working aperature
  • Router template available for easy installation and slot symmetry
  • Available in multiple finishes
  • 100% made in Italy for over 50 years
  • 3D adjusting system S.T.A.R.S.
  • Suitable for internal & external (under cover) locations

    • Load Capacity:

  • 2 hinges: 53g at 900mm wide doors
  • 3 hinges: 73kg at 900mm wide doors
  • 3 hinges asymmetrical: 76kg at 900mm wide doors
  • 4 hinges: 85kg at 900mm wide doors
    •
    Dispatch Time
    Please contact us about the delivery time for this product
    Technical Information
    Sorry there is no spec sheet available for this product
