Bellevue CEAM Invisible Fully Concealed 3D Hinge - 150kg

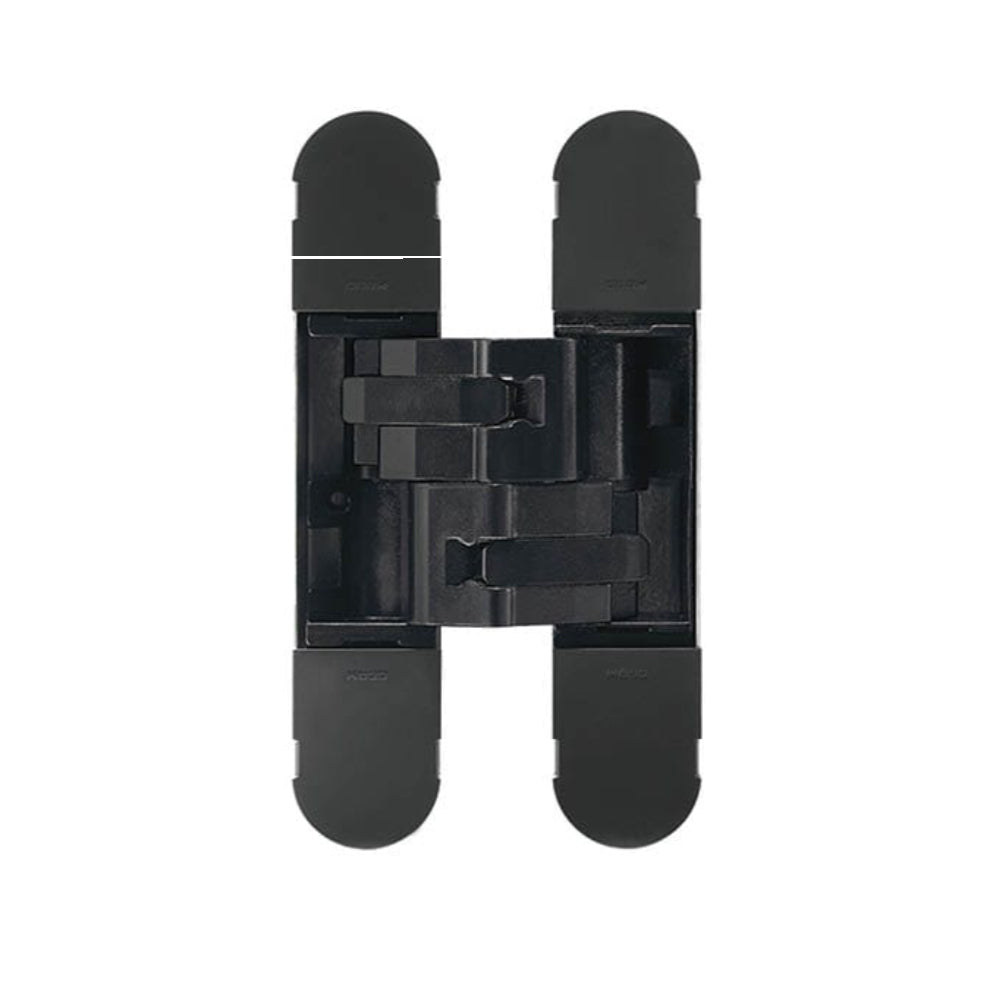

150kg Fully Concealed 3D Hinge: MATT BLACK in Matt Black

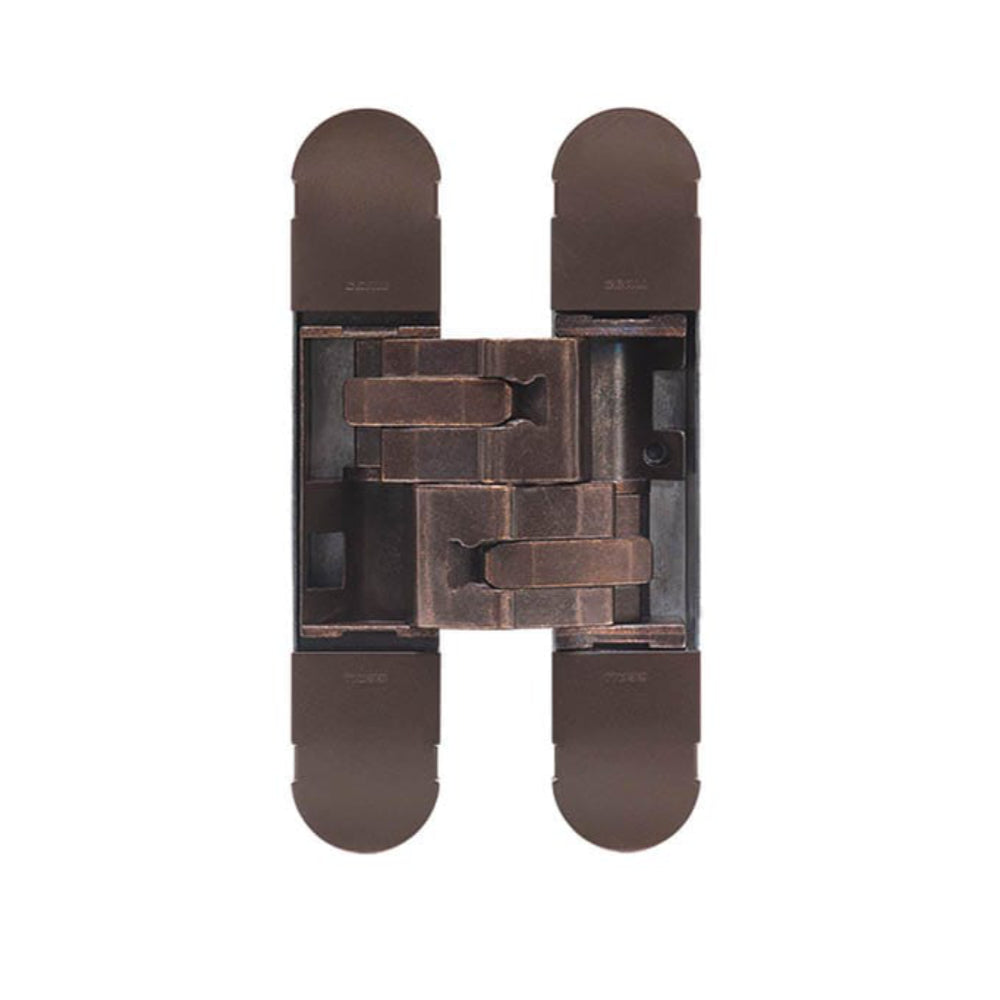

150kg Fully Concealed 3D Hinge: BRONZE in Bronze

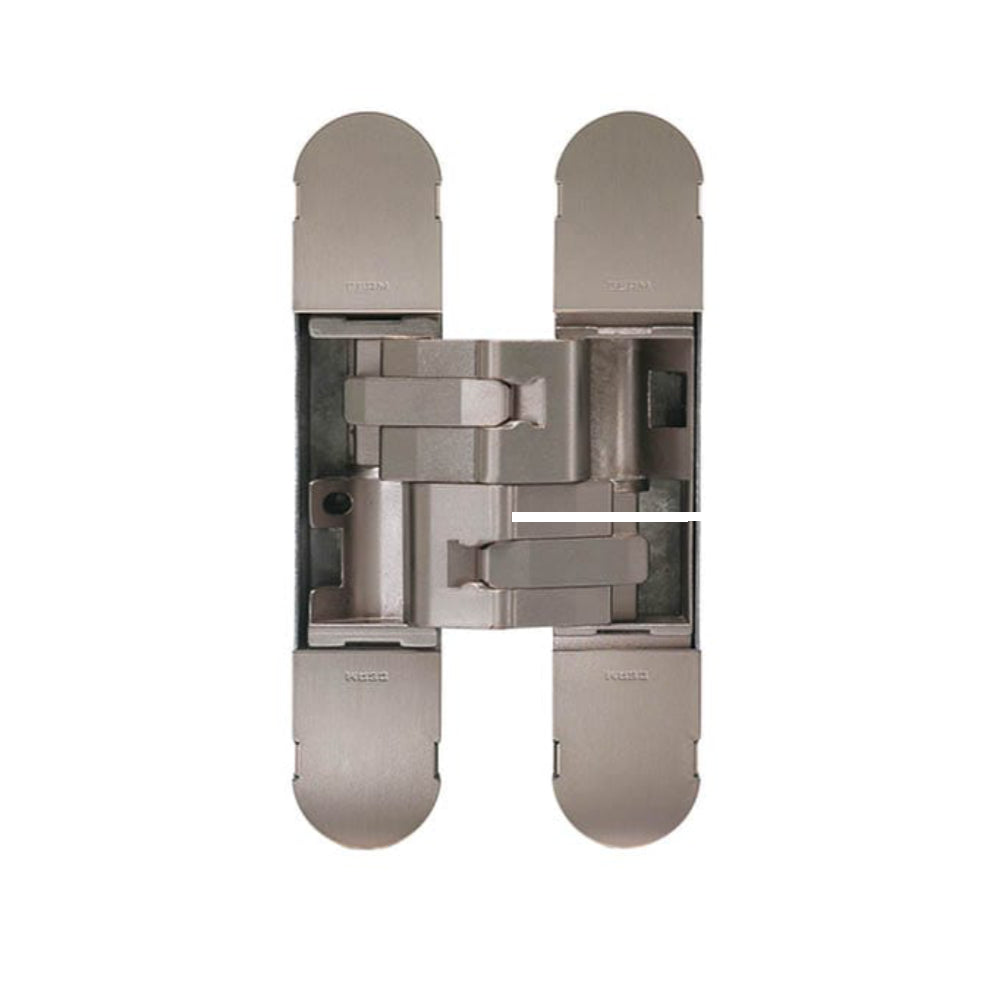

150kg Fully Concealed 3D Hinge: NICKEL in Nickel

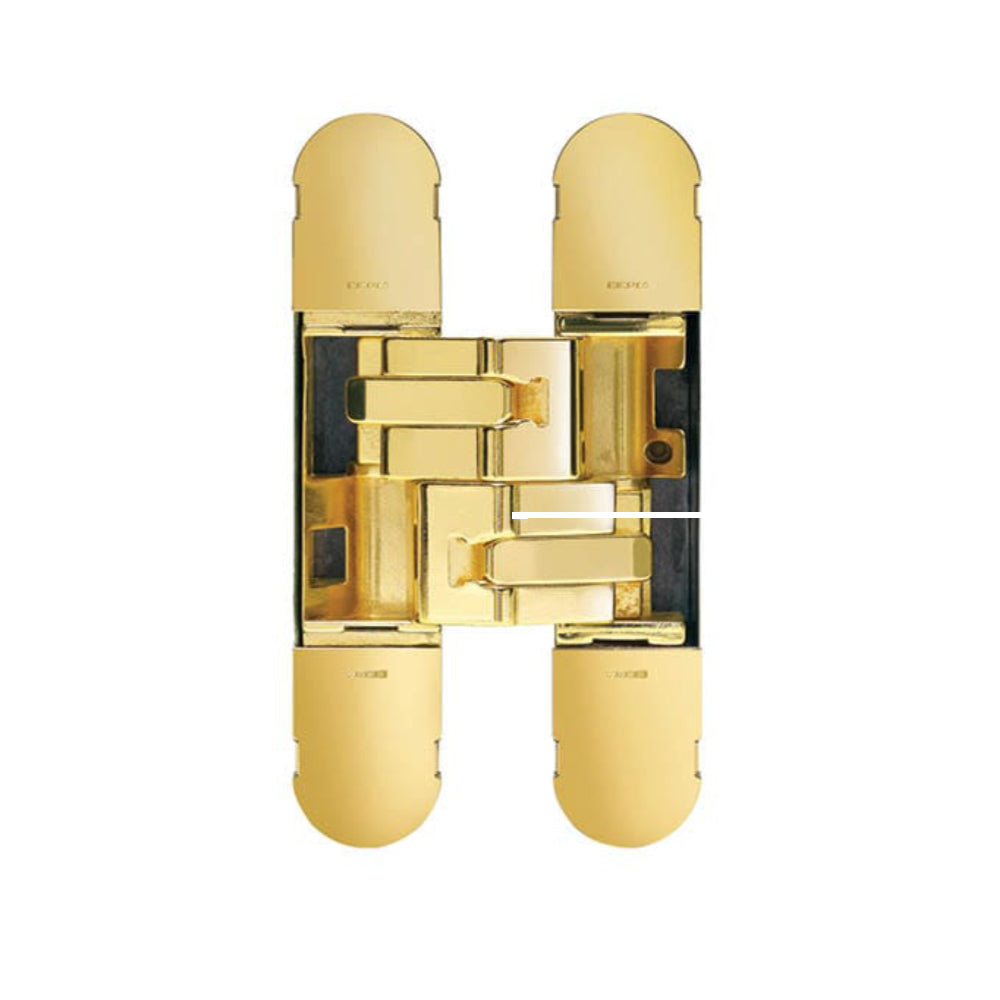

150kg Fully Concealed 3D Hinge: POLISHED BRASS in Polished Brass

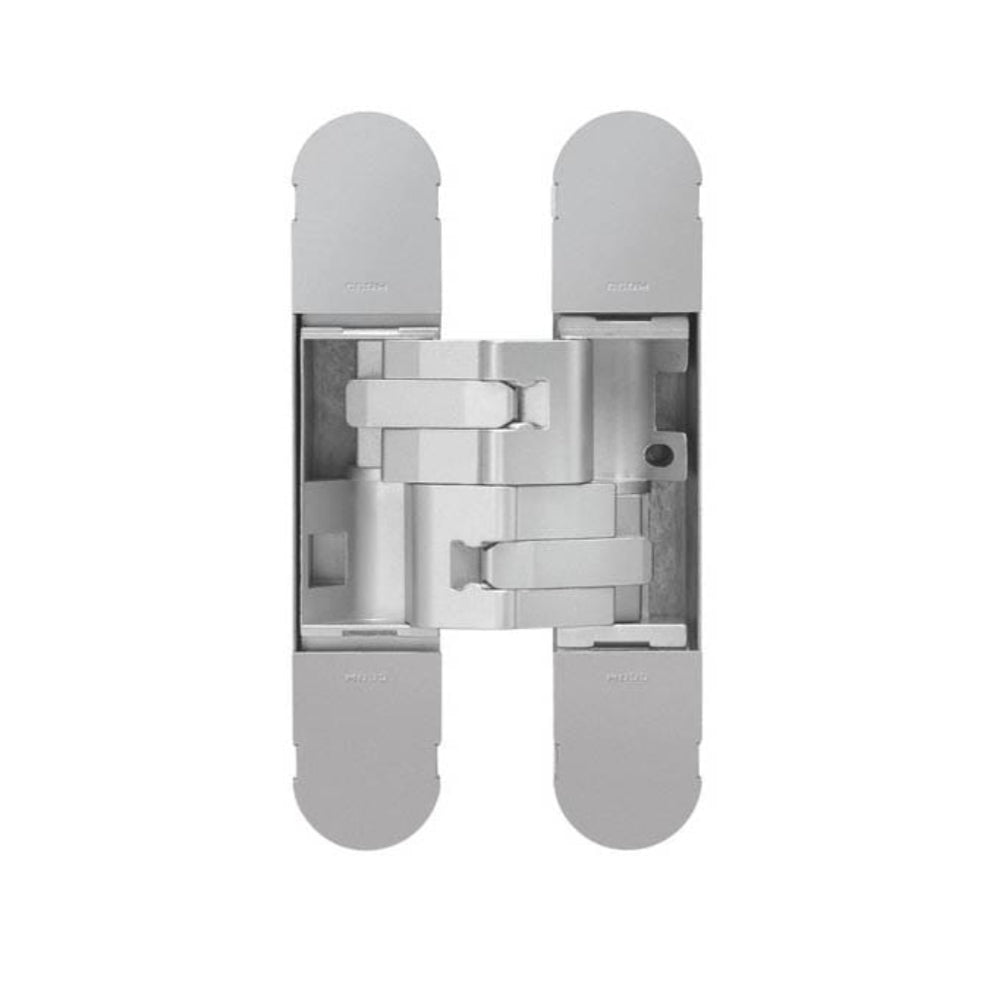

150kg Fully Concealed 3D Hinge: SILVER in Silver

Bellevue CEAM Invisible Fully Concealed 3D Hinge - 150kg

Product Finish: Matt Black
$128.65 $142.95
By Bellevue Architectural
SKU: BAC1131SBL

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

3D Adjustable Concealed Door Hinge

Sold as Single

Features & Specs:

  • Load capacity up to 150 kg @ 900mm wide door (subject to door specs, see weight chart)
  • Suitable for doors of 38 mm min.thickness
  • Total overall length 160 mm
  • Only 29mm deep (rebate into thin jamb & door)
  • Router template available for easy installation and slot symmetry
  • Available in multiple finishes
  • 100% made in Italy for over 50 years
  • 3D adjusting system S.T.A.R.S.
  • Suitable for internal & external (under cover) locations

    • Load Capacity:

  • 2 hinges: 85kg at 900mm wide doors
  • 3 hinges: 120kg at 900mm wide doors
  • 3 hinges asymmetrical: 135kg at 900mm wide doors
  • 4 hinges: 150kg at 900mm wide doors
    •
    Dispatch Time
    Please contact us about the delivery time for this product
    Technical Information
    Sorry there is no spec sheet available for this product
