Bellevue CEAM Invisible Fully Concealed 3D Hinge - 85kg

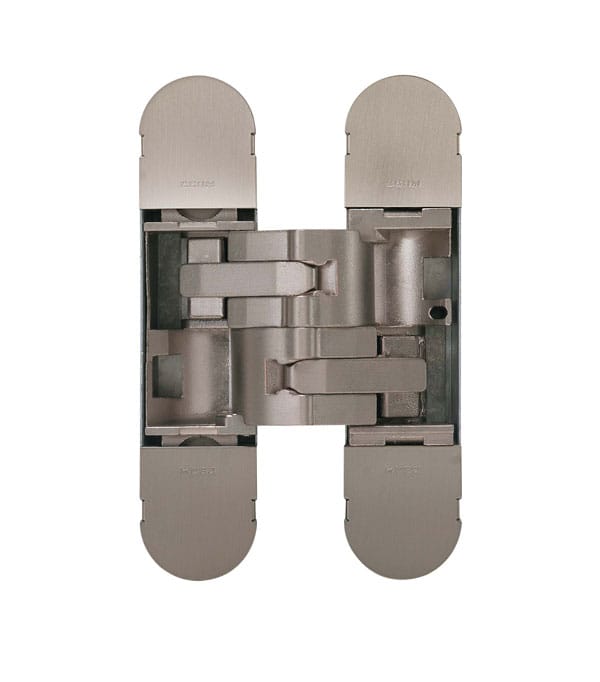

85kg WIDE THROW Fully Concealed 3D Hinge: NI in Nickel

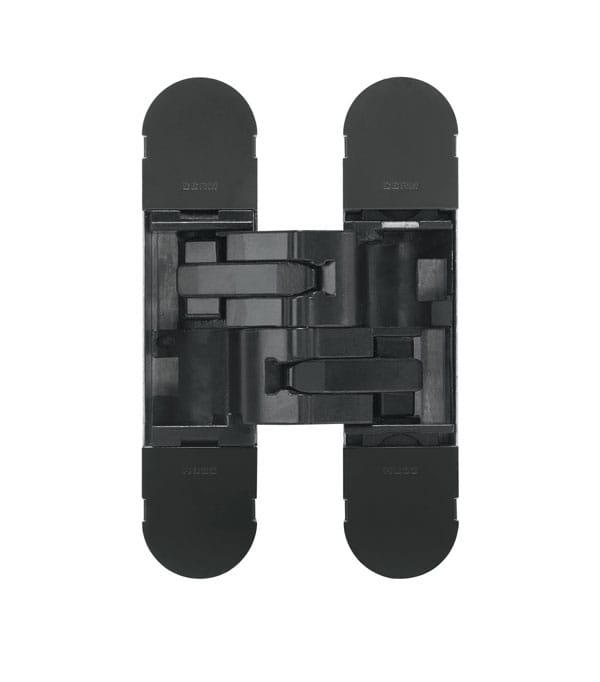

Bellevue CEAM Invisible Fully Concealed 3D Hinge - 85kg - Black / Black in Black

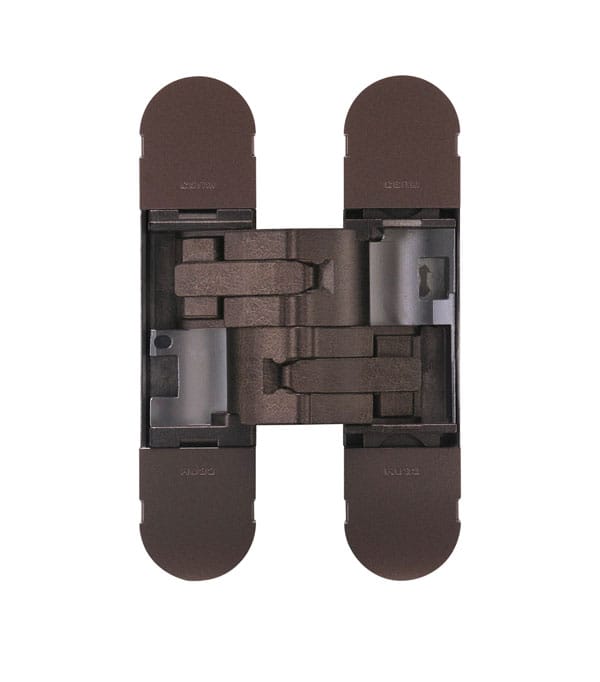

85kg WIDE THROW Fully Concealed 3D Hinge: BZ in Bronze

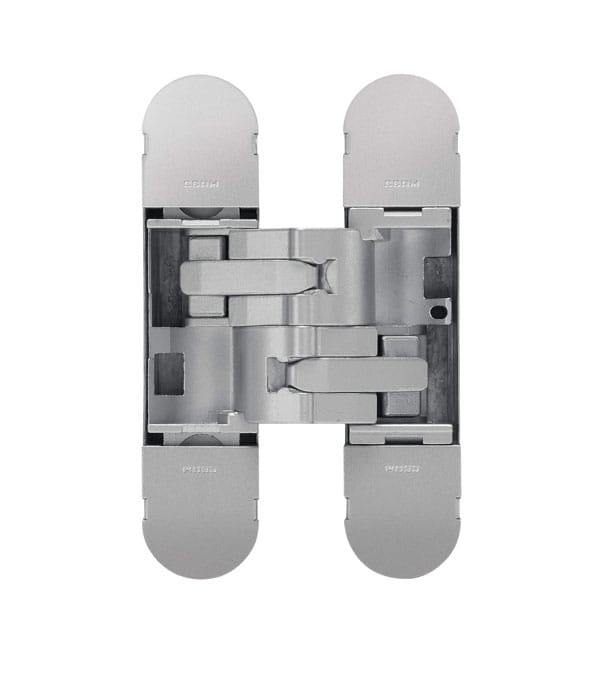

85kg WIDE THROW Fully Concealed 3D Hinge: SI in Silver

Bellevue CEAM Invisible Fully Concealed 3D Hinge - 85kg

Product Finish: Nickel
$105.22 $120.95
By Bellevue Architectural
SKU: BAC1230SNI

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

3D Adjustable Concealed Door Hinge - Weight 85kg

Sold as Single

Features & Specs:

  • Wide throw designed for cladded doors
  • Load capacity up to 85 kg @ 900mm wide door (subject to door specs, see weight chart)
  • Suitable for doors of 35 mm min.thickness
  • Total overall length 130 mm
  • Only 21mm deep (rebate into thin jamb & door)
  • Router template available for easy installation and slot symmetry
  • Available in multiple finishes
  • 100% made in Italy for over 50 years
  • 3D adjusting system S.T.A.R.S.
  • Suitable for internal & external (under cover) locations

    • Load Capacity:

  • 2 hinges: 53g at 900mm wide doors
  • 3 hinges: 73kg at 900mm wide doors
  • 3 hinges asymmetrical: 76kg at 900mm wide doors
  • 4 hinges: 85kg at 900mm wide doors
    •
    Dispatch Time
    Please contact us about the delivery time for this product
    Technical Information
    Sorry there is no spec sheet available for this product
