Bellevue CEAM Invisible Fully Concealed 3D Hinge - 75kg

75Kg Fully Concealed 3D Hinge – White in White

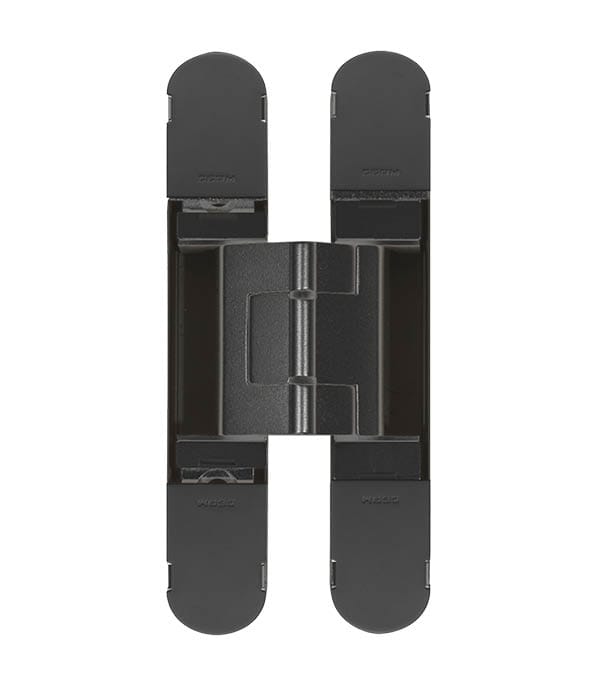

75Kg Fully Concealed 3D Hinge – Black in Black
75Kg Fully Concealed 3D Hinge – Bronze in Bronze

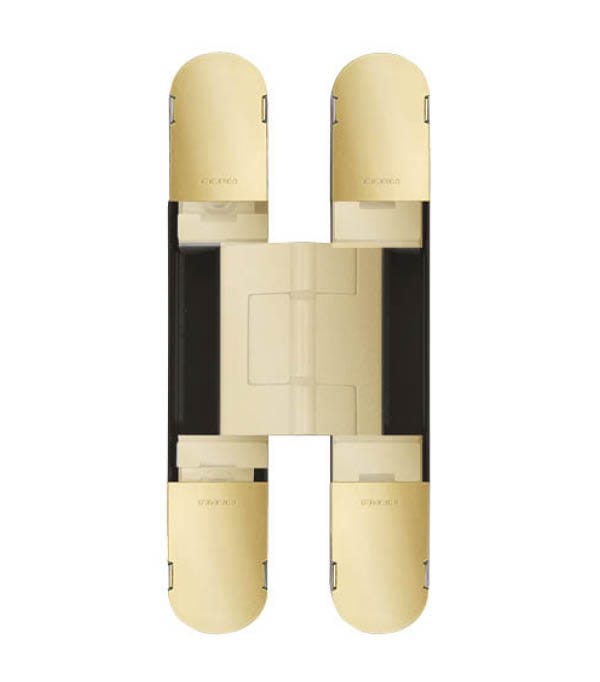

75Kg Fully Concealed 3D Hinge – Polished Brass in Polished Brass

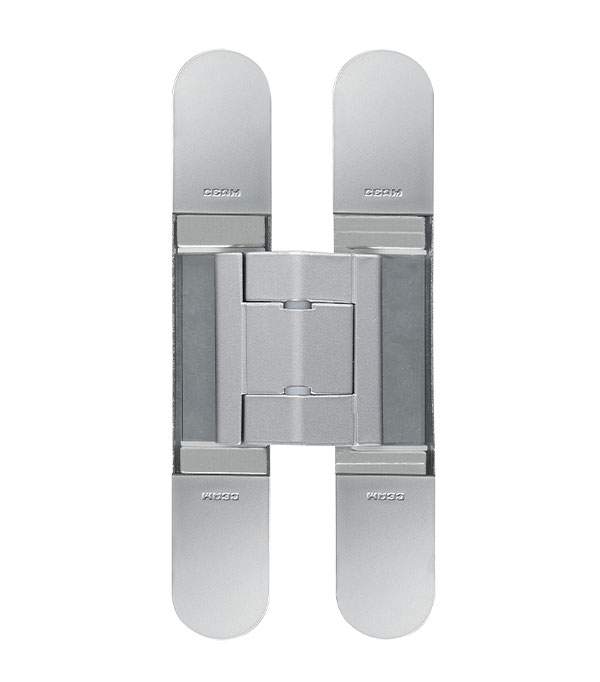

75Kg Fully Concealed 3D Hinge – Polished Chrome in Polished Chrome

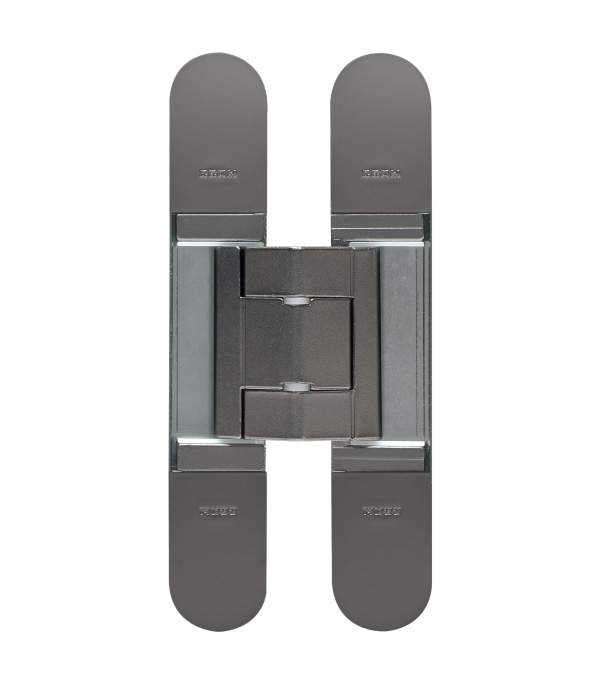

75Kg Fully Concealed 3D Hinge – Satin Nickel in Satin Nickel

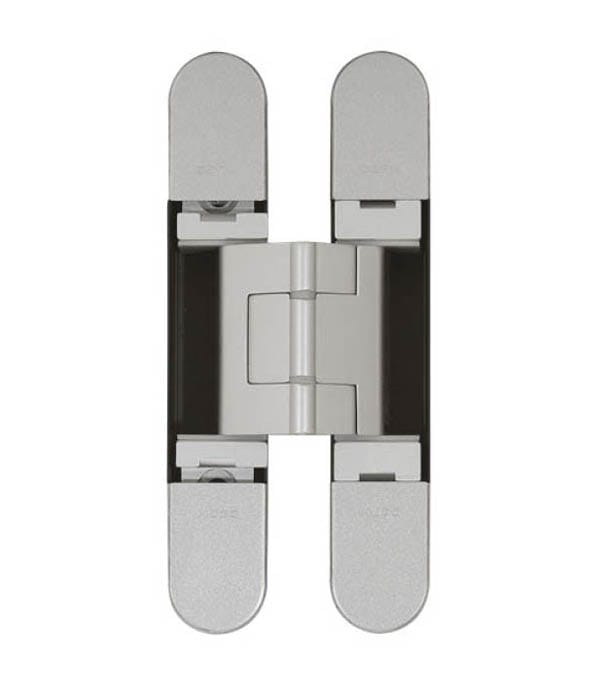

75Kg Fully Concealed 3D Hinge – Silver in Silver

Bellevue CEAM Invisible Fully Concealed 3D Hinge - 75kg

Product Finish: White
$108.85 $120.95
By Bellevue Architectural
SKU: BAC1430WH

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

3D Adjustable Concealed Door Hinge - 75kg

Sold as Single

Features & Specs:

  • Load capacity up to 75kg @ 900mm wide door (subject to door specs, see weight chart)
  • Suitable for doors of 28 mm min.thickness
  • Total overall length 128 mm
  • Only 21mm deep (rebate into thin jamb & door)
  • Router template available for easy installation and slot symmetry
  • Available in multiple finishes
  • 100% made in Italy for over 50 years
  • 3D adjusting system S.T.A.R.S.
  • Suitable for internal & external (under cover) locations

    • Load Capacity:

  • Load capacity 2 hinges: 40 kg
  • Load capacity 3 hinges: 60 kg
  • Load capacity 3 hinges asymmetrical: 65 kg
  • Load capacity 4 hinges: 70 kg
    •
    Dispatch Time
    Please contact us about the delivery time for this product
    Technical Information
    Sorry there is no spec sheet available for this product
