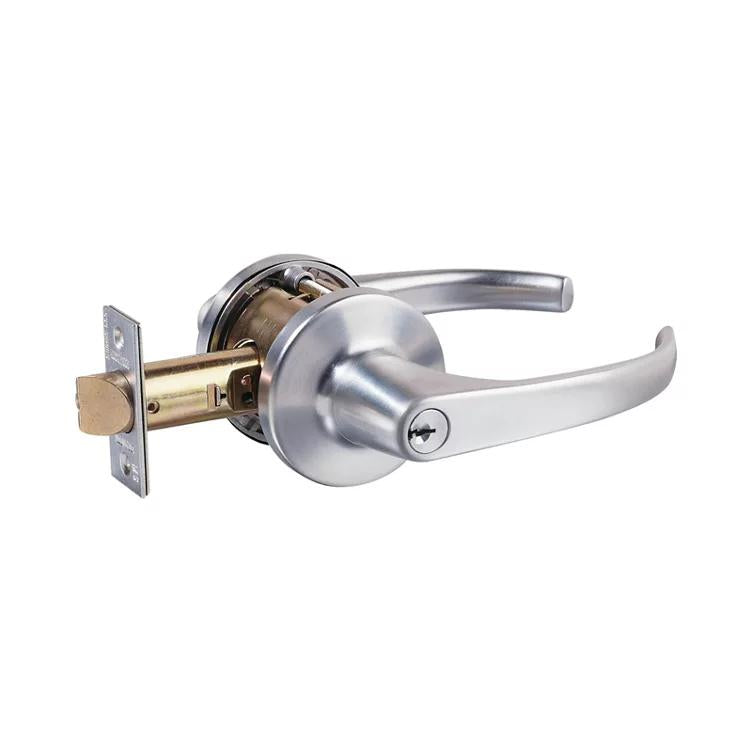

Lockwood 930 Series Key in Lever Lockset
Lockwood 930 Series Key in Lever Lockset
Regular price
$627.40
By Lockwood
SKU: LHLW930SC
Pickup available at 1a, 273-275 Wickham Rd
Refer to dispatch estimate
Description
The Lockwood 930 Series Key in Lever Lockset is produced from high purity zinc alloy and available in a comprehensive range of functions and attractive finishes.
Brass bolt with 13mm projection
A brass rose is supplied to conceal inside fixing screws
70mm standard backset. 60mm backset also available
Can be keyed alike, master keyed, grand master keyed, maison keyed or construction keyed
Successfully tested up to 2 hours (depending on the type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1-2005, Part1: Fire Resistant Doorsets.
Levers and Roses: High purity zinc alloy. A rose cover is supplied to conceal internal fixing screws.
Door Thickness: 32 to 45mm (all functions except 934 and 954 which suit doors 35 to 41mm).
Backset: 70mm standard backset. 60mm and 127mm latches available separately.
Latch: 13mm projection.
Cylinder: 5 pin tumbler mechanism. Brass cylinder and brass barrel.
Handing: Field adjustable handing.
Finishes: Satin Chrome Brushed SC.
Fire Rating: Lockwood Key in Lever Locksets have been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905 Part 1: Fire Resistant Doorsets.
Features
Specifications
Please refer to Brochure link below for explanation of each Door Function.
Dispatch Time
Approximately 1 week.
Technical Information
Lockwood 930 Series Key in Lever Lockset
