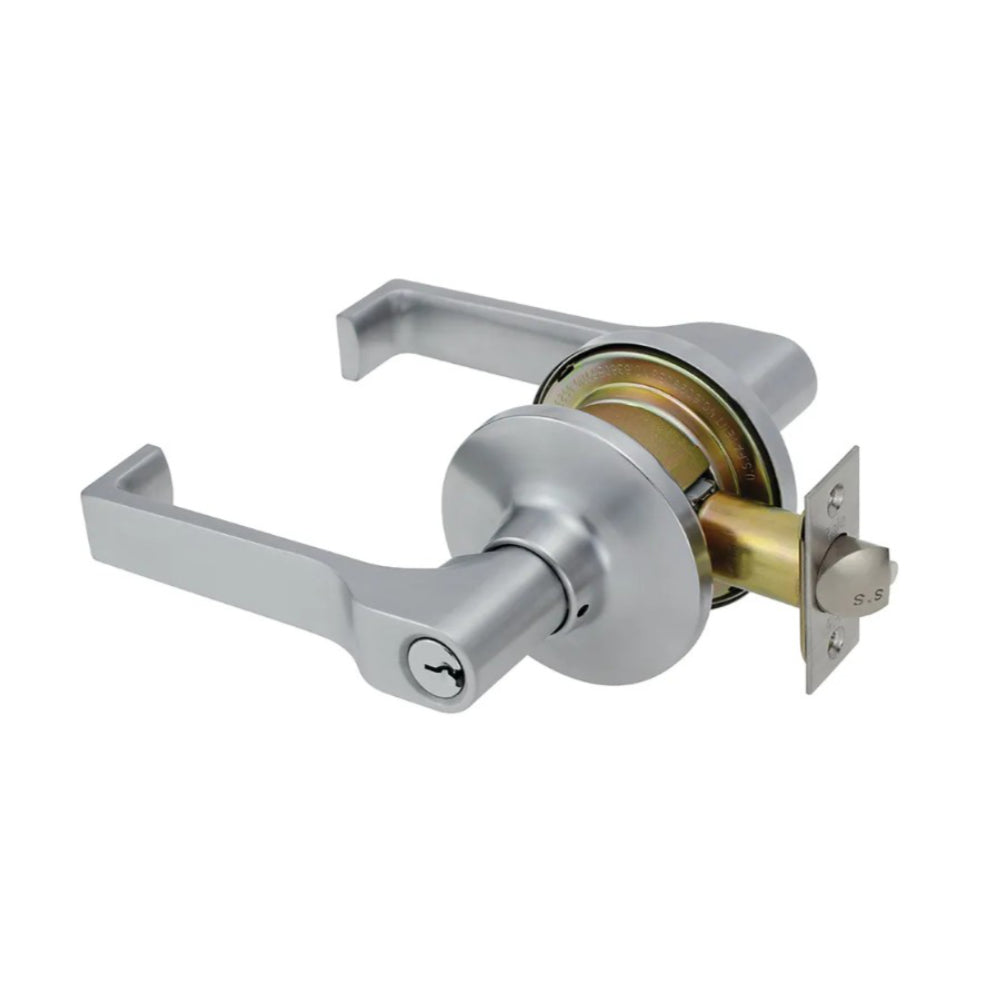

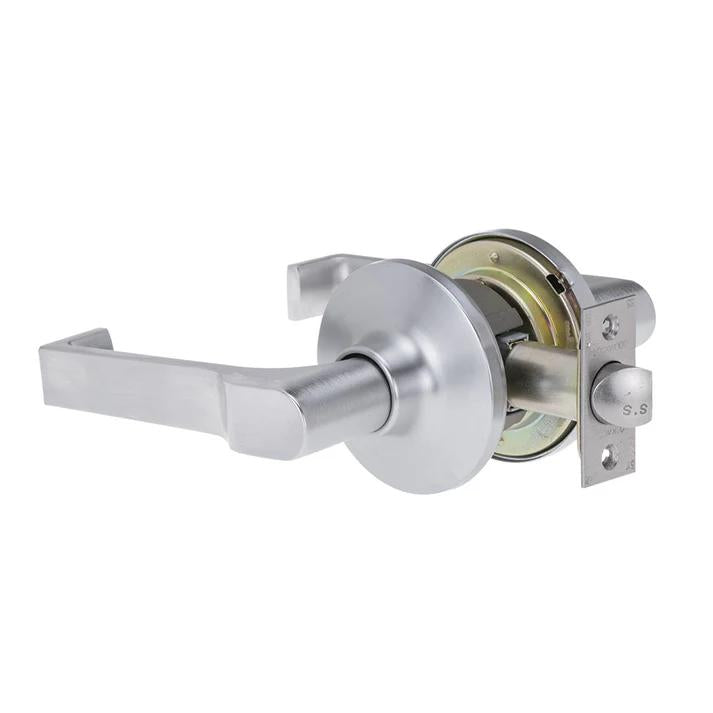

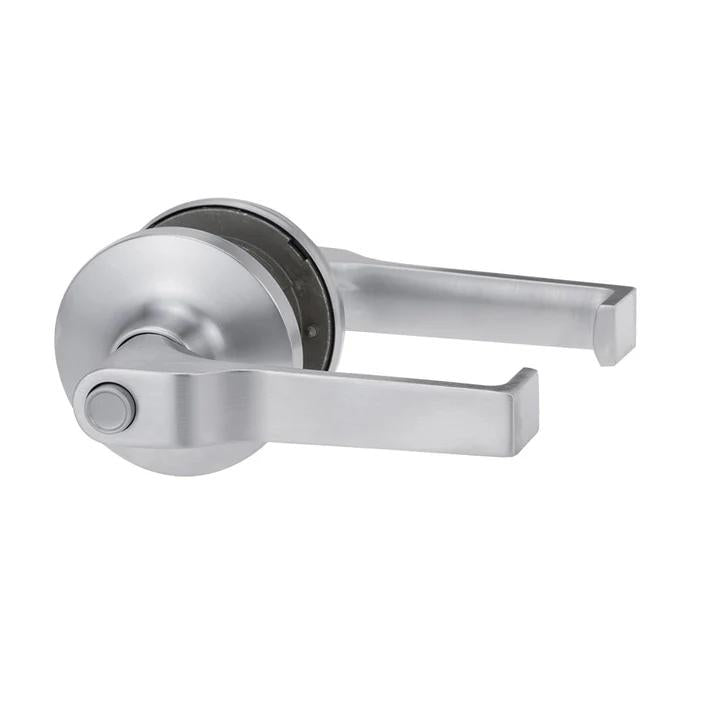

Lockwood’s new AS1428.1 compliant leverset features a right angle return of 20mm length and good clearance from the door to prevent fingers slipping off during use. A push button on the interior side lever of the Exterior and Privacy Sets allows a single action egress function. This leverset is designed to enable positive grip and is suitable for door thickness of 35mm to 45mm.

Features

Door Clearance

To ensure correct functioning of the lockset, the clearance between the door and the frame should be at least 3mm.

Cylinder

Available in Exterior, Privacy, Passage, Single Dummy, Storeroom, Classroom, Glass Door and Lever/Knob Combination sets

Supplied with a standard “PD” type cylinder keyed to C4 profile with two keys

Suitable for residential and commercial applications

Restricted Special Keying

Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.

Specifications

Backset: 60 to 70mm adjustable backset latch

Door Thickness: 35 to 45mm

Finishes : Satin Chrome Brushed (SC)

Handing: Non handed

Latch: 13mm projection

Materials: High purity zinc alloy. Concealed fixing screws

Lockwood’s Enable Range Locksets have been successfully tested up to 2 hours (depending on type of doorsets) on fire door assemblies in accordance with Australian Standard AS 1905.1-2015, Part 1: Fire Resistant Doorsets.

Please refer to Brochure link below for explanation of each Door Function.

Approximately 1 week.

Technical Brochure
