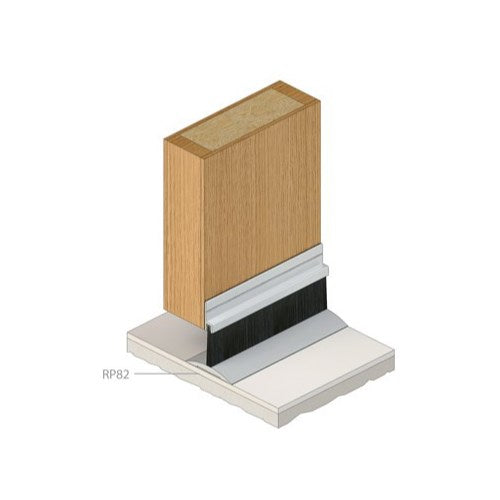

A nylon brush strip seal with aluminium carrier that is ideal where larger gaps are encountered. Used in conjunction with Raven threshold plates.

• Location:Bottom of single, double or sliding doors.
• Min/Max Gap: Up to 25mm (user determined).
• Finish:Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
• Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
• Seal: Black fine, dense, UV stabilised nylon filaments.
• Sizes:Available in stock lengths.
• Fire:Brush Strip flammability index 1 when tested to AS1530.2.
• EnergyNCC Pt. 3.12.3.3 & J3.4
• when used on a garage in accordance with AS 3959.
