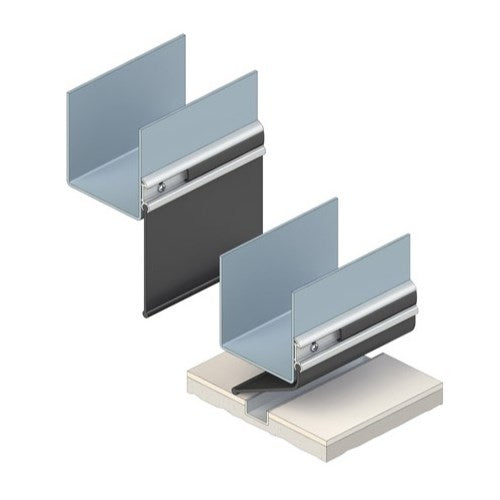

A heavy duty EPDM sweep seal for door bottoms of outward opening doors with large gaps up to 120mm. Ideal for industrial sliding doors. This seal has slotted holes for adjustment with a push-in cover strip for concealment of fasteners. The RP81 is ideal for use in conjunction with Raven threshold plates RP82 and RP29.

• Location:Bottom of single and double outward opening doors or industrial sliding doors.
• Min/Max Gap:Up to 120mm (seal can be slit to suit on site).
• Finish:Satin clear (silver) anodised aluminium (15µm).
• Fixing:Screw fix. Zinc plated, cross recess head S.T. screws supplied.
• Seal:RP381. Black EPDM.
• Sizes: Available in stock lengths.
• EnergyNCC Pt. 3.12.3.3 & J3.4.
