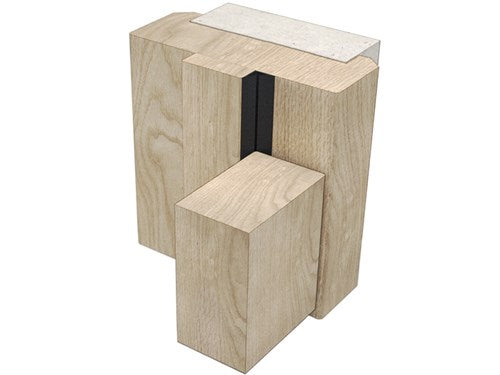

Lorient 1212 Batwing Door Seal
  • Specification
  • Downloads

The Lorient Batwing® series is primarily designed to contain sound and restrict the spread of medium temperature smoke around hinged door assemblies. Their symmetrical design and unique curved sealing fins provide outstanding performance benefits .

  • Seals restrict the spread of medium temperature smoke (200°C).
  • Highly effective acoustic seal that can be retrofitted to existing door assemblies.
  • Low friction curved elastomeric fins spring back to original shape to provide continuous performance.
  • Discreetly positioned in frame rebate to provide a fully concealed sealing solution.
  • Simple peel-and-stick installation, our aggressive self-adhesive backing is tested on many surfaces to ensure seal longevity.
  • Fire: Tested in accordance with AS1530.4 on proprietary fire doors.
  • Smoke: AS1530.7 smoke test data on AS6905 compliant door assemblies.
  • Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 39Rw on appropriate rated assemblies.
  • Durability: Long term mechanical test, completing 1,000,000 cycles without failure.

LORIENT 1212 - Batwing Self Adhesive Smoke/Acoustic Door Seal 12mm x 12mm, L1000mm

SKU WSLOR1212.1000

In stock, within 1 week


Black
L1000mmDouble Door Set - Sides 2100mm, Top 2100mmDouble Door Set - Sides 2750mm, Top 2100mmL2100mmL2750mmL3000mmSingle Door Set - Sides 2100mm, Top 1000mmSingle Door Set - Sides 2750mm, Top 1000mm

Total Price

$7.70
