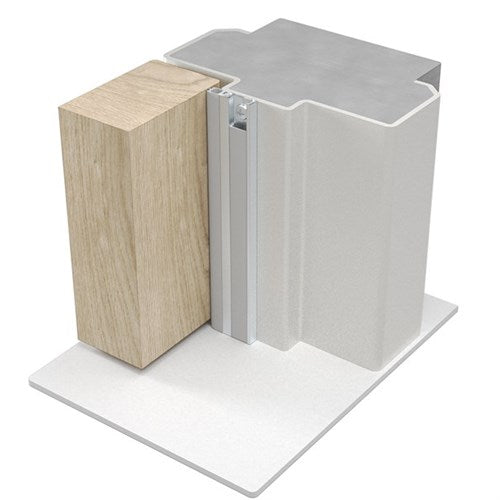

A slim-line, stop mounted compression seal
incorporating an anodised aluminium carrier fitted with
a fire rated silicone rubber gasket and non-shrink,
click-fit cover strip. The seal is fitted to the head and jambs
of the door frame to create an effective seal between the
frame and the door face.
- A slim-line and unobtrusive acoustic seal that can easily
be retrofitted to existing door assemblies.
- Fitted with high performance fire rated silicone rubber
- Supplied with slotted fixing holes for accurate
positioning and easy adjustment.
- Non-shrink, click-fit cover strip conceals the fixing
- Fire: Tested in accordance with AS1530.4 on proprietary
AS1905.1 fire door assemblies for up to 4 hour rating.
- Sound: Acoustically tested in accordance with
ISO10140-2 and AS/NZS717.1 with ratings up to
39Rw on appropriate rated assemblies.
- Durability: Long term mechanical test, completing
1,000,000 cycles without failure.
LORIENT 7001 - Slimline Perimeter Seal with Concealed Fixing and Silicone Gasket, L1000mm
