Lorient 8001 Automatic Door Bottom Seal
  • Specification
  • Downloads

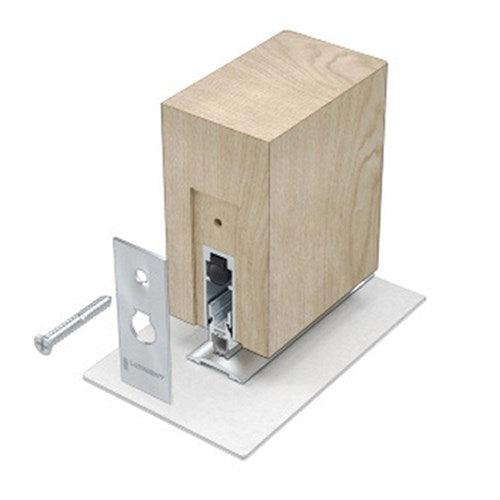

This fully mortised aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke and energy efficiency performance. The seal incorporates a high efficiency spring loaded mechanism that extends the seal as the door swings shut and automatically retracts it as the door is opened by just a few centimetres.

  • Effective acoustic sealing solution that is fully concealed in the bottom of the door.
  • Dual internal sealing fins enhance acoustic and smoke containment performance.
  • Supplied with high performance fire rated silicone rubber gasket.
  • Fully automatic, no power connection required.
  • Simple adjustment to suit varying door gap requirements. Proven long term reliability.
  • Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
  • Smoke: Tested in accordance with AS1530.7 on AS6905 compliant door assemblies. Conforms with BCA Specification C3.4 smoke sealing requirements.
  • Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 40Rw on appropriate rated assemblies.
  • Durability: Long term mechanical test, completing 1,000,000 cycles without failure.

LORIENT 8001 - Medium Duty, Fully Rebated, Automatic Door Bottom Seal, 335mm cuts back to 235mm

SKU WSLOR8001.0335


Clear Anodised
335mm cuts back to 235mm1070mm cuts back to 920mm1220mm cuts back to 1070mm1400mm cuts back to 1220mm1600mm cuts back to 1400mm435mm cuts back to 335mm535mm cuts back to 435mm635mm cuts back to 535mm735mm cuts back to 635mm820mm cuts back to 635mm920mm cuts back to 820mmEnd Plate
