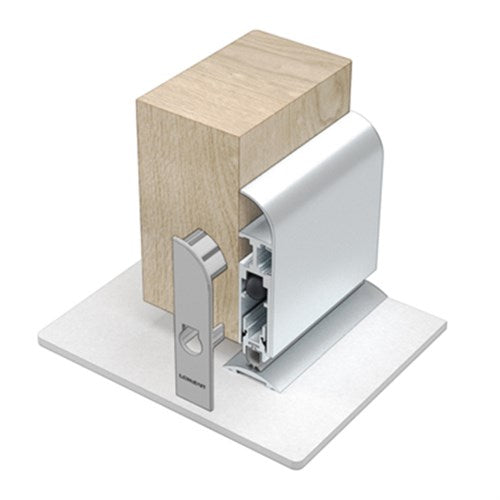

Lorient 8008 Automatic Door Bottom Seal
  • Specification
  • Downloads

A face fixed drop seal with a smooth aesthetic curved cover that incorporates a high efficiency mechanism which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Its curved cover plate provides enhanced aesthetics: surface mounted only.

  • Effective acoustic sealing solution that can easily be retrofitted to existing door assemblies.
  • Durable flexible elastomeric fin elements are incorporated with the housing to provide acoustic and smoke properties. It requires no power connection.
  • Curved cover conceals fixing points.
  • Surface mounted application suitable for upgrading existing doors.
  • Proven long term reliability.
  • Fire: Approved for use on proprietary AS1905.1 fire doors for up to 4 hour fire rating.
  • Smoke: Medium temperature smoke approvals for use on AS6905 compliant smoke door assemblies. Conforms with BCA Specification C3.4 smoke sealing requirements.
  • Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 40Rw on appropriate rated assemblies.
  • Durability: Long term mechanical test, completing 1,000,000 cycles without failure.

LORIENT 8008 - Medium Duty, Fully Rebated, Automatic Door Bottom Seal, 435mm cuts back to 335mm

SKU WSLOR8008.0435

1-2 Weeks

Clear Anodised
435mm cuts back to 335mm1070mm cuts back to 920mm1220mm cuts back to 1070mm1600mm cuts back to 1220mm535mm cuts back to 435mm635mm cuts back to 535mm820mm cuts back to 635mm920mm cuts back to 820mmEnd Plate
