Lorient 8009 Automatic Door Bottom Seal
  • Specification
  • Downloads

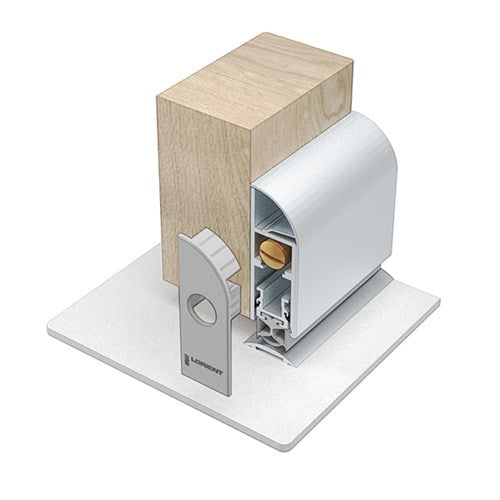

A heavy duty automatic drop seal which incorporates a smooth aesthetic curved cover and spring-loaded mechanism which lifts clear of the floor as soon as the door is opened by a few millimetres. Plastic end caps are supplied.

  • Effective acoustic sealing solution that can easily be retrofitted to existing door assemblies.
  • Dual internal sealing fins enhance acoustic and smoke containment performance.
  • Quickly and easily fitted to the bottom of door.
  • Can be fitted semi-mortised for a flush finish.
  • Supplied with a fire rated silicone rubber gasket and aesthetic push-fit end caps.
  • Fully automatic, no power connection required.
  • Simple adjustment to suit varying door gap requirements.
  • Proven long term reliability.
  • Fire: Approved for use on proprietary AS1905.1 fire doors for up to 4 hour fire rating.
  • Smoke: Medium temperature smoke approvals for use on AS6905 compliant smoke door assemblies. Conforms with BCA Specification C3.4 smoke sealing requirements.
  • Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 40Rw on appropriate rated assemblies.
  • Durability: Long term mechanical test, completing 1,000,000 cycles without failure.

LORIENT 8009 - Heavy Duty, Fully Rebated, Automatic Door Bottom Seal, 1600mm cuts back to 1400mm

SKU WSLOR8009.1600

1-2 Weeks


Clear Anodised
1600mm cuts back to 1400mm535mm cuts back to 435mm1070mm cuts back to 920mm1220mm cuts back to 1070mm1400mm cuts back to 1220mm635mm cuts back to 535mm820mm cuts back to 635mm920mm cuts back to 820mmEnd Plate

Total Price

$250.35
