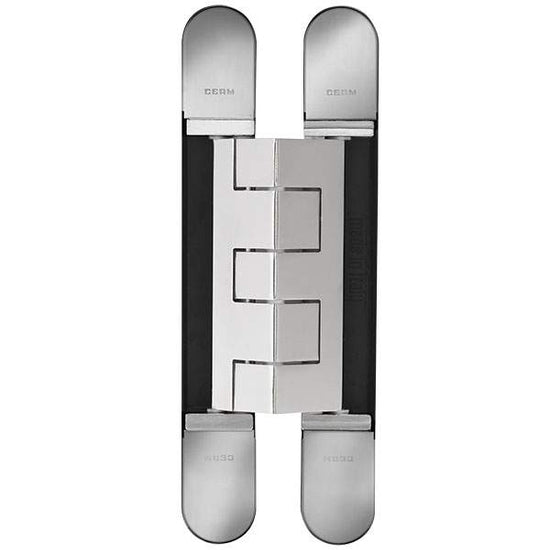

230Kg Fully Concealed 3D Hinge – Satin Nickel in Satin Nickel
230Kg Fully Concealed 3D Hinge – Black in Black

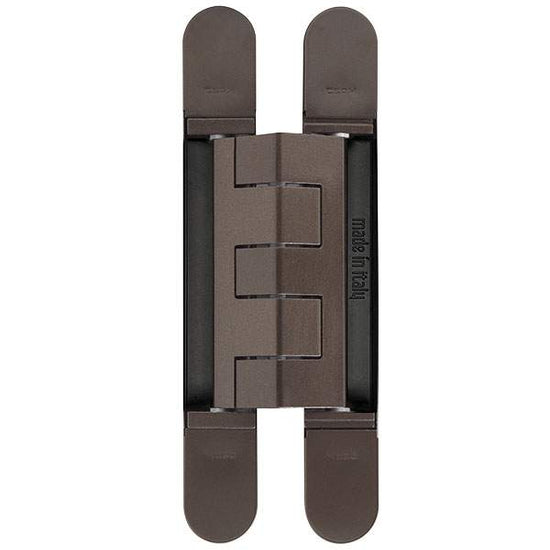

230Kg Fully Concealed 3D Hinge – Bronze in Bronze

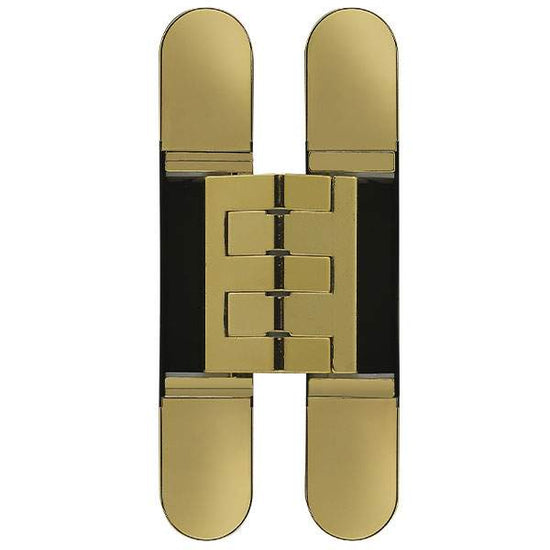

230Kg Fully Concealed 3D Hinge – Polished Brass in Polished Brass

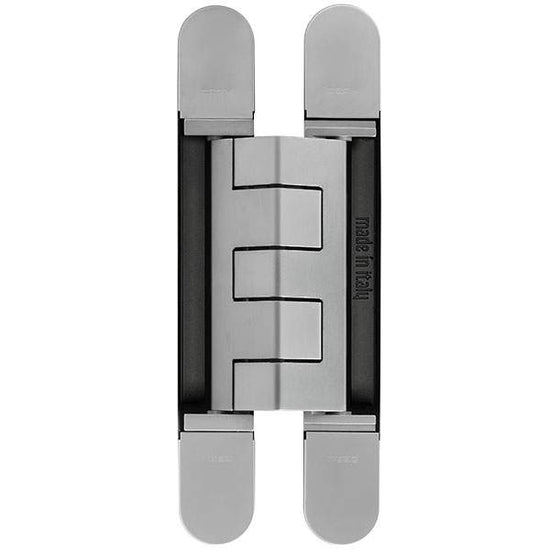

230Kg Fully Concealed 3D Hinge – Silver in Silver
230Kg Fully Concealed 3D Hinge – White in White
1 6

Bellevue CEAM Invisible Fully Concealed 3D Hinge - 250kg

3D Adjustable Concealed Door Hinge - 250kg

Sold as Single

Features & Specs:

  • Load capacity up to 230kg @ 1000mm wide door (subject to door specs, see weight chart)
  • Minimum door thickness 38mm
  • Total length 230 mm
  • Narrow timber rebate 32mm
  • Gap when closed 2mm
  • Depth 32 mm only
  • 180º working aperature
  • Quick release system
  • Available in multiple finishes
  • 100% made in Italy for over 50 years
  • 3D adjusting system S.T.A.R.S.
  • Router template available for easy installation and slot symmetry
  • Suitable for internal & external (under cover) locations
  • Suitable for residential, commercial & industrial locations
    • $405.90
    $405.90 $405.90
    Save 0
    Sold out
    Tax included.

    Delivery Time:

    Downloads:

    BAC1432 Specs

    Bellevue CEAM BAC1432 Weight Guide
