Bellevue GHOSTOP BAGS300XL Magnetic Door Stop

Finish: Dark Bronze PC/Black
$544.50
By Bellevue Architectural
SKU: DSBV.BAGS300XL.DBZ.B

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

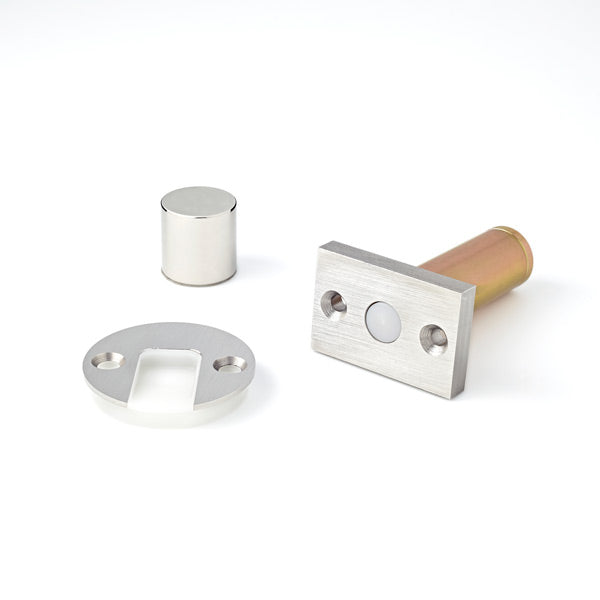

The Ghostop BAGS300XL was developed to provide a flush-to-the floor (or ceiling) door stop for heavier doors with undercuts up to 32mm.

The larger magnet (34 Kg of force) activates the longer spring-loaded stainless steel pin that deploys immediately upon its approach to the ramped magnetic strike, producing an easily released soft hold on the door.

Specifications:
  • Zero Clearance Solution, no trip hazard
  • Spring-loaded retracting stainless steel pin
  • Maximum door undercut: 32mm
  • Solid milled brass pin assembly
  • Series 316 marine-grade stainless steel spring
  • Round Pin Assembly cover in stainless steel
  • Proprietary graduated recess (the Delrin® ramp)
  • Concealed neodymium magnet
  • Includes wood screws finished to match
    •
    Dispatch Time
    Approximately 1 week.
    Technical Information

    Technical Specifications
    View details
