Universal floor Spring for single and double action doors with cement case, back-check and standard spindle. EN2-EN4 in Satin Stainless

DormaKaba BTS75 EN1-4 Door Closer Floor Spring Adjustable, Non Hold Open

DormaKaba BTS75 EN1-4 Door Closer Floor Spring Adjustable, Non Hold Open

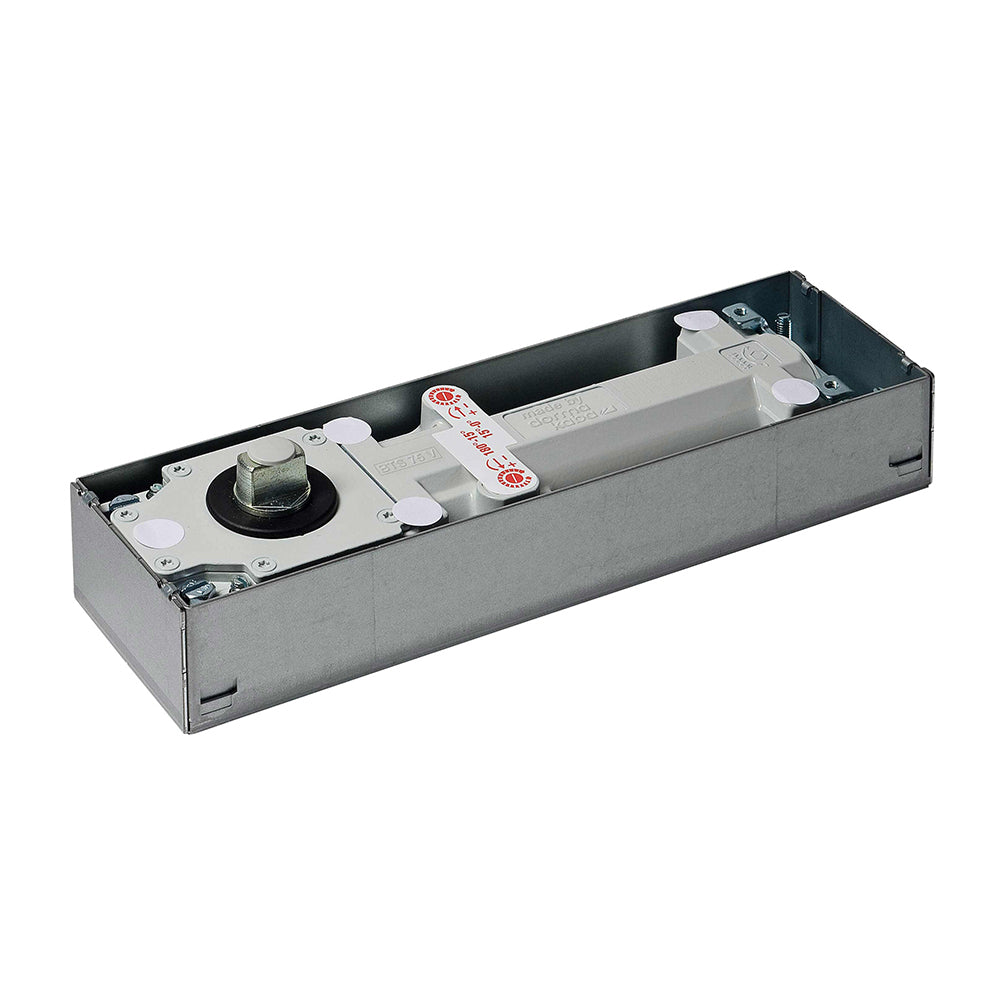

DORMA BTS 75 EN1-4 floor spring body. Including cement box and standard spindle. This model is not hold-open.

The BTS 75V is a universal non-handed floor spring for left hand (LH) or right hand (RH) single and double action doors. With adjustable spring stength and closing speed, with closing action operational from approx. 175°. Featuring hydraulically fully controlled closing cycle and mechanical backcheck.

Variable Closing Force: EN1-EN4

Suitable for Standard Doors Installation: Up to 1100mm(W)

Max Leaf Weight 120kgs

Specifications:

  • Length: 285mm
  • Width: 82mm
  • Height: 50mm
  • Weight: 3.0kg
    •
    $1,219.32
    $1,219.32 $1,219.32
    Save 0
    Sold out
    Tax included.

    Downloads:

    Technical Brochure
