Dormakaba TS93B EN1-EN5 Cam Action, Pull Side w/ARM

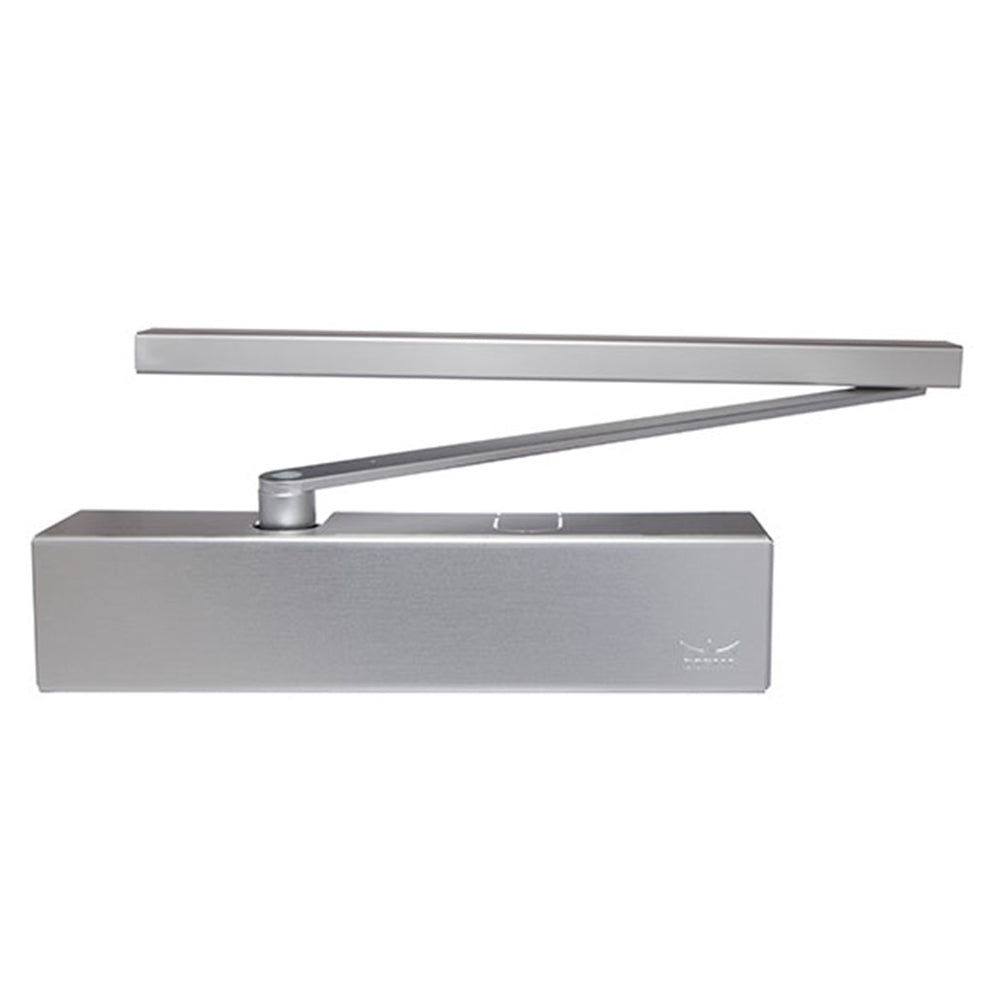

Dorma TS93B Cam Action, Slide Arm Door Closer EN 1-5 (Pull Side) in Silver

Dormakaba TS93B EN1-EN5 Cam Action, Pull Side w/ARM

$992.52
By Dormakaba
SKU: DCDOTS93BEN1-5.SIL.PULL

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

Dormakaba TS93B EN1-EN5 Cam Action, Pull Side w/ARM

The TS 93 cam action door closer system provides a high-quality architectural solution for all project application requirements. The proven dormakaba technology featuring the heart-shaped cam ensures exceptional ease of opening.

The new Contur design offers an even more impressive specification - thanks to:
  • Concealed fixings
  • Height-adjustable G-N slide channel
  • Delayed closing action as standard
  • Smoke detector integrated in the slide channel
  • Siimple, fast installation

    • Variable Closing Force:EN1-EN5

    Suitable for fire and smoke check doors where the cushioned limit stay is also used

    Suitable for single and double doors installation up to 1250mm

    Standard model for pull-side door leaf fixing/push-side transom fixing

    Specifications:

  • Length: 275mm
  • Width: 53mm
  • Height: 60mm
  • Spring Strength: EN 1-5
  • Back Check: Yes
  • Cam Action: Yes
  • Delayed Action: Yes
  • Fire Tested: Yes
  • Include PA Bracket: No
  • Includes Fixing Screws: Yes
  • Material: Aluminium
  • Max Door Width: up to 1600mm
  • Has Hold Open: Optional
  • Has Slide Arm: Yes
  • Adjustable Latching Speed: Yes
    •
    Dispatch Time
    Approximately 1 week.
