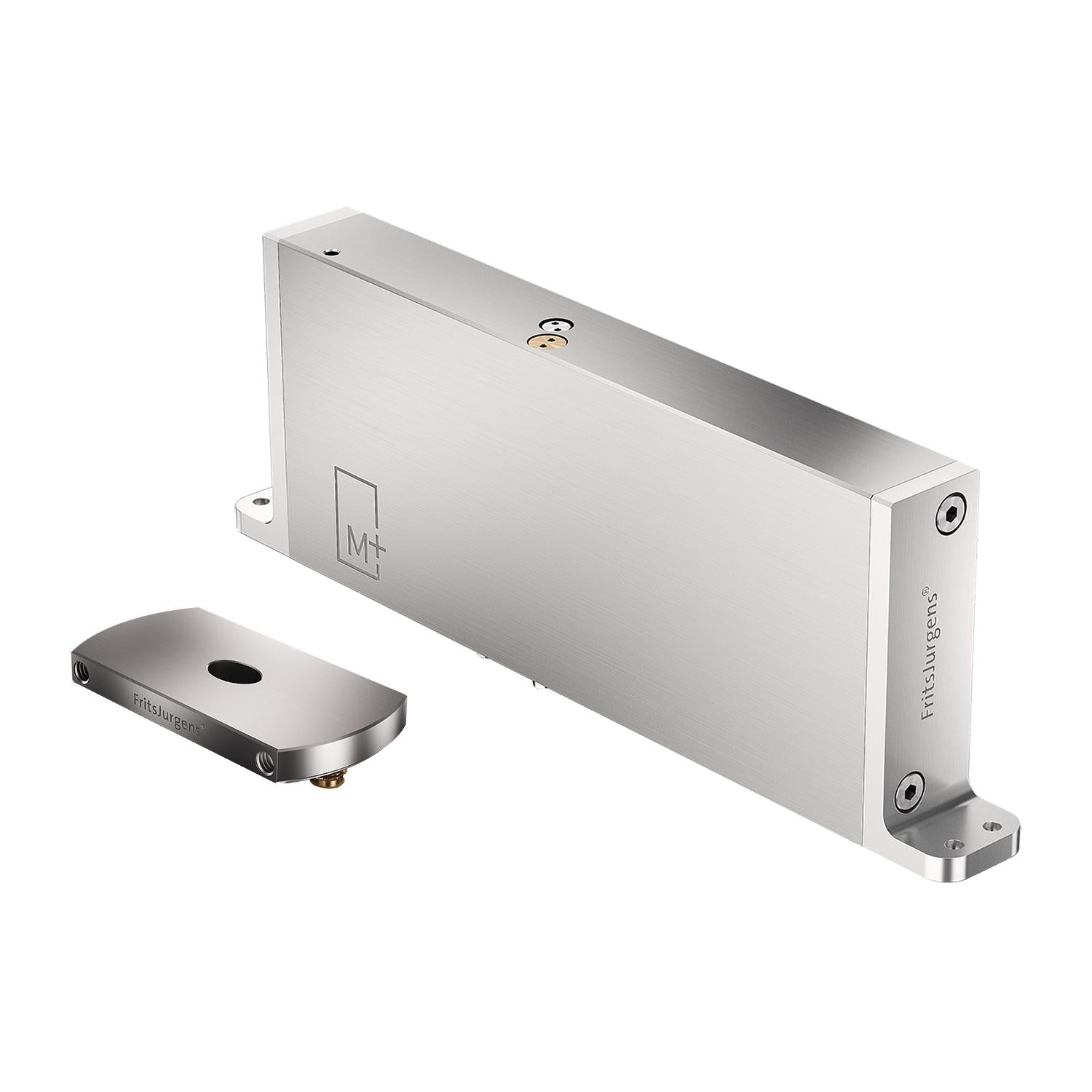

Frits Jurgens fully concealed Door Pivot Spring. Complete kit. For use with Locks, Latches, Electric Strikes (max door weight 500kg, max door width 5000mm) in Satin Stainless

Frits Jurgens System M+ Fully Concealed Door Pivot Spring

Frits Jurgens System M+ Fully Concealed Door Pivot Spring

System M+ - Family

FritsJurgens Fully Concealed Pivoting Door Hinge For Doors Using Locks or Latches

The System M+ | providing extra levels of functionality and increased capacity:

  • Door width 400-5000mm
  • Hold closed positions at 0°
  • Hold open positions at 90°and -90°
  • Self-closing from -125° to + 125°
  • Fully adjustable whilst in the door
  • Door thickness: 32+ 40mm 42+ 50mm
  • Tested & guaranteed to 1,000,000 cycles
  • Patented, made 100% in The Netherlands
  • Fully installed in the door and not the floor
  • Winner of the “Red Dot Design” award 2019
  • No cutting into concrete slabs or timber floors
  • FlowMotion for smooth controllable hydraulic door movement
  • No unsightly large floor plate to visually interrupt the look & feel of the floor
  • Independent latching speed control | Ideal for doors using locks, latches and electric strikes.
  • Independent hydraulic backcheck control | Change the backcheck strength protecting your wall without affecting closing or latching speed.
  • Independent door closing speed controls | Set your doors closing speed independently from latching & backcheck.
    •
    $2,494.80
    $2,494.80 $2,772.00
    Save 10%
    Sold out
    Tax included.

    Downloads:

    Mounting Manual

    Milling Manual

    Technical Brochure System M Plus

    Technical Brochure All Products
