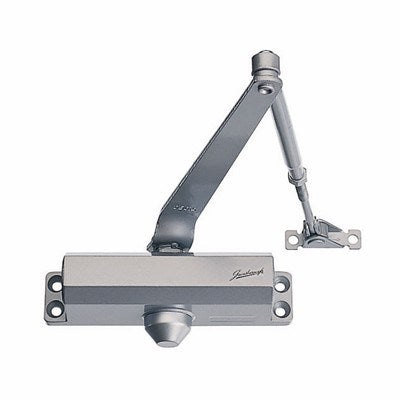

Gainsborough 3003ABC Fire Rated Door Closer

The 3003 ABC Hydraulic Door Closer from Gainsborough Architectural is the ideal solution where economy and ease of installation are prerequisites. Suitable for left or right-handed doors and approved for fire door purposes, these surface-mounted door closers feature a high-purity aluminium housing, a rack and pinion hydraulic-controlled piston, an adjustable arm and bracket, a captive latching speed adjustment valve and a closing speed adjustment valve. Presented in a stylish silver finish, the 3003 ABC Hydraulic Door Closer is an economical option for both commercial and residential markets.

• Hydraulic door closer
• Reversible for left or right-handed doors
• Suits side hung doors 800mm-1050mm in width, 25kg-6kg in weight
• High-purity aluminium housing
• Silver finish
• Rack and pinion hydraulic-controlled piston
• Pinion cap cover complements body design
• Adjustable backcheck valve
• Latching speed adjustment, latching range 0°-15°
• Closing speed adjustment, closing range 15°-180°
• Suitable for timber or metal door jambs
• Regular arm or parallel arm installation
• Drop bracket installation available via drop plate (optional extra, sold separately)
• Approved on fire door assemblies in accordance with Australian Standards AS1905.1.2005
• Includes door closer, regular arm, parallel bracket, fitting instructions and screws
• 5 year tarnish warranty
• 10 year mechanical warranty
