Justor Spring Hinge-Max Weight 30kg-1000mm

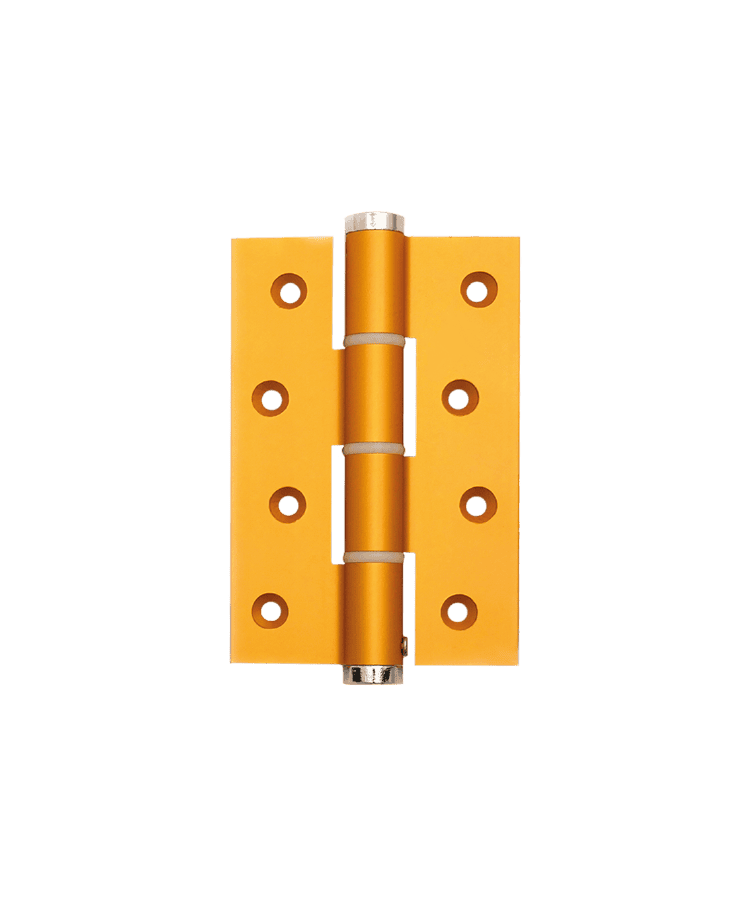

Justor SA120 Spring Hinge: GLD in Gold Anodised

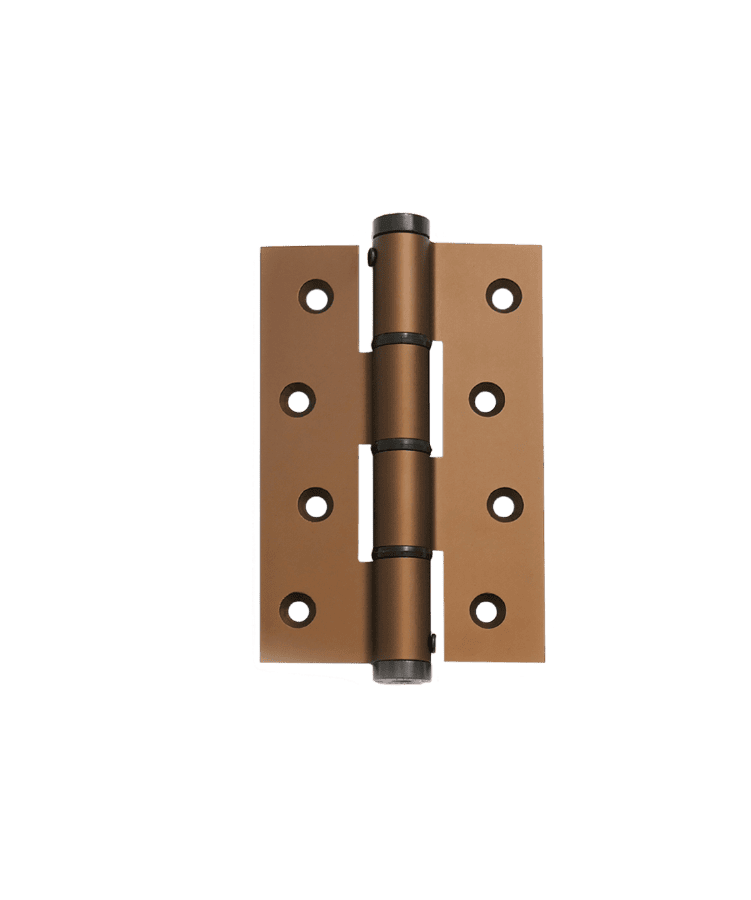

Justor SA120 Spring Hinge: BRZ in Bronze Anodised

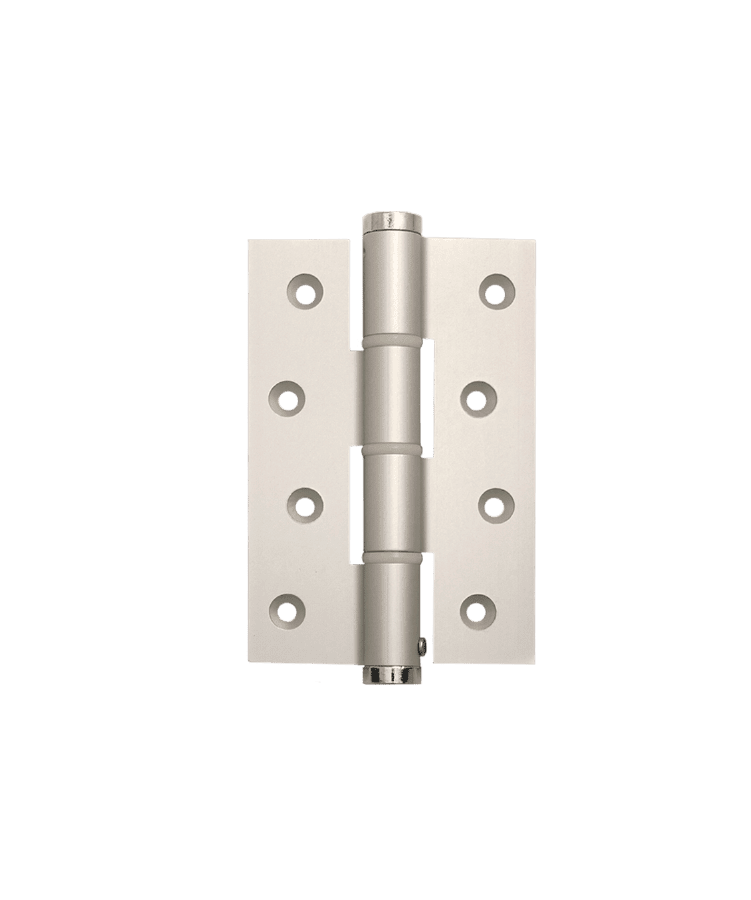

Justor SA120 Spring Hinge: SIL in Silver Anodised

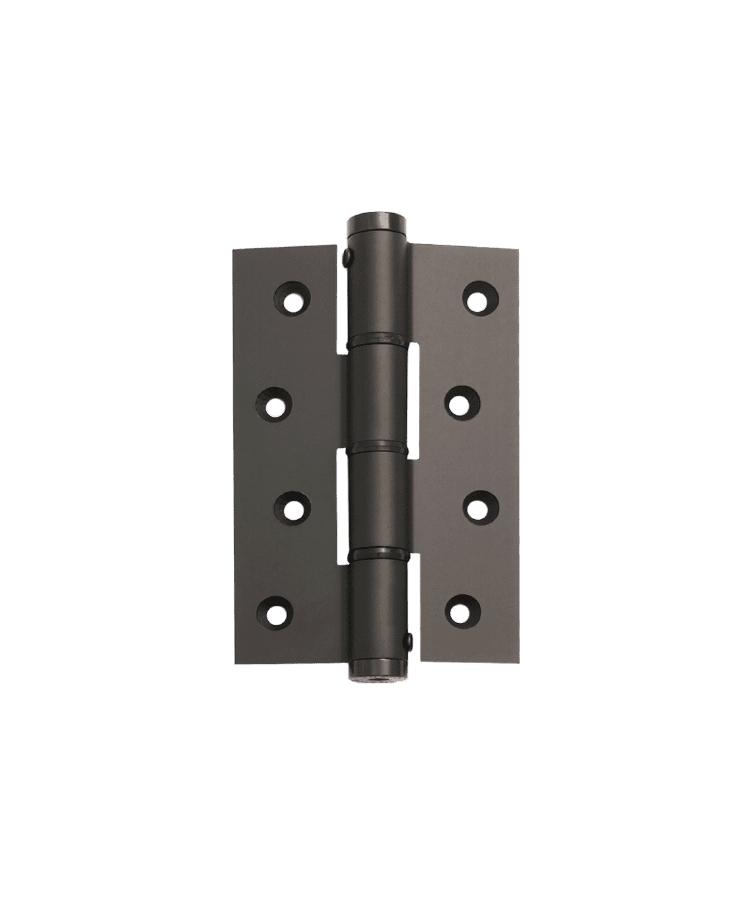

ustor SA120 Sprung: BLK in Black Anodised

Justor Spring Hinge-Max Weight 30kg-1000mm

Finish: Gold Anodised
$76.95
By Bellevue Architectural
SKU: BISA120AG

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description
  • SMALL SINGLE ACTION SPRING HINGE
  • Aluminium & 304 Stainless Steel
  • Ideal for perimeter doors, pool doors, gates, front doors, large feature doors, office, office doors & bedroom doors
  • Suitable with timber and aluminium doors
  • Individually laminated torsion spring prevents sagging/ drooping of the door
  • Non-Sprung available
  • Spring resistance 500,000 cycles
  • Maximum resistance to bending
  • Supports up to 30kg for a 1000mm wide door (subject to door specs, see weight information)
  • Variable closing strength (speed)
  • 90º or 180º working aperture
  • 2 year manufacturer’s guarantee
  • Manufactured in Spain
  • Suitable with commercial and residential projects
    •
    Dispatch Time
    Approximately 1 Week
    Technical Information

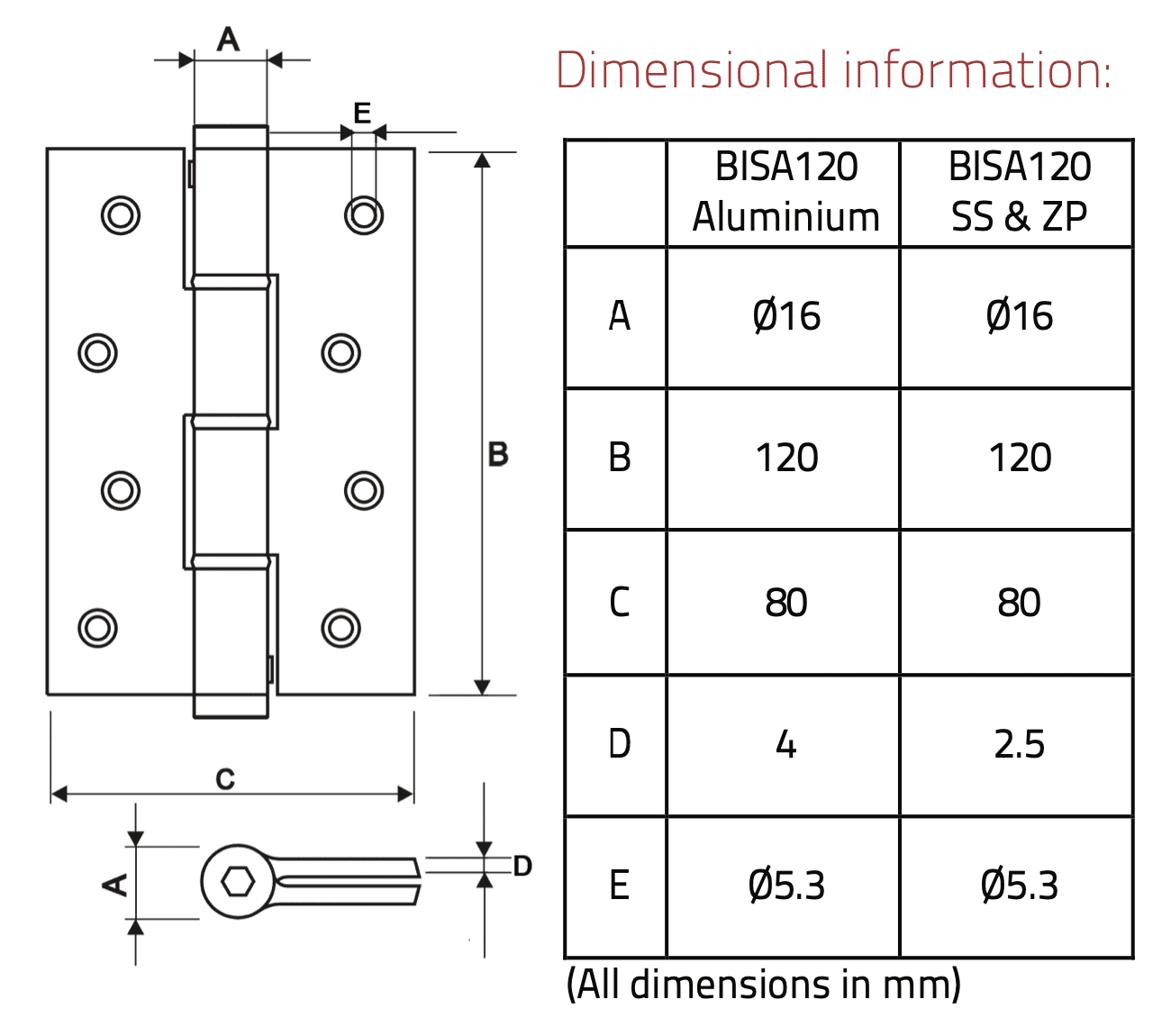

    Technical Drawing
    View details
