Justor Wall Mounted Spring Hinge-Max Weight 39kg-1000mm

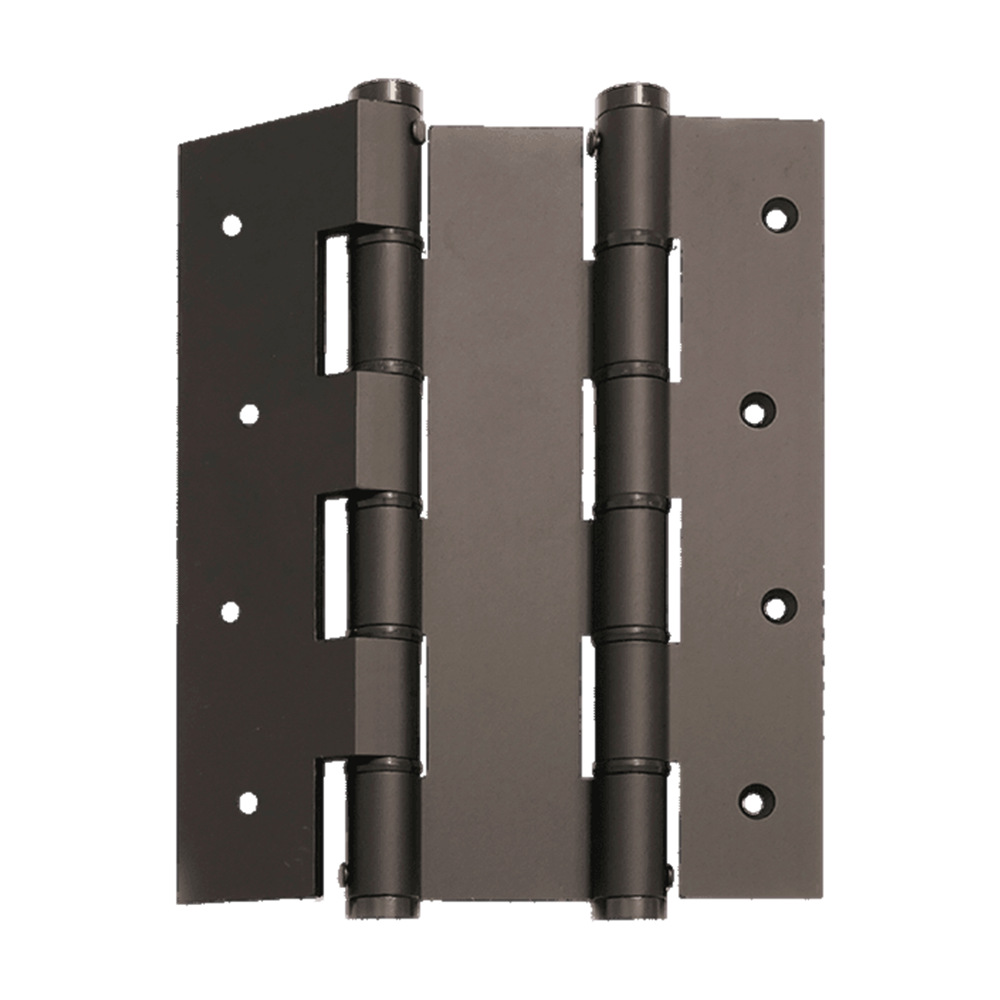

Justor DA180W Wall Mnt Double Action Spring Hinge: Black in Black Anodised

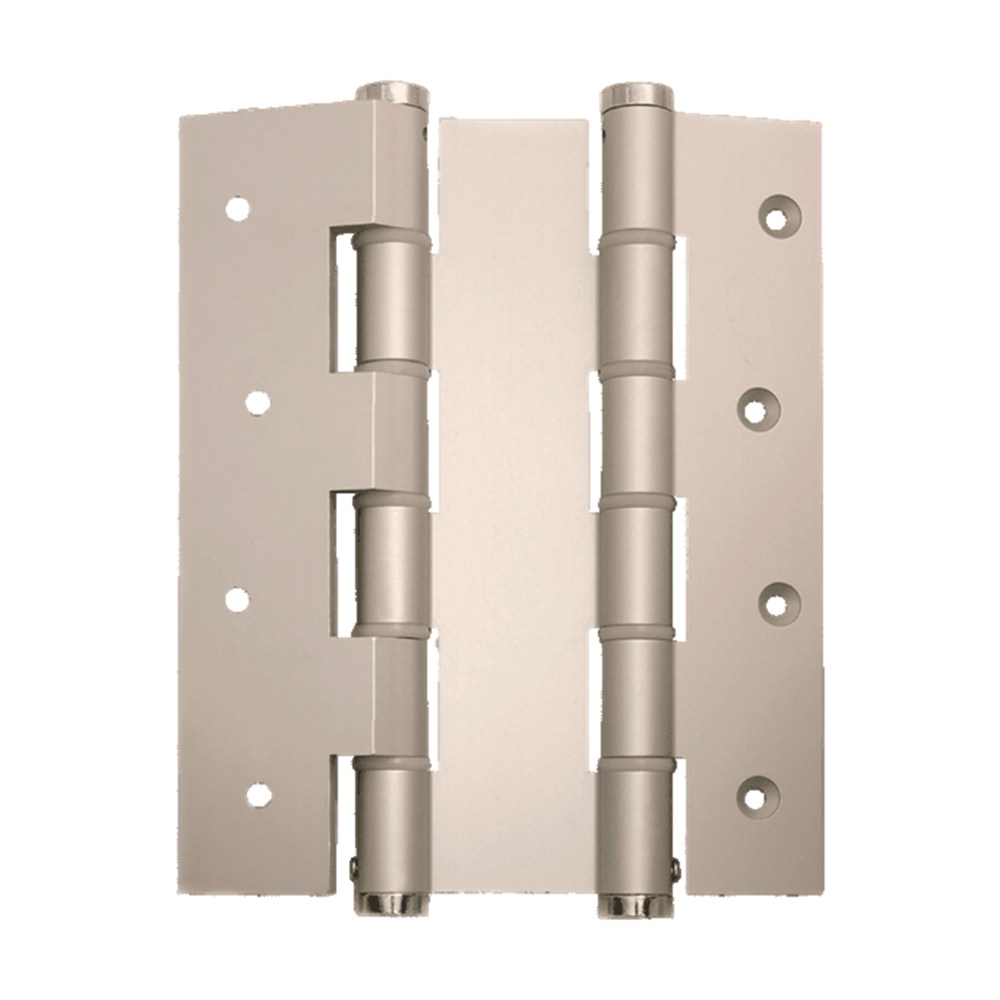

Justor DA180W Wall Mnt Double Action Spring Hinge: Silver in Silver Anodised

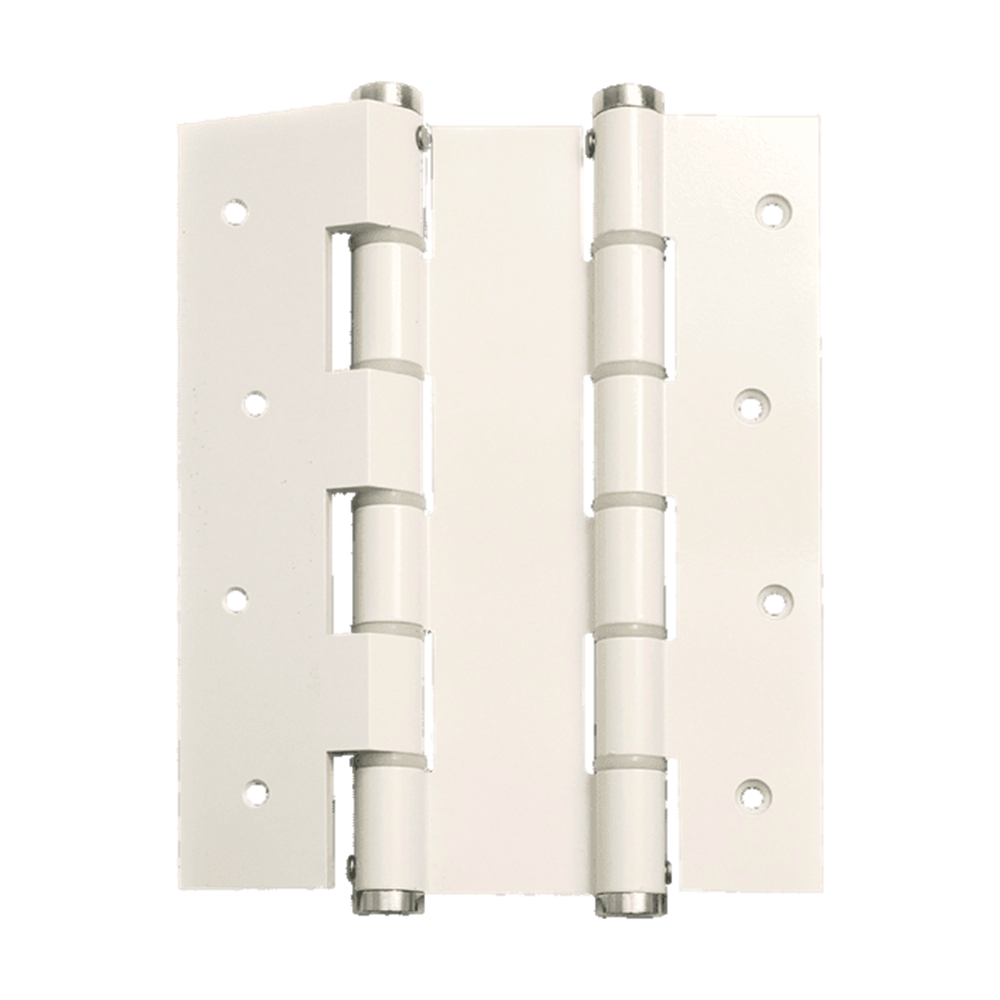

Justor DA180W Wall Mnt Double Action Spring Hinge: White in White Powder Coat

Justor Wall Mounted Spring Hinge-Max Weight 39kg-1000mm

Finish: Black Anodised
$164.95
By Bellevue Architectural
SKU: BIDA180WBLK

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description
  • Spring hinge that mounts to any flush surface (no jamb)
  • Torsion spring not coil spring (tested to 500,000 cycles)
  • Automatically closes door
  • Variable closing speed
  • 90º and 180º working aperture
  • Suitable with timber and aluminium door
  • Resistant to extreme climates (cold & humidity)
  • Suitable for residential and commercial.
  • BIDA180W – 25 to 35mm thick doors
  • BIDA180W supports up to 39kg for a 1000mm wide door (subject to door specs, see weight information)
  • BIDA180WA – 35 to 45mm thick doors
  • BIDA180WA supports up to 34kg for a 1000mm wide door (subject to door specs, see weight information)
  • Quick & simple installation
  • Repair kits available including spring, nylon or stainless spacer, caps & locking pins
    •
    Dispatch Time
    Approximately 1 Week
    Technical Information

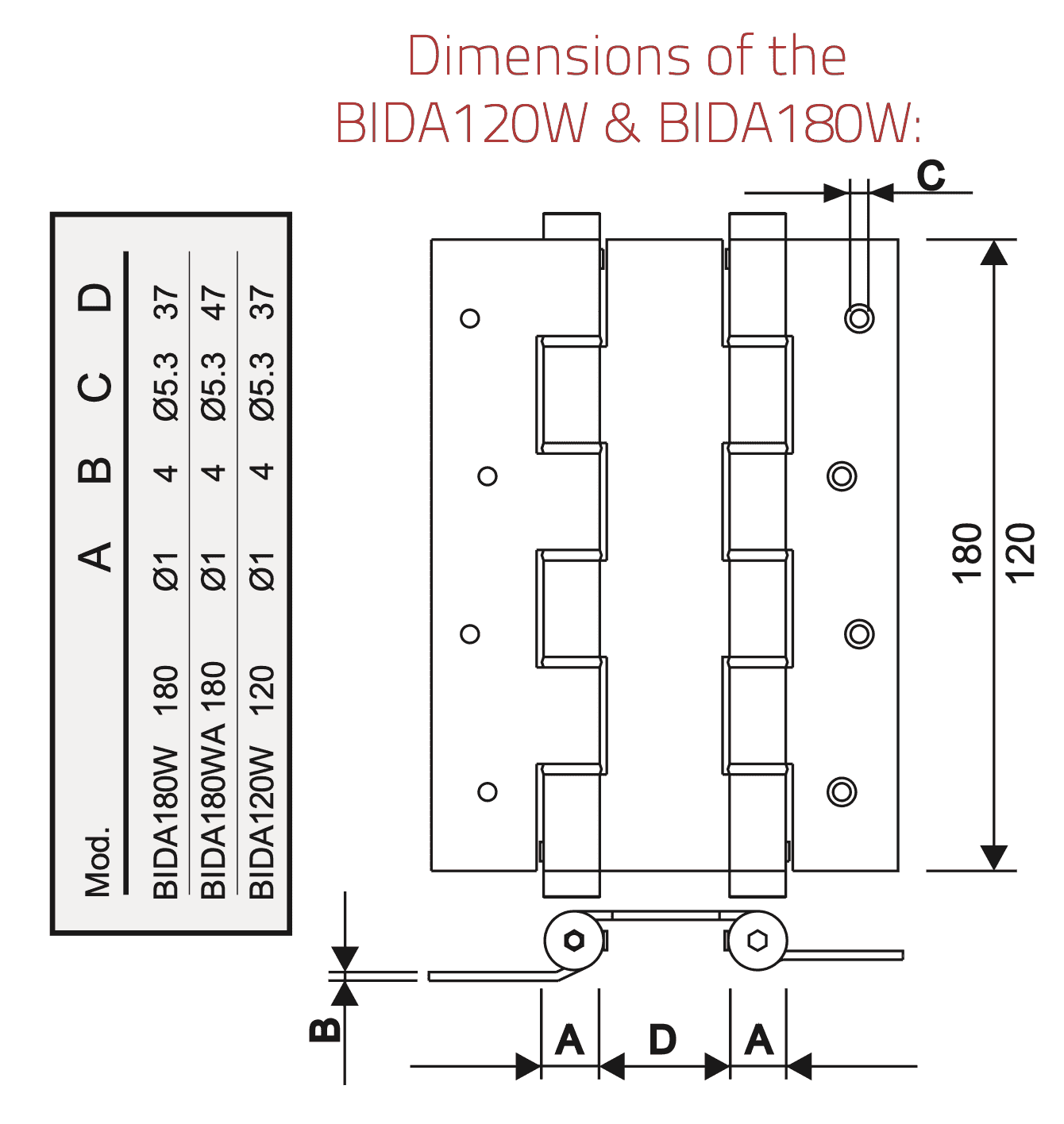

    Technical Drawing
    View details
