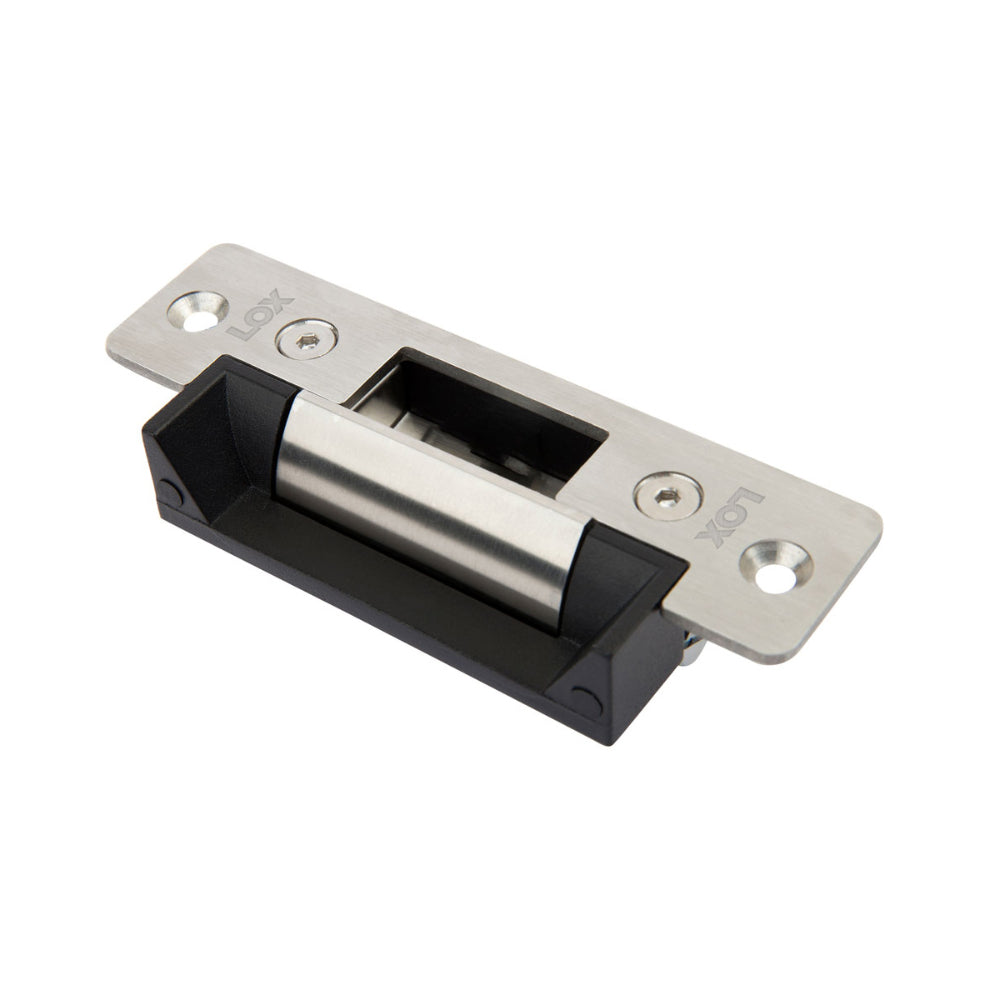

Lox ES10 Ansi Multi-Function Electric Strike, Weather resistant, Non Monitored, 12V/24V, Power to Open/Power to Lock 125L x 42W x 35D in

LOX ES10 Electric Strike Non-Monitored 12/24V DC

LOX ES10 Electric Strike Non-Monitored 12/24V DC

The ES10 series electric strikes are designed for use with all access control systems. Retrofit compatible with FSH and Padde.

Features:

  • Stainless steel faceplate.
  • Fail safe/fail secure is changeable on site.
  • Suitable for use on hinged doors to work with an extensive range of locks.
  • Successfully fire rated up to 4hrs on fire door assemblies.

    • Specifications:

  • Dual voltage 12/24VDC 12VDC = 200mA 24VDC = 100mA
  • Non-Monitored Weather Resistant IP56
  • Fire rated up to 4 hours
  • Power to lock/power to open field selectable
  • Stainless steel faceplate
  • Stainless steel striker
  • Operational temp range -20DEG.C to 60DEG.C
  • Solenoid can be continuously powered
  • Optional extension lips
  • Self adhesive installation template
  • Includes tab mounting kit
  • Pre-drilled for extension lips
  • Holding strength up to 1200kg tested 1 Million Cycles
  • ES10 is suitable for 18mm latch with a 3mm door gap
    •
    $173.56
    $173.56 $173.56
    Save 0
    Sold out
    Tax included.

    Downloads:

    Techinical Drawing
