100A Series Lock and Indicator Set ? With Screw Fixings in Satin Chrome

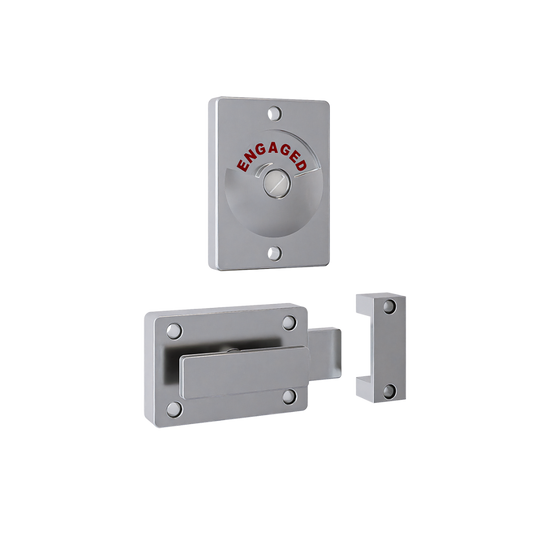

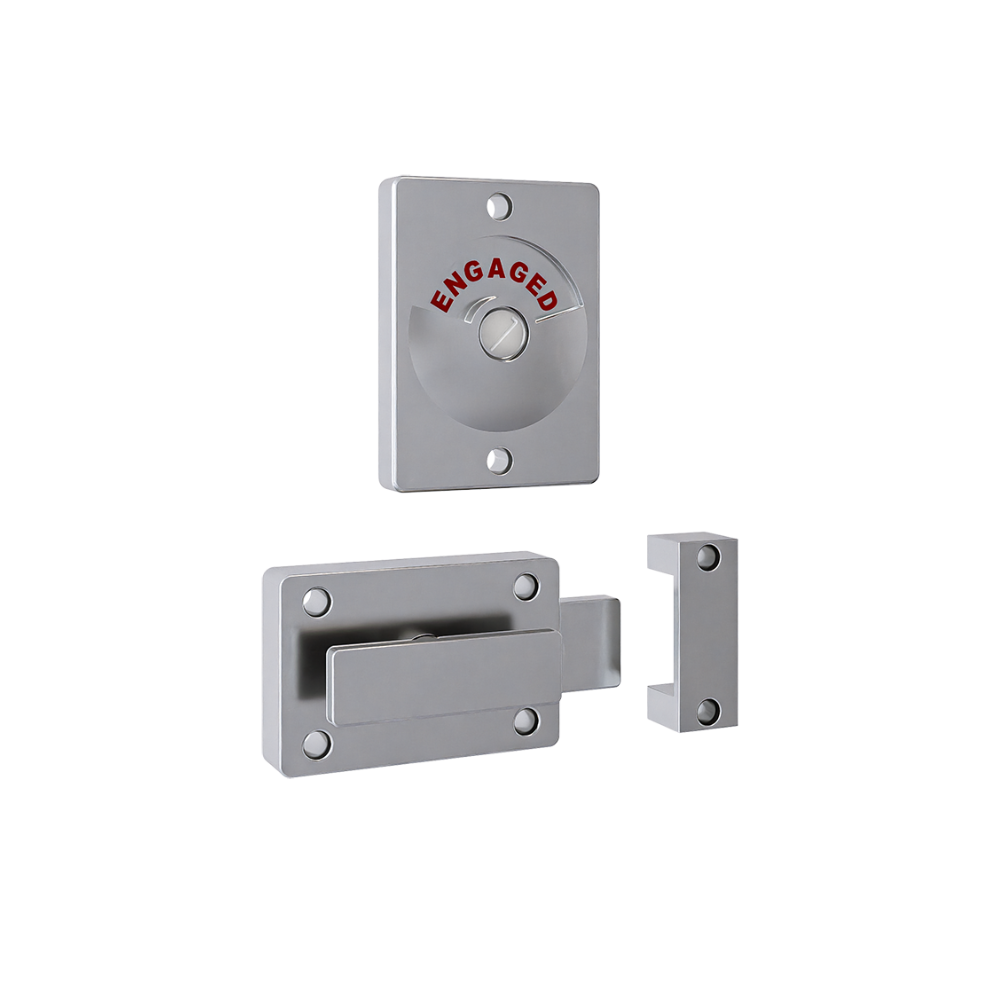

Metlam 100A Series Lock and Indicator Set in Satin Chrome

Includes:

  • 1 x Indicator
  • 1 x Turnbolt
  • 1 x Staple

    • Specifications:

  • Indicator Height: 61mm
  • Indicator Width: 45mm
  • Indicator Projection: 8mm
  • Indicator Centre to Centre: 50mm
  • Turnbolt Height: 41mm
  • Turnbolt Width: 63mm
  • Turnbolt Projection: 32mm
  • Turnbolt Throw: 19mm
  • Staple Height: 41mm
  • Staple Width: 15mm
  • Staple Projection: 14mm
  • Fixing: Visible Screw Fix
    •
    $25.52
    $25.52 $25.52
    Save 0
    Sold out
    Tax included.
    • SKU:
      100A.LOCK.SCP
    • Vendor:
      Metlam

    Downloads:

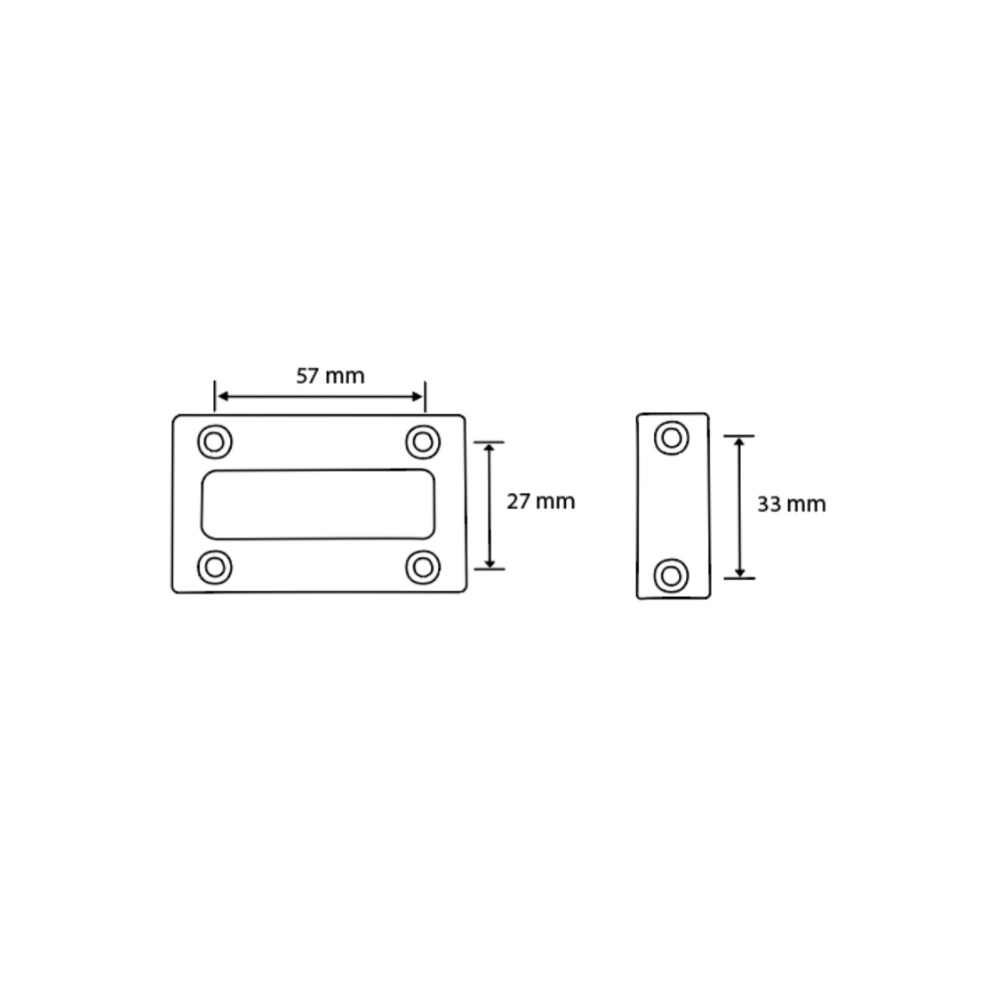

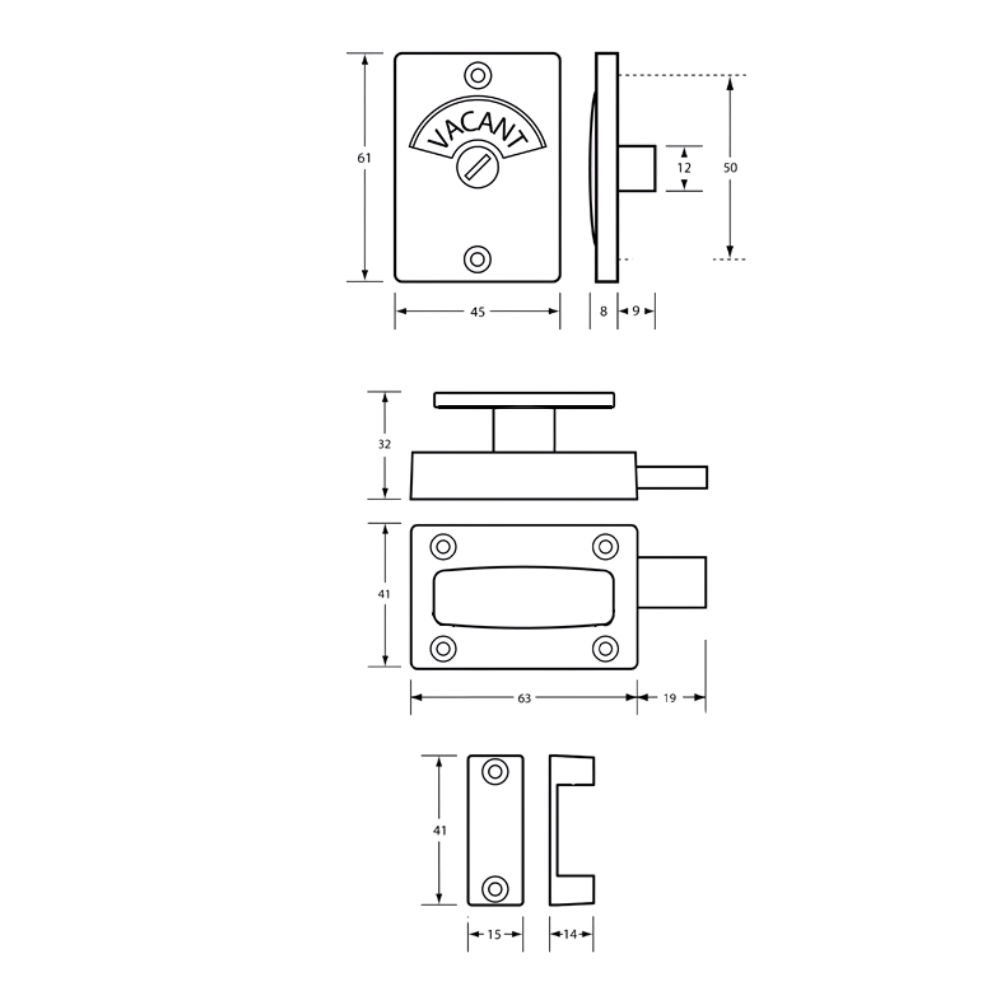

    Techinical Drawings

    Technical Drawings
