209 Double Action Spring Hinge (Each) ? With Screw Fixings in Satin Stainless

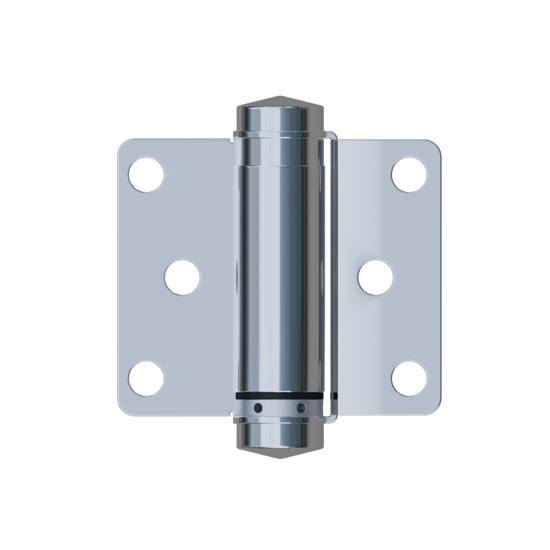

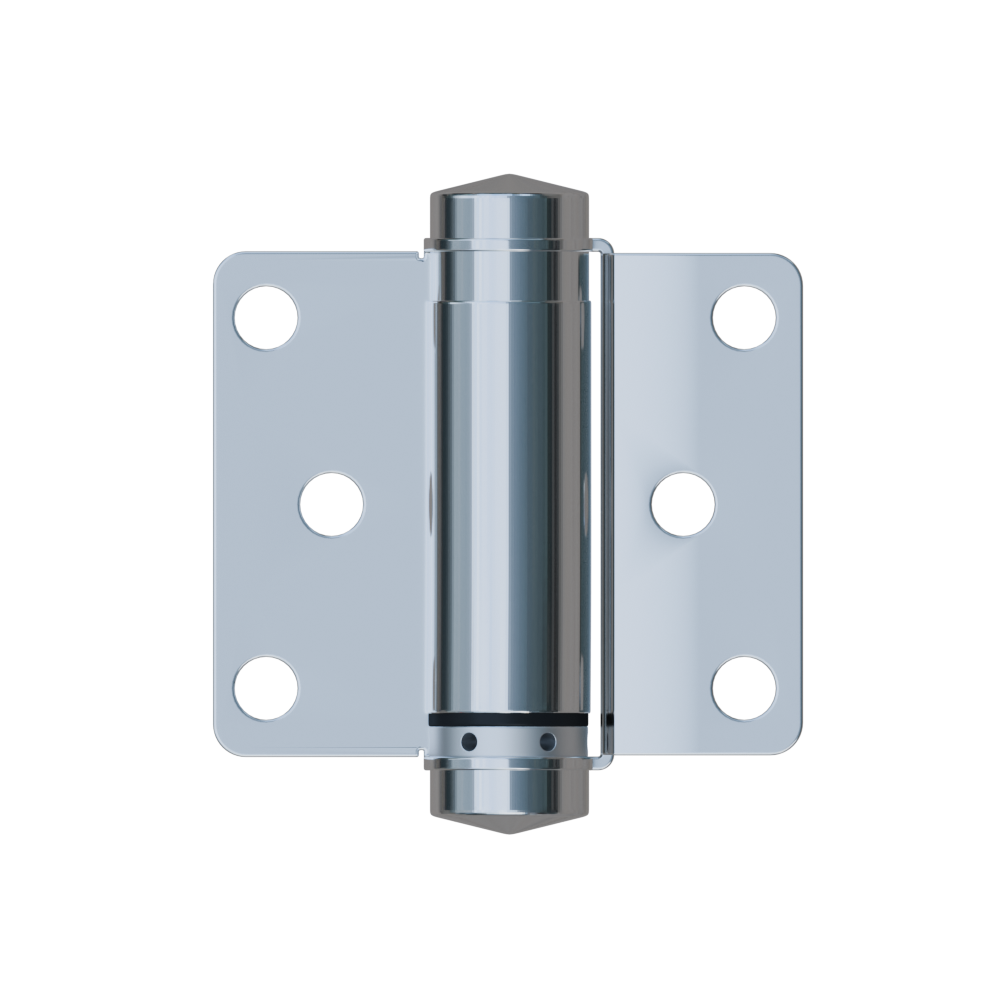

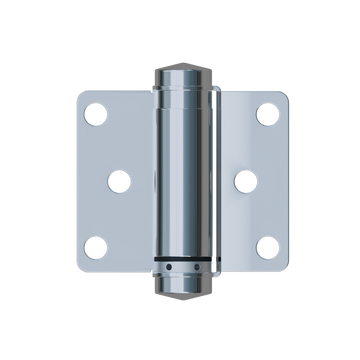

Metlam 209 Double Action Spring Hinge - Visible Fix

A versatile range of Toilet Partition Hardware Hinges designed to suit various functions, styles, and budgets. Our selection includes gravity-assisted and spring-assisted hinges, ensuring smooth door operation with the option of hold open or hold closed. Some hinges also feature lift-off capability for easy removal and maintenance, while spring hinges allow for adjustable tension to meet different needs. Built for durability and performance, our hinges provide practical and stylish solutions for commercial washrooms.

Specifications:

  • #304 Grade Stainless Steel
  • Internal face-mounted
  • Spring-assisted hold closed
  • Allowance for both outward and inward opening
  • Returns door to the closed position
  • Adjustable tension
  • 13mm Screw Fixings Supplied
  • Suitable for 13mm Board Only

    • Load Rating

  • 15kg per Hinge
  • For optimum performance
  • 2 hinges per door up to 30Kgs
  • 15kg maximum load per hinge for doors over 30kg
  • Note: 3 Hinges per door is recommended to prevent door bowing
    •
    $59.29
    $59.29 $59.29
    Save 0
    Sold out
    Tax included.
    • SKU:
      209.DBLACT.SS
    • Vendor:
      Metlam

    Downloads:

    Techinical Drawing
