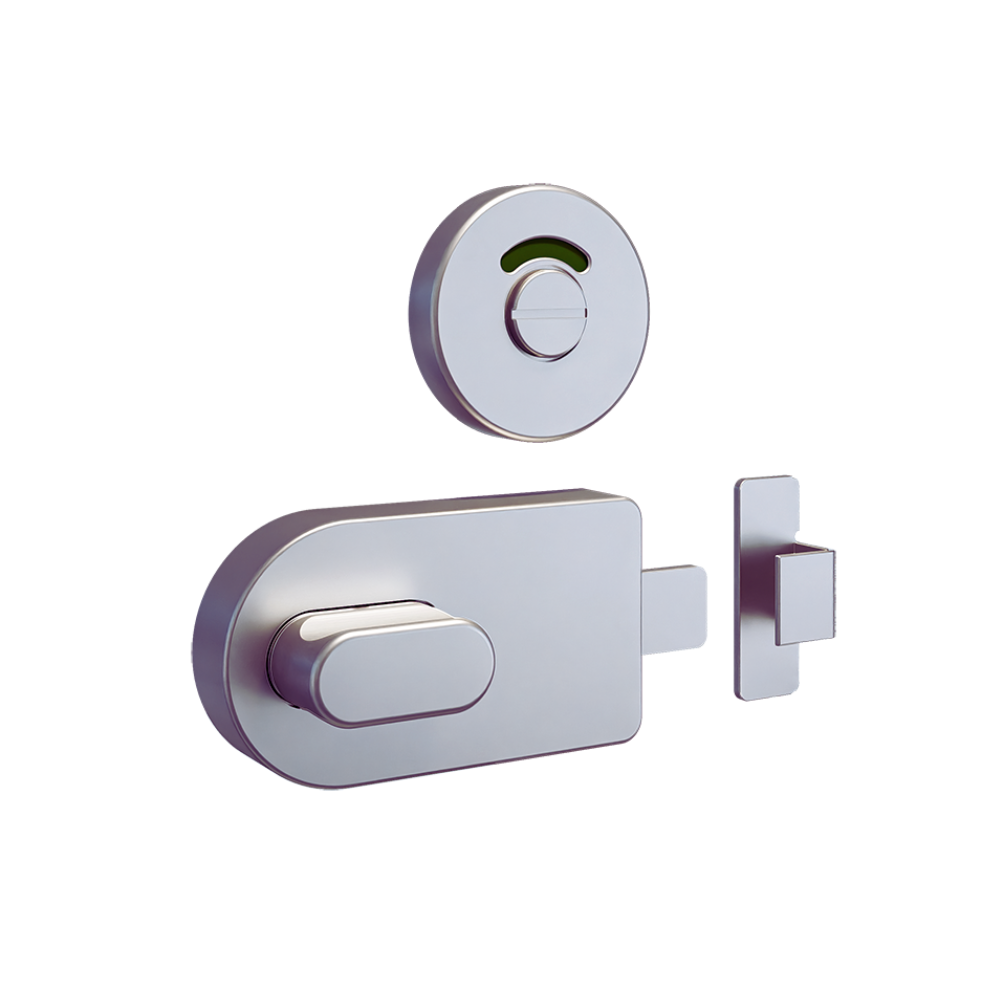

Metlam 700 Series Lock and Indicator Set

700 Series Lock and Indicator Set with Bumper ? With Screw Fixings in Satin Stainless

Metlam 700 Series Lock and Indicator Set

$49.94
Stock availability: Available
Dispatch: Approximately 1 week.
By Metlam
SKU: 700.LOCK.SS
Description

Includes:

  • 1 x Indicator
  • 1 x Integrated Lock and Bumper
  • 1 x Lift Off Staple

    • Specifications:

  • Indicator Material: 304 Stainless Steel
  • Indicator Diameter: 52mm
  • Indicator Center to Center: 33mm
  • Indicator Projection: 12mm
  • Integrated Lock Material: 304 Stainless Steel
  • Integrated Lock Height: 50mm
  • Integrated Lock Width: 91mm
  • Integrated Lock Projection: 36mm
  • Integrated Lock Bolt Throw: 19mm
  • Integrated Lock Bumper Width: 21mm
  • Integrated Lock Bumper Depth: 2mm
  • Staple Material: 304 Stainless Steel
  • Staple Height: 49mm
  • Staple Width: 17mm
  • Staple Projection: 15mm
  • Satple Centre to Centre: 36mm
  • Fixing: Concealed Screw Fix
  • Finish: Satin Stainless Steel
    •
    Technical Information

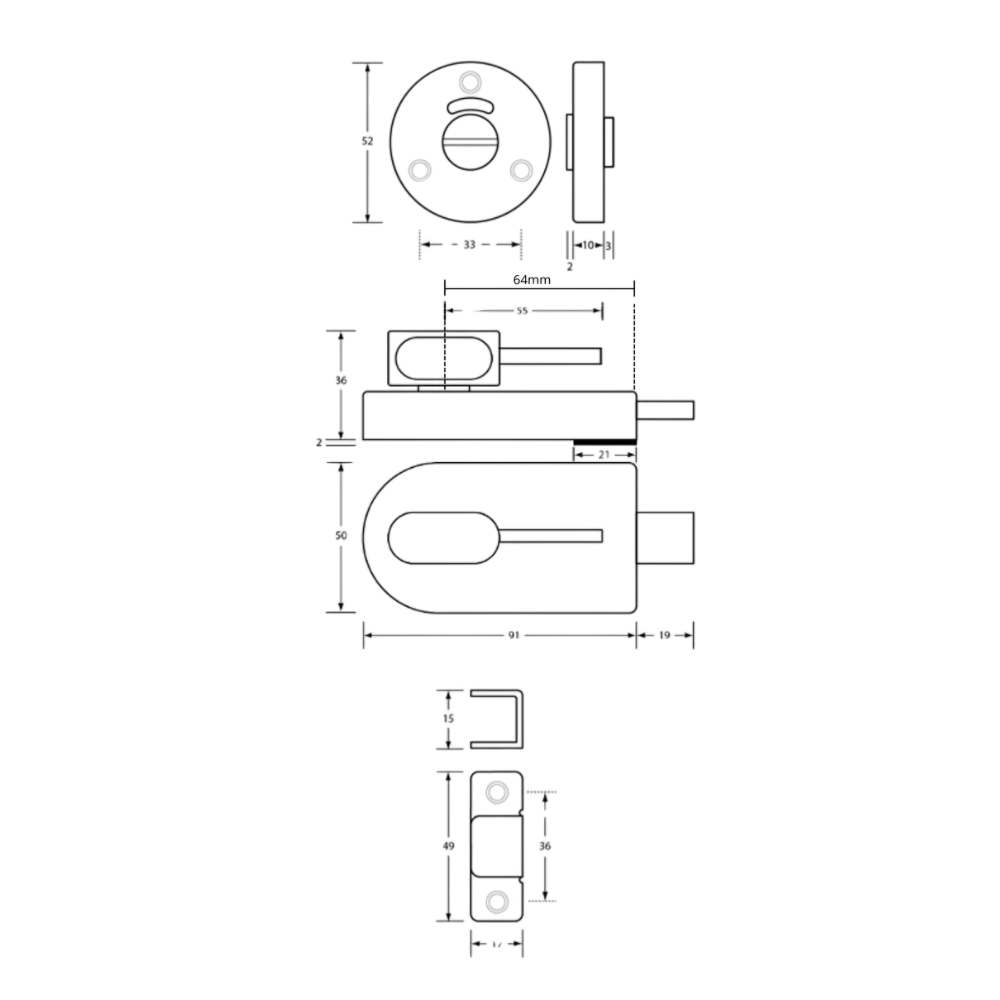

    Techinical Drawings
    View details
