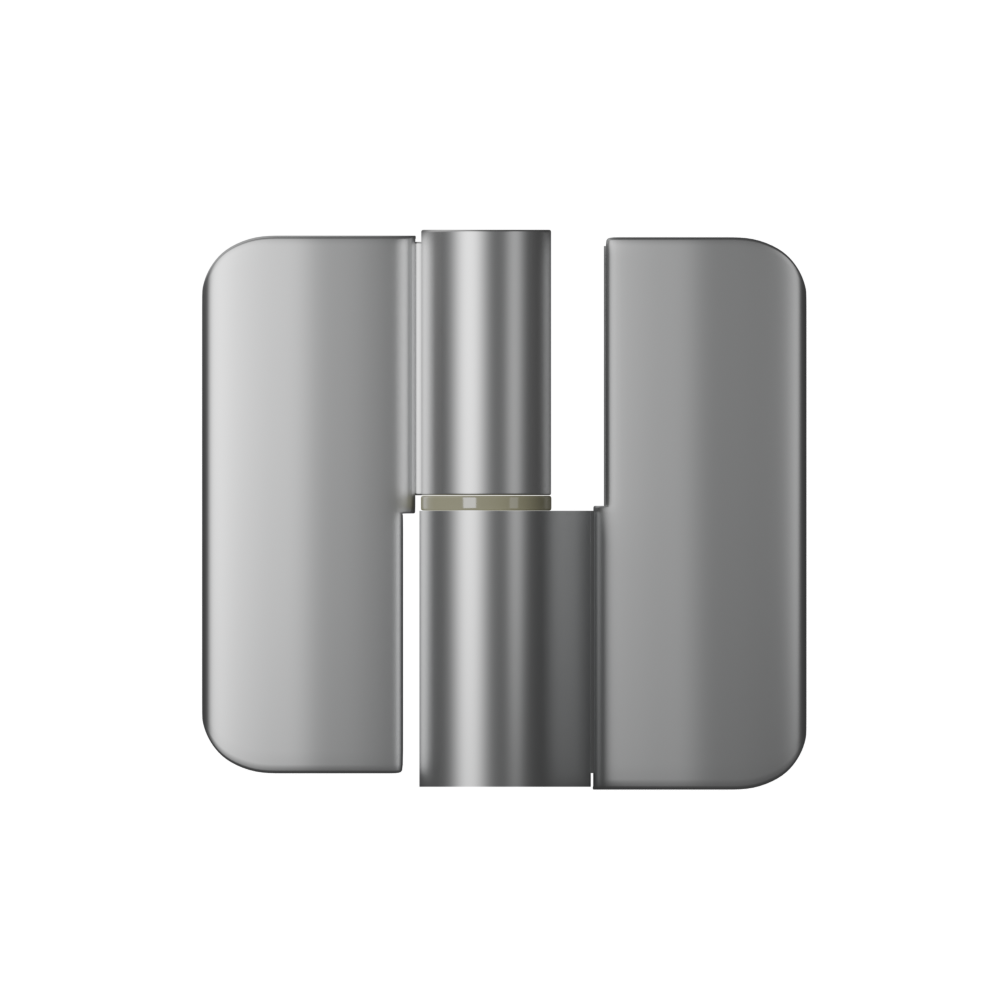

Overlapping Lift Off Spring Hinges (Each) to suit 13mm Thickness Material ? With Screw Fixings in Satin Chrome

Metlam Overlapping Lift Off Spring Hinge

A versatile range of Toilet Partition Hardware Hinges designed to suit various functions, styles, and budgets. Our selection includes gravity-assisted and spring-assisted hinges, ensuring smooth door operation with the option of hold open or hold closed. Some hinges also feature lift-off capability for easy removal and maintenance, while spring hinges allow for adjustable tension to meet different needs. Built for durability and performance, our hinges provide practical and stylish solutions for commercial washrooms.

Specifications:

  • 86mmH x 93mmW x 35mmD
  • Suits 13mm board
  • Diecast Zinc, Brass Shaft
  • Nylon Inserts, ABS Snap-On Covers
  • Screw Fix or Bolt Through
  • 13mm Screw Fixings Supplied
  • Lift Off
  • Minimum Hinge Clearance For Lift Off Hinges: 40mm
  • Available in Hold Open or Hold Closed - Please Specify
  • Available in Left Hand or Right Hand - Please Specify
  • For 18mm or 33mm board please add OL105 Spacer

    • Load Rating

  • 15kg per Hinge
  • For optimum performance
  • 2 hinges per door up to 30Kgs
  • For doors over 30Kg allow for 15Kg per hinge
  • Note: 3 Hinges per door is recommended to prevent door bowing
    •
    $31.57
    $31.57 $31.57
    Save 0
    Sold out
    Tax included.
    • SKU:
      OL105.13
    • Vendor:
      Metlam

    Downloads:

    Techinical Drawing
