Metlam Xcel Slide Lock and Emergency Release Set

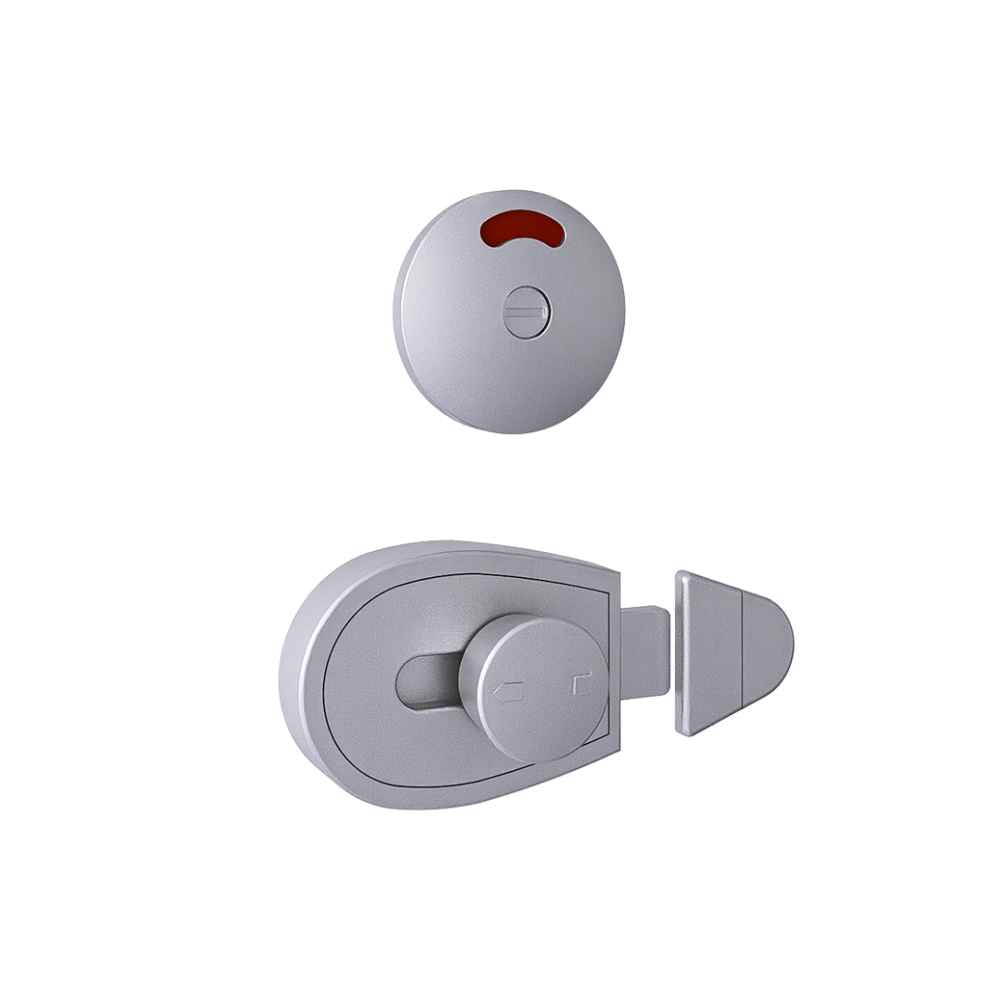

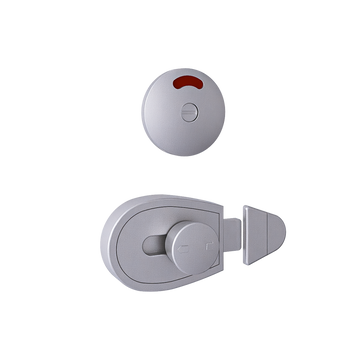

Xcel Slide Lock & Indicator Set ANMB - With Screw Fixings in Antimicrobial Coating

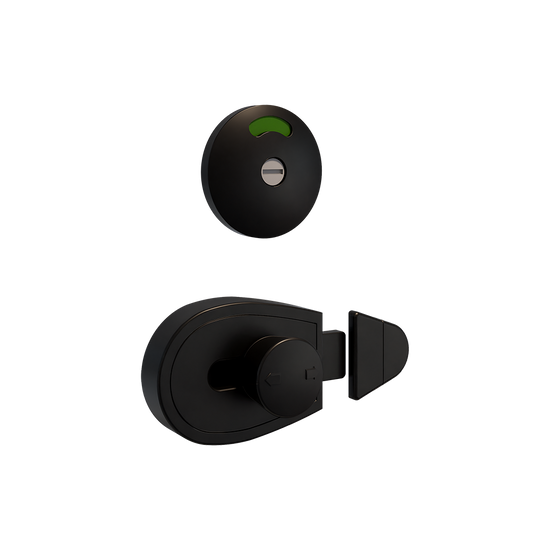

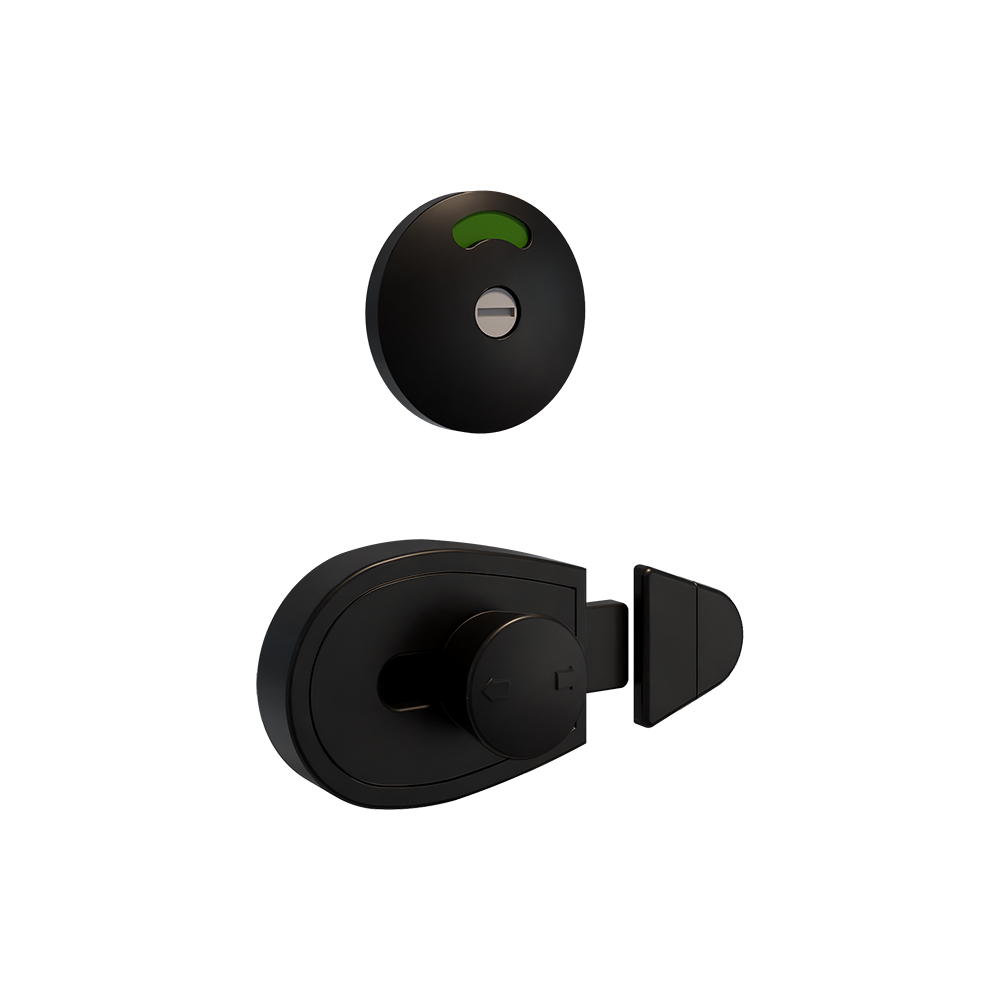

Xcel Series Slide Lock and Indicator Set ? Designer Black - With Screw Fixings in Designer Black

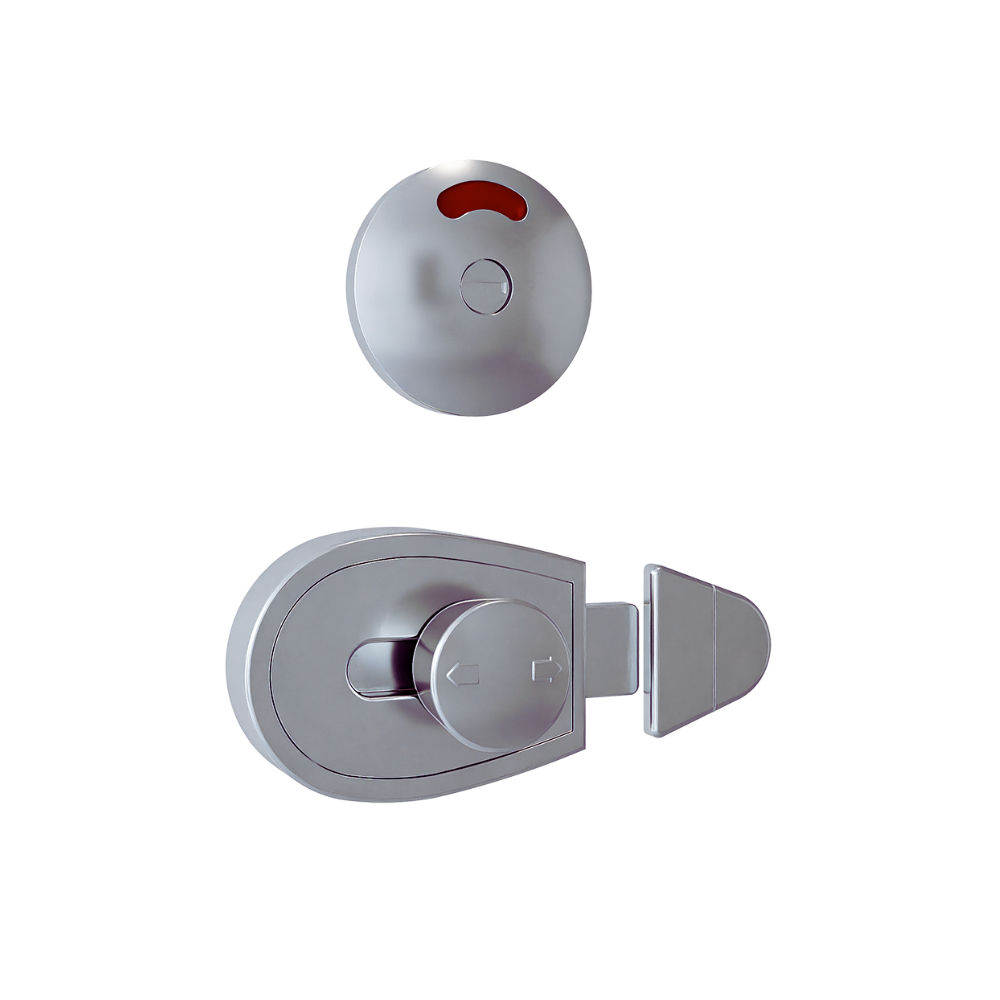

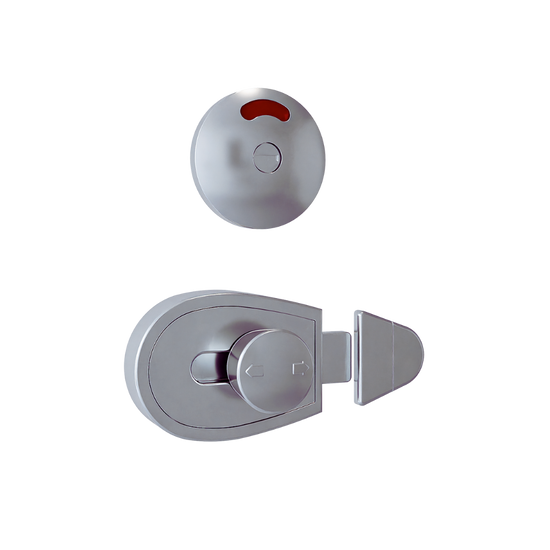

Xcel Series Slide Lock and Indicator Set ? Satin Chrome Plate - With Screw Fixings in Satin Chrome

Metlam Xcel Slide Lock and Emergency Release Set

Product Finish: Antimicrobial Coating
$39.71
Stock availability: Available
Dispatch: Approximately 1 week.
By Metlam
SKU: XCEL.SLIDELOCK.ANMB
Description

Includes:

  • 1 x Indicator Easy-Glide
  • 1 x Slide Lock
  • 1 x Staple

    • Features:

  • Indicator has Anti pull through fixing plate
  • Slide Lock has Unique Easy-Glide Slide Lock forrestricted hand mobility, limb loss and hygiene protection
  • Raised directional arrows for vision impaired
  • The universal system provides design uniformity Consistent installation saves time
  • Staple has Functional modern design
  • Supplied with universal fixing pack to suit board thickness variation between 12mm to 36mm

    • Specifications:

  • Material: Diecast Zinc, Alloy ZP3 ABS Snap-On Cover
  • Indicator Diameter: 50mm
  • Indicator Projection: 10mm
  • Indicator Depth: 8mm
  • Indicator Centre to Centre: 38mm
  • Slide Lock Height: 50mm
  • Slide Lock Center to Center: 43mm
  • Bolt Throw: 24mm
  • Staple Center to Center: 8mm
  • Staple Width: 28mm
  • Staple Height: 36mm
  • Staple Projection: 15mm
  • Mounting: Concealed Screw Fix

    • Available Finish:

  • Matt Black
  • Satin Chrome Plate
  • Satin Pearl Plate
    •
    Technical Information

    Techinical Drawings
    View details
