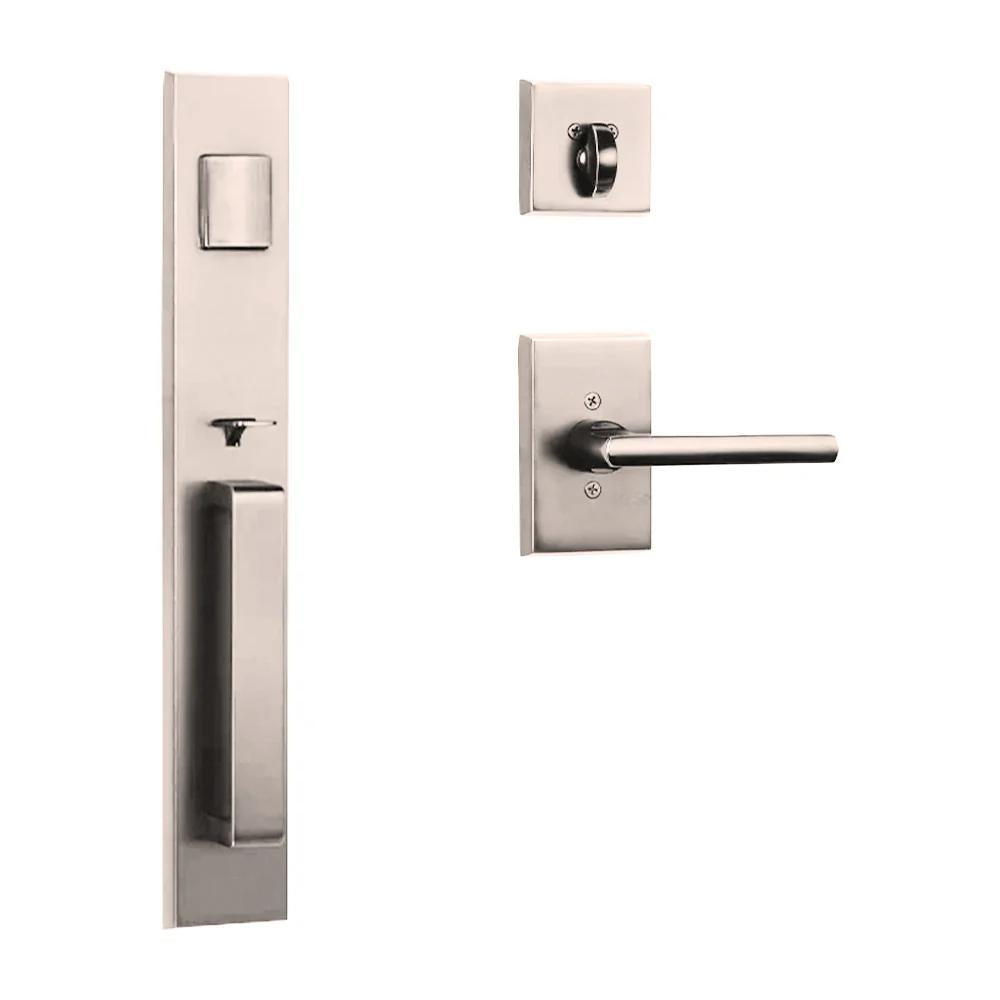

N2LOK Agrigento Entrance Set - Straight Lever

Agrigento Handleset S/C Straight Lever DSN BP in Satin Nickel
Agrigento Entry S/C w/Straight Lever VB BP in Venetian Bronze

N2LOK Agrigento Entrance Set - Straight Lever

Finish: Satin Nickel
$792.99 $891.00
By N2LOK Hardware
SKU: EHN28712.AO.SLDSNBP

Pickup available at 1a, 273-275 Wickham Rd

Refer to dispatch estimate
Description

Features:

  • 3 identically cut keys supplied with each entry handle suite
  • Standard 60mm spring latch
  • Made of solid forged brass substrate for enduring style & strength
  • Supplied with “straight” internal lever or a egg knob/flat knob in place of the lever
  • 6-pin solid brass cylinder with the popular C4 keyway for more security
  • Note levers needed to be Handed
  • Suitable for door thickness 35-45mm (Extension kit available upon request)

    • Specifications:

  • Cylinder Projection: 14mm
  • Thumb Turn Projection: 33.5mm
  • Lever Projection: 64.7mm
  • Handle Projection: 40mm
  • Overall Height: 480mm
  • Overall Width: 75mm
  • Door Thickness: 45 to 55mm
  • Backset: 60mm - 70mm Adjustable
    •
    Dispatch Time
    Approximately 1 week.
    Technical Information

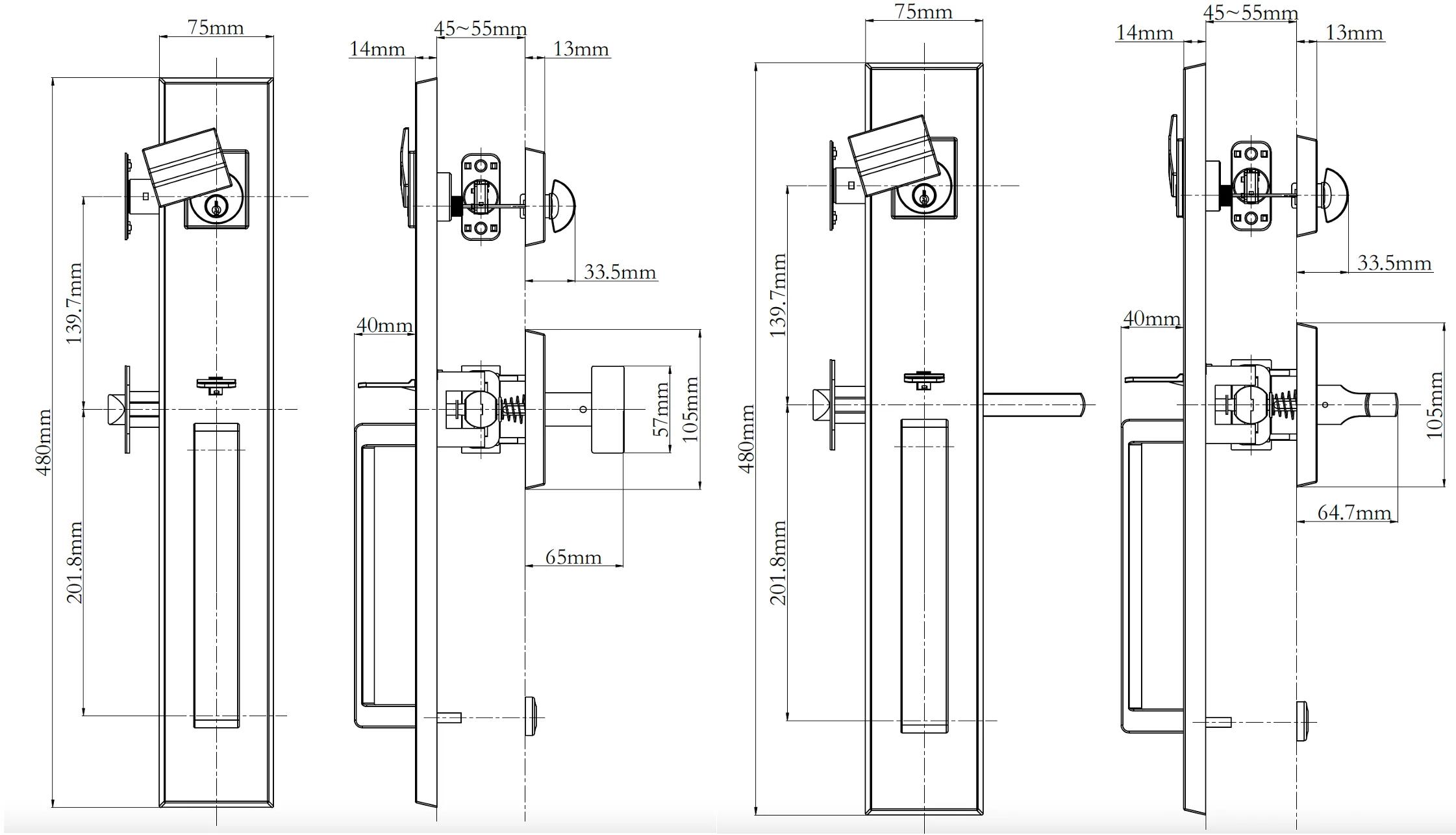

    Techinical Drawing
    View details
