Raven RP10
  • Specification
  • Downloads

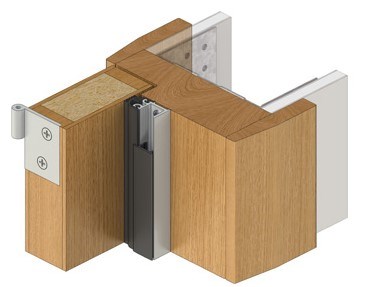

An effective acoustic door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency. RP10 can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit. RP10 has a tamper resistant, rigid PVC cover strip (SE). Can be used on all four sides of the door to form a bulk head seal. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

  • Acoustic AUS/NZ:NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1). FRL & FRR-/240/30 and FD240.
  • Energy: NCC Pt. 3.12.3.3 & J3.4.
  • For Painted finish, Minimum and surcharges apply

RAVEN RP10 Perimeter Seal 1000mm

SKU WSRP10.1000.CA

In stock, within 1 week


Clear AnodisedBronze AnodisedPainted
1000mmSingle Door Set - Sides 2100mm, Top 1000mm1250mm2000mm2250mm2500mm2750mm3000mmDouble Door Set - Sides 2100mm, Top 2100mmLong Double Door Set - Sides 2100mm, Top 2750mmLong Single Door Set - Sides 2750mm, Top 1000mm

Total Price

$67.62
