Raven RP10Si
  • Specification
  • Downloads

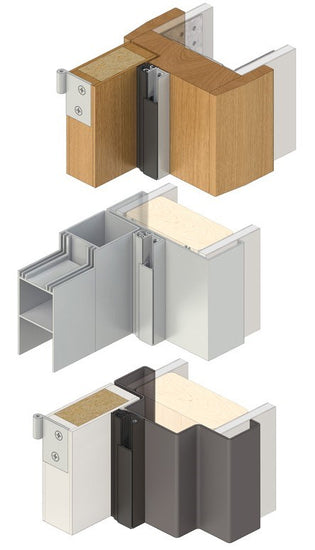

An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency. RP10Si can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit, RP10Si has a tamper resistant, rigid PVC cover strip (SE). Can be used on all four sides of the door to form a bulk head seal. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

  • Location:Head and jambs of single and double butt hinged doors.
  • Min/Max Gap: 0mm to 10mm.
  • Finish: Satin clear (silver), bronze or black anodised aluminium (15µm) or paint at extra cost.
  • Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
  • Seal: RP310Si. Black or light grey silicon rubber (SE).
  • Sizes: Available in door set sizes or stock lengths.
  • Cert. GVYI.R37913.
  • ANSI/BHMA A156.22.
  • Acoustic AUS/NZ:NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/60 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.
  • For Painted finish, Minimum and surcharges apply

RAVEN RP10Si Perimeter Seal 1000mm

SKU WSRP10Si.1000.CA

In stock, within 1 week


Clear AnodisedBronze AnodisedLight GreyPaintedBlackGrey
1000mm3000mmDouble Door Set - Sides 2100mm, Top 2100mmLong Double Door Set - Sides 2100mm, Top 2750mmLong Single Door Set - Sides 2750mm, Top 1000mmSingle Door Set - Sides 2100mm, Top 1000mm2250mm1250mm2500mm

Total Price

$70.92
