Raven RP10Si - Door Sets

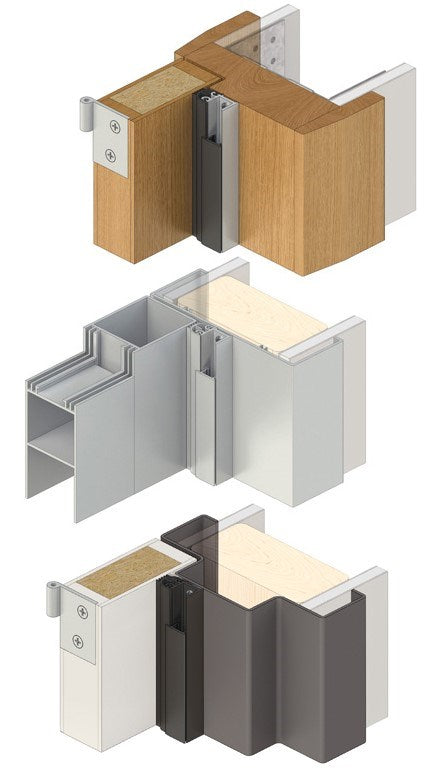

An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency. RP10Si can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit, RP10Si has a tamper resistant, rigid PVC cover strip (SE). Can be used on all four sides of the door to form a bulk head seal. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

• Location:Head and jambs of single and double butt hinged doors.
• Min/Max Gap: 0mm to 10mm.
• Finish: Satin clear (silver), bronze or black anodised aluminium (15µm) or paint at extra cost.
• Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
• Seal: RP310Si. Black or light grey silicon rubber (SE).
• Sizes: Available in door set sizes or stock lengths.
• Cert. GVYI.R37913.
• ANSI/BHMA A156.22.
• Acoustic AUS/NZ:NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717-1.
• Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
• UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
• FRL & FRR-/240/60 and FD240.
• Gasket flammability index 1 when tested to AS1530.2.
• SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
• EnergyNCC Pt. 3.12.3.3 & J3.4.
• For Painted finish, Minimum and surcharges apply
