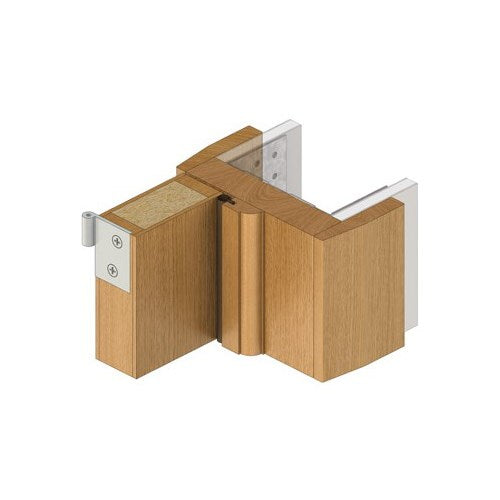

A timber door stop frame seal
suitable for plain or rebated frames.
Can be used in conjunction with
Raven door bottom seals and
astragals.
Note: If fixing to rebated frames of
single doors, specify a long backset
door latch.
-
Location: Head and jambs of single
and double butt hinged doors.
-
Min/Max Gap: 0mm to 7mm.
(Compression 1mm to 3mm).
-
Finish: Genuine plantation
Tasmanian oak.
-
Fixing:Nail fix. Zinc plated nails
supplied.
-
Seal:RP320. Brown silicon rubber.
-
Acoustic AUS/NZ:NCC Spec. F5.5.
UK/EU: Approved Document E. Rated
to BS EN ISO 717-1.
-
Smoke AUS/NZ:NCC Spec. C3.4 for
smoke doors. NZ BC Compliance Doc.
C/AS1 6.19.2(b).
-
UK/EU: Approved Document B.
-
Energy NCC Pt. 3.12.3.3 & J3.4.
RAVEN RP113 Perimeter Seal, Single Door Set 5200mm
