Raven RP115
  • Specification
  • Downloads

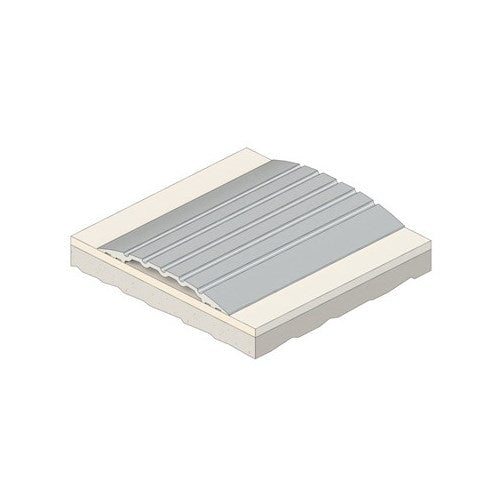

Low profile threshold plates that can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.

  • Location:Door sill.
  • Finish:Satin clear (silver) or bronze anodised aluminium (25µm).
  • Fixing: Screw fix or builders adhesive for concealed fixing (user determined). Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
  • Sizes: Available in stock lengths.
  • Cert. GVYI.R37913
  • Access & Mobility AUS/NZ:NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2. UK/EU: Approved Document M.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30 and FD180.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.

RAVEN RP115 Threshold Plate 1000mm

SKU WSRP115.1000.CA

In stock, within 1 week


Clear Anodised
1000mm1250mm1750mm2000mm3000mm

Total Price

$74.46
