Raven RP117Si
  • Specification
  • Downloads

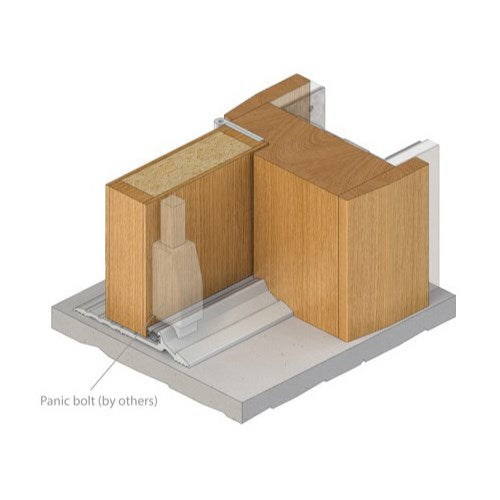

The RP117Si is a weather proof threshold plate seal suited to outward opening butt hinged doors. It is ideal for use with a panic type exit device (by others). For acoustic applications the void under the threshold should be filled with sound foam or other suitable material (by others). The RP67 drip strip should be considered for above the doorway if there is no eave. Ideal for use in conjunction with the Raven RP118Si perimeter seal and Raven astragals.

  • Location:Door sill of outward opening doors. (butt hinges recommended).
  • Min/Max Gap:Compression 0mm to 2mm.
  • Fixing:Satin clear (silver) anodised aluminium (25µm).
  • Seal: RP308Si. Grey silicon rubber (SE).
  • Sizes:Available in stock lengths.
  • Cert. GVYI.R37913
  • Access & Mobility NZ:NZ BC Compliance Doc. D1/AS1 1.3.2.
  • UK/EU: Approved Document M.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire & Smoke AUS/NZ:NCC Spec. C3.4. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B.
  • FRL & FRR-/240/30.
  • Gasket flammability index 1 when tested to AS1530.2.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.
  • Energy NCC Pt. 3.12.3.3 & J3.4.

RAVEN RP117Si Threshold Plate 1000mm

SKU WSRP117Si.1000.CA

In stock, within 1 week


Clear Anodised
1000mm2000mm

Total Price

$117.23
