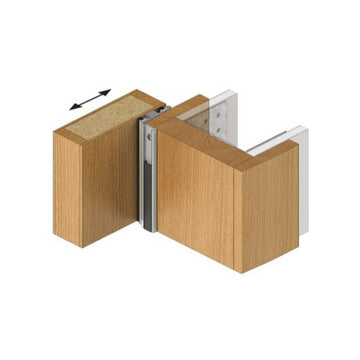

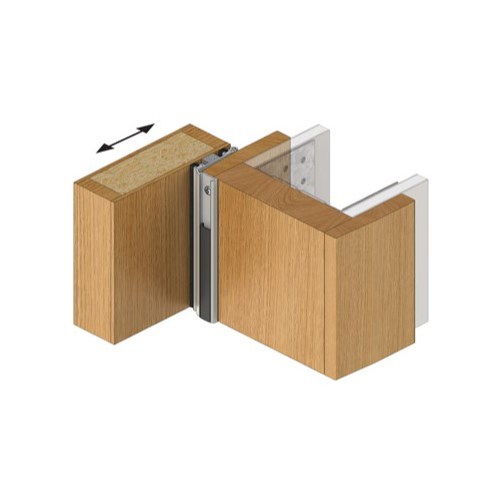

The RP12 has a woven pile weather
strip with unique Quiet-fins for noise
protection. Ideal for sliding doors and
designed to limit noise leakage and
control dust and air movement. The
RP12 is quick and easy to install to
the door or frame.
Can be used in conjunction with a
double row of RP2 seals fitted into
grooves in the door bottom edge
or face mount RP74 to achieve a
complete sealing system.
-
Location: Head and jambs of door
frames.
-
Min/Max Gap: 6mm to 8mm (prior
to installation).
-
Finish:Satin clear (silver), bronze
anodised aluminium (15µm) or paint
at extra cost.
-
Fixing: Concealed screw fix. Zinc
plated, cross recess head S.T. screws
and cover strip supplied. Fixing holes
are pre-slotted to allow the seals to
be fitted accurately and adjustment
to be made for building movement.
-
Seal:Black polypropylene pile with
felt weather fins.
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
RAVEN RP12 Polypile Only 1000mm
