Delta Seal ™
RP120 and RP150 are co-extruded
PVC acoustic and smoke seals.

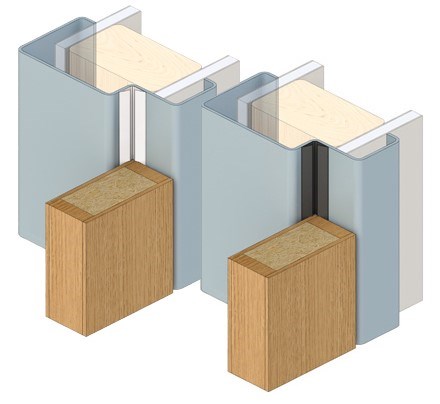

Discreetly located in the protected
corners of rebated timber or steel
door and window frames. RP120
is suitable for new and retrofit
applications.
Can be used in conjunction with
Raven door bottom seals and
astragals and threshold plates.
-
Location: Around rebated frames of
single and double butt hinged doors
and windows.
-
Min/Max Gap:3mm to 5.5mm.
-
Fixing: Aggressive self adhesive
backing tape on both sides of the
carrier.
Note: Contact surface must be clean,
smooth and if painted, well cured. Self
adhesive seals will not adhere to oiled
or alkyd finishes or to easy clean wash
and wear paint surfaces.
-
Seal: Black or white co-extruded
rigid and flexible flame retardant
PVC.
- Cert. GVYI.R37913.
-
Acoustic AUS/NZ:NCC Spec. F5.5.
-
Fire AUS/NZ:Approved Document E. Rated
to BS EN ISO 717-1.
-
UK/EU:Approved Document B. (Tests
above are similar to BS EN 1634-1 &
BS 476 Pt. 20 & 22).
- FRL & FRR-/240/30 and FD240.
-
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”.
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
RAVEN RP120 Perimeter Seal 3000mm
