RAVEN RP120 Batwing Perimeter Seal, Long Single Door Set 6300mm - Sides 2750mm, Top 1000mm in White
1 1

Raven RP120 - Door Sets

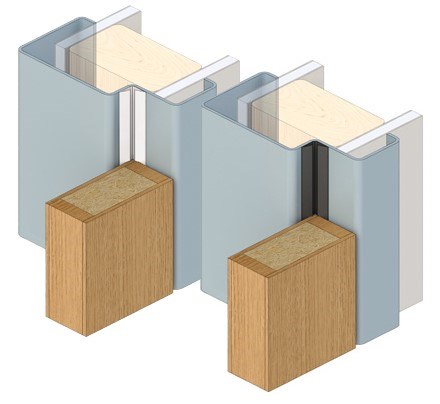

Delta Seal ™ RP120 and RP150 are co-extruded PVC acoustic and smoke seals. Discreetly located in the protected corners of rebated timber or steel door and window frames. RP120 is suitable for new and retrofit applications. Can be used in conjunction with Raven door bottom seals and astragals and threshold plates.

  • Location: Around rebated frames of single and double butt hinged doors and windows.
  • Min/Max Gap:3mm to 5.5mm.
  • Fixing: Aggressive self adhesive backing tape on both sides of the carrier. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
  • Seal: Black or white co-extruded rigid and flexible flame retardant PVC.
  • Cert. GVYI.R37913.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • Fire AUS/NZ:Approved Document E. Rated to BS EN ISO 717-1.
  • UK/EU:Approved Document B. (Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22).
  • FRL & FRR-/240/30 and FD240.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.
$71.21
$71.21 $71.21
Save 0
Sold out
Tax included.

Delivery Time:

Downloads:

Brochure
