Raven RP121
  • Specification
  • Downloads

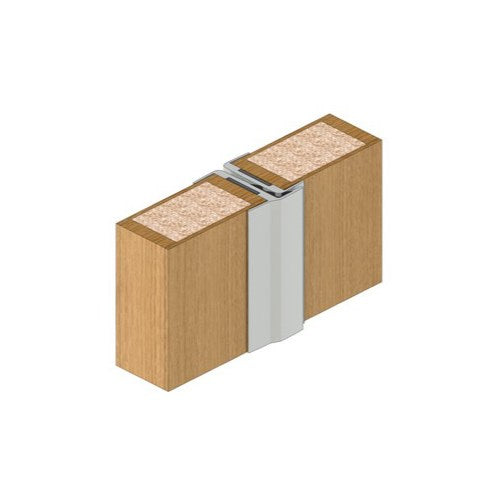

An effective fire, smoke and acoustic seal designed for single action fire doors. The RP121 is a twin section bullnose T bar aluminium astragal seal with an intumescent infill and smoke seal.

  • Location: Meeting stiles of pairs of 47mm nominal thickness single action fire doors.
  • Min/Max Gap:13mm to 16mm (prior to installation).
  • Finish: Satin clear (silver) anodised aluminium (15µm).
  • Fixing:Screw fix. Zinc plated, cross recess head CSK S.T. screws supplied.
  • Seal:Concealed intumescent infill and RP124 smoke seal.
  • Sizes: Available in stock lengths.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP121 Intumescent Seal Seal Twin 2135mm

SKU WSRP121.2135.CA

In stock, within 1 week


Clear Anodised
2135mm2440mm3050mm3500mm

Total Price

$235.72
