Raven RP124
  • Specification
  • Downloads

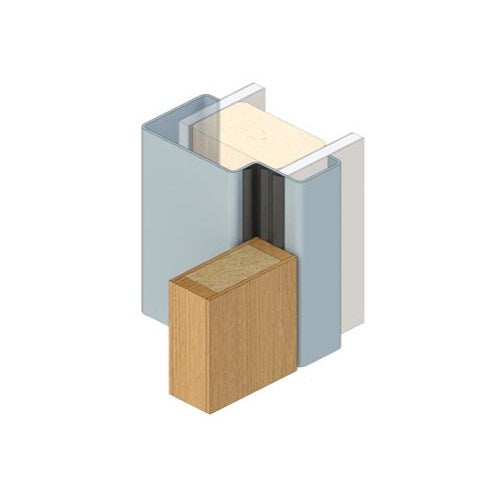

The RP124 is the Delta Seal Plus™, a rigid and flexible co-polymer acoustic smoke seal with multiple fins and quick and easy self adhesive installation. The RP124 is located in the protected corners of rebated timber or steel frame doors and is suitable for new and retrofit applications. Can be used in conjunction with Raven door bottom seals and astragals and threshold plates.

  • Location:Around rebated frames of single and double butt hinged doors.
  • Min/Max Gap:3mm to 5.5mm
  • Finish: Satin clear (silver) or bronze anodised aluminium (25µm) threshold plate.
  • Fixing: Aggressive self adhesive backing tape on both sides of the carrier. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
  • Seal:Black co-extruded rigid and flexible flame retardant PVC.
  • Sizes: Available in door set sizes.
  • Cert. GVYI.R37913.
  • Acoustic AUS/NZ:NCC Spec. F5.5
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/120/30 and FD120.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP124 Perimeter Seal 3000mm

SKU WSRP124.3000.BK

In stock, within 1 week


Black
3000mmDouble Door Set - Sides 2100mm, Top 2100mmLong Double Door Set - Sides 2100mm, Top 2750mmLong Single Door Set - Sides 2750mm, Top 1000mmSingle Door Set - Sides 2100mm, Top 1000mm

Total Price

$97.02
