An adjustable, automatic door bottom
seal that is spring loaded to lift clear
of the floor when the door is opened.
Acoustically designed, featuring
extruded silicon gaskets for medium
temperature smoke applications.
RP126Si is operated automatically by
pressure on the door jamb or stop by
its adjustable strike. It is self levelling.
-

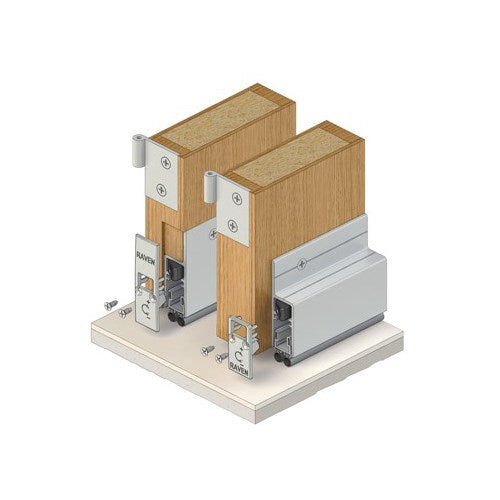

Location:Face mounted or semi-morticed into the bottom of single
and double solid core butt hinged
doors. Minimum door thickness
of 35mm recommended for semi
morticed installations with plain
meeting stiles. Minimum door
thickness of 40mm recommended
for semi-morticed installation with
rebated meeting stiles. RP126Si can
also be face mounted to the bottom
of metal doors.
-
Min/Max Gap: 3mm to 14mm.
-
Finish: Satin clear (silver) anodised
aluminium (15µm) or paint at extra
cost.
-
Fixing: Screw fix. Colour matched
escutcheon plates and zinc plated,
cross recess head S.T. screws
supplied.
-
Seal:RP3126Si. Black silicon rubber (SE).
-
Sizes: 1500mm, 1220mm, 1070mm,
920mm, 820mm, 600mm to 305mm
(min). Seals cut back to exact size.
- Cert. GVYI.R37913
-
Acoustic AUS/NZ:NCC Spec. F5.5
-
UK/EU:Approved Document E. Rated
to BS EN ISO 717-1.
-
Fire AUS/NZ: NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU:Approved Document B.
BS EN 1634-1.
- FRL & FRR-/240/30.
- Gasket flammability index 1 when
tested to AS1530.2.
-
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
-
DurabilityTested to over 1,000,000
operating cycles without failure.
RAVEN RP126Si Screw Bag/Esc Plate Set CA
SKU WSRP126Si.A126SICP1.CA
